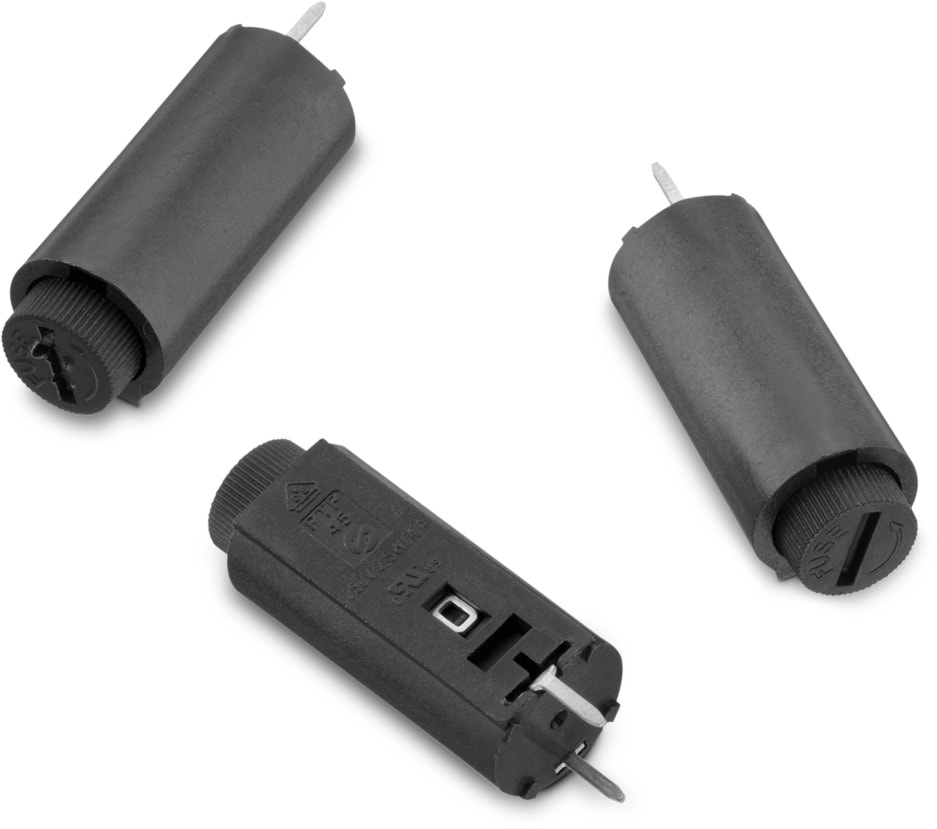

WR-FSH Shocksafe Fuseholder - PCB - Turn and Lock Cover - THT

General Information
Operating Temperature	-30 °C up to +120 °C

Material Properties
Insulator Material	PA66; PA66G25
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Contact Type	Stamped
Spring Material	INOX Steel

Electrical Properties
I_R	20 A
I_R[VDE]	10 A
Working Voltage	250 V (AC)
Working Voltage [UL]	250 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [UL]	1500 V (AC)
Withstanding Voltage [VDE]	3000 V (AC)
Contact Resistance	10 mΩ
R_C	10 mΩ

Mechanical Properties
Protection Class	II
Fuse Size	5x20 mm

Certification
cULus Approval	E157417
VDE Approval	120170

Packaging Properties
Packaging	Box

Products

Order Code	Datasheet	Downloads	Status	I_R (A)	I_R[VDE] (A)	Type	Design Kit	Samples
696309001002	SPEC	7 files EDA models: Components ZIP ALT 696309001002 (rev16a).IntLib \| 1.7 MB ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev25a).zip \| 7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696309001002 (rev1).pdf \| 119.8 KB IGS 696309001002 (rev1).igs \| 2 MB STP 696309001002 (rev1).stp \| 1.1 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	10	Vertical	612690 696001
696310001002	SPEC	7 files EDA models: Components ZIP ALT 696310001002 (rev16a).IntLib \| 1.7 MB ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev25a).zip \| 7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696310001002 (rev1).pdf \| 120.4 KB IGS 696310001002 (rev1).igs \| 2 MB STP 696310001002 (rev1).stp \| 1.1 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	10	Horizontal	696001

Order Code	Datasheet
696309001002	SPEC
696310001002	SPEC

Samples

Order Code	Datasheet	Downloads	Status	I_R (A)	I_R[VDE] (A)	Type	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-FSH Fuseholder
