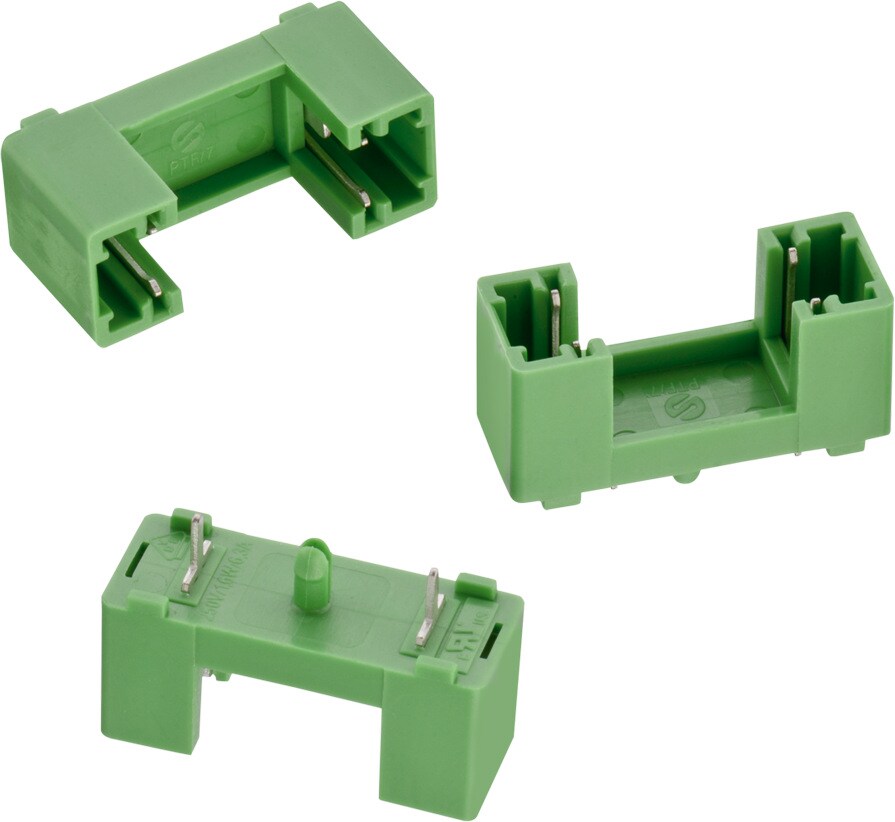

WR-FSH Fuseholder THT Blocks PCB Clip Cover

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	RoHS

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Contact Type	Stamped

Electrical Properties
I_{R UL}	20 A
I_{R VDE}	6.3 A
Working Voltage	250 V (AC)
Working Voltage [UL]	250 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [UL]	1500 V (AC)
Withstanding Voltage [cULus]	1500 V (AC)
Withstanding Voltage [VDE]	1500 V (AC)
Contact Resistance	10 mΩ
Contact Resistance [VDE]	10 mΩ

Mechanical Properties
Protection Class	I & II
Fuse Size	5x20 mm

Certification
cULus Approval	E157417
VDE Approval	129302

Packaging Properties
Packaging	Box

Products

Order Code	Datasheet	Downloads	Description	I_{R UL} (A)	I_{R VDE} (A)	Design Kit	Samples
696105003002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev20a).zip \| 7.7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696105003002 (rev1).pdf \| 160 KB IGS 696105003002 (rev1).igs \| 2.6 MB STP 696105003002 (rev1).stp \| 1.5 MB Download all 7 files as zip archive ZIP	15mm pitch - with polarization peg	20	6.3	612690 696001
696106003002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev20a).zip \| 7.7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696106003002 (rev1).pdf \| 149.3 KB IGS 696106003002 (rev1).igs \| 2.4 MB STP 696106003002 (rev1).stp \| 1.4 MB Download all 7 files as zip archive ZIP	15mm pitch - without polarization peg	20	6.3	696001
696107003002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev20a).zip \| 7.7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696107003002 (rev1).pdf \| 154.6 KB IGS 696107003002 (rev1).igs \| 2.4 MB STP 696107003002 (rev1).stp \| 1.4 MB Download all 7 files as zip archive ZIP	22,6mm pitch - with polarization peg	20	6.3	696001
696108003002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev20a).zip \| 7.7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696108003002 (rev1).pdf \| 138.5 KB IGS 696108003002 (rev1).igs \| 2.3 MB STP 696108003002 (rev1).stp \| 1.3 MB Download all 7 files as zip archive ZIP	22,6mm pitch - without polarization peg	20	6.3	696001

Order Code	Datasheet
696105003002	SPEC
696106003002	SPEC
696107003002	SPEC
696108003002	SPEC

Samples

Order Code	Datasheet	Downloads	Description	I_{R UL} (A)	I_{R VDE} (A)	Design Kit	Samples

Use with

WR-FSH Accessories - PCB - Clip cover - THT

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-FSH Fuseholder
