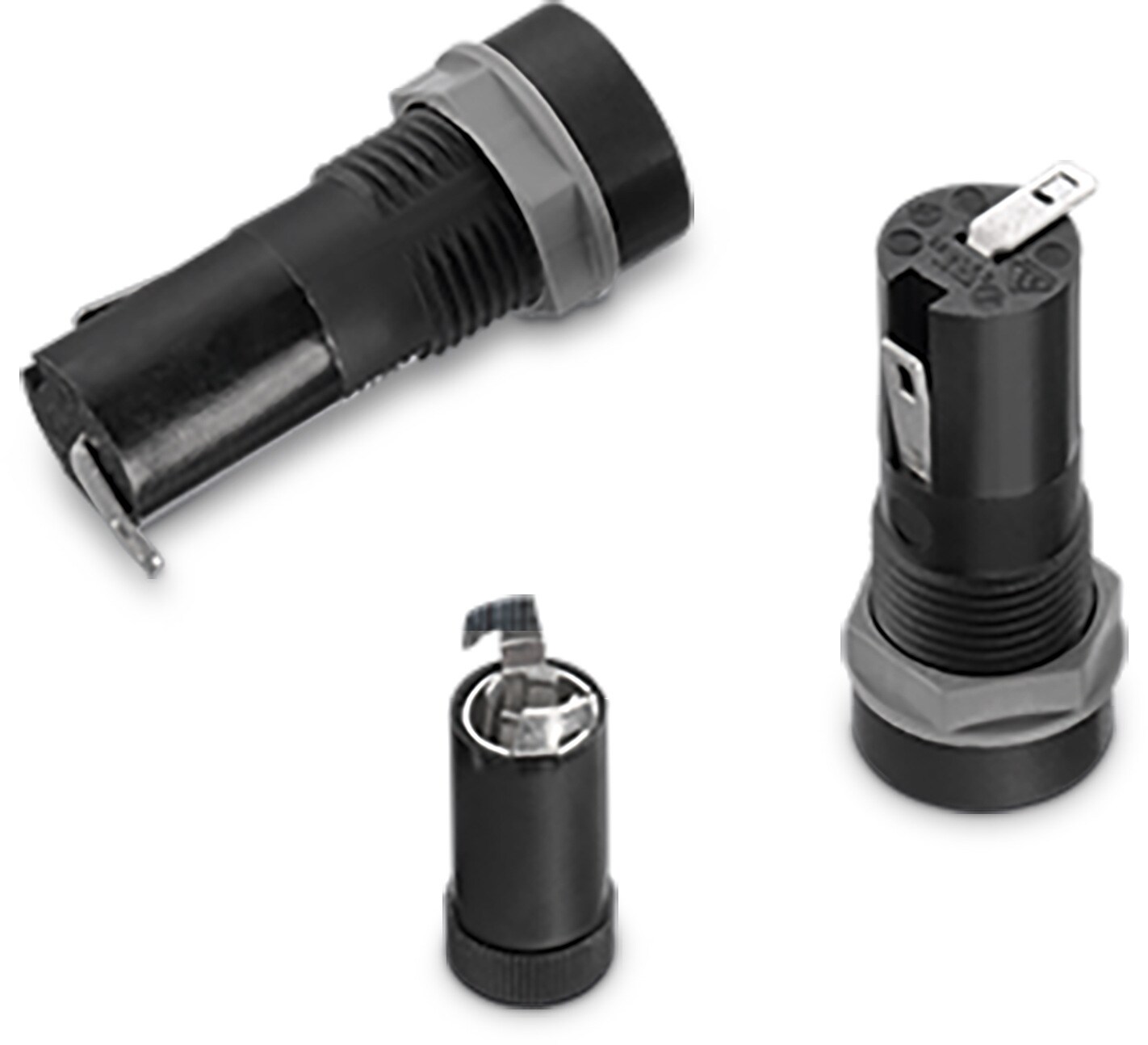

WR-FSH Shocksafe Fuseholder - Panel - Screw and Lock Cover
| General Information | |
|---|---|
| Operating Temperature | -30 °C up to +120 °C |
| Compliance | RoHS |
| Material Properties | |
|---|---|
| Insulator Material | PA66 |
| Insulator Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Tin over Nickel |
| Spring Material | INOX Steel |
| Electrical Properties | |
|---|---|
| IR | 20 A |
| IR[VDE] | 10 A |
| Working Voltage | 250 V (AC) |
| Working Voltage [UL] | 250 V (AC) |
| Working Voltage [VDE] | 250 V (AC) |
| Withstanding Voltage [UL] | 1500 V (AC) |
| Withstanding Voltage [cULus] | 3 V (AC) |
| Withstanding Voltage [VDE] | 3000 V (AC) |
| Contact Resistance | 10 mΩ |
| RC | 10 mΩ |
| Mechanical Properties | |
|---|---|
| Protection Class | I & II |
| Fuse Size | 5x20 mm |
| Certification | |
|---|---|
| cULus Approval | E157417 |
| VDE Approval | 133367 |
| Packaging Properties | |
|---|---|
| Packaging | Box |
Products
Filter by
show in
article in 0 product lines
Reset allOrder Code | Datasheet | Downloads | Status | IR(A) | IR[VDE](A) | Design Kit | Samples |
|---|---|---|---|---|---|---|---|
696212001002 | 20 A, 10 A | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Rated Current [UL]20 A | Rated Current [VDE]10 A | Design Kit |
