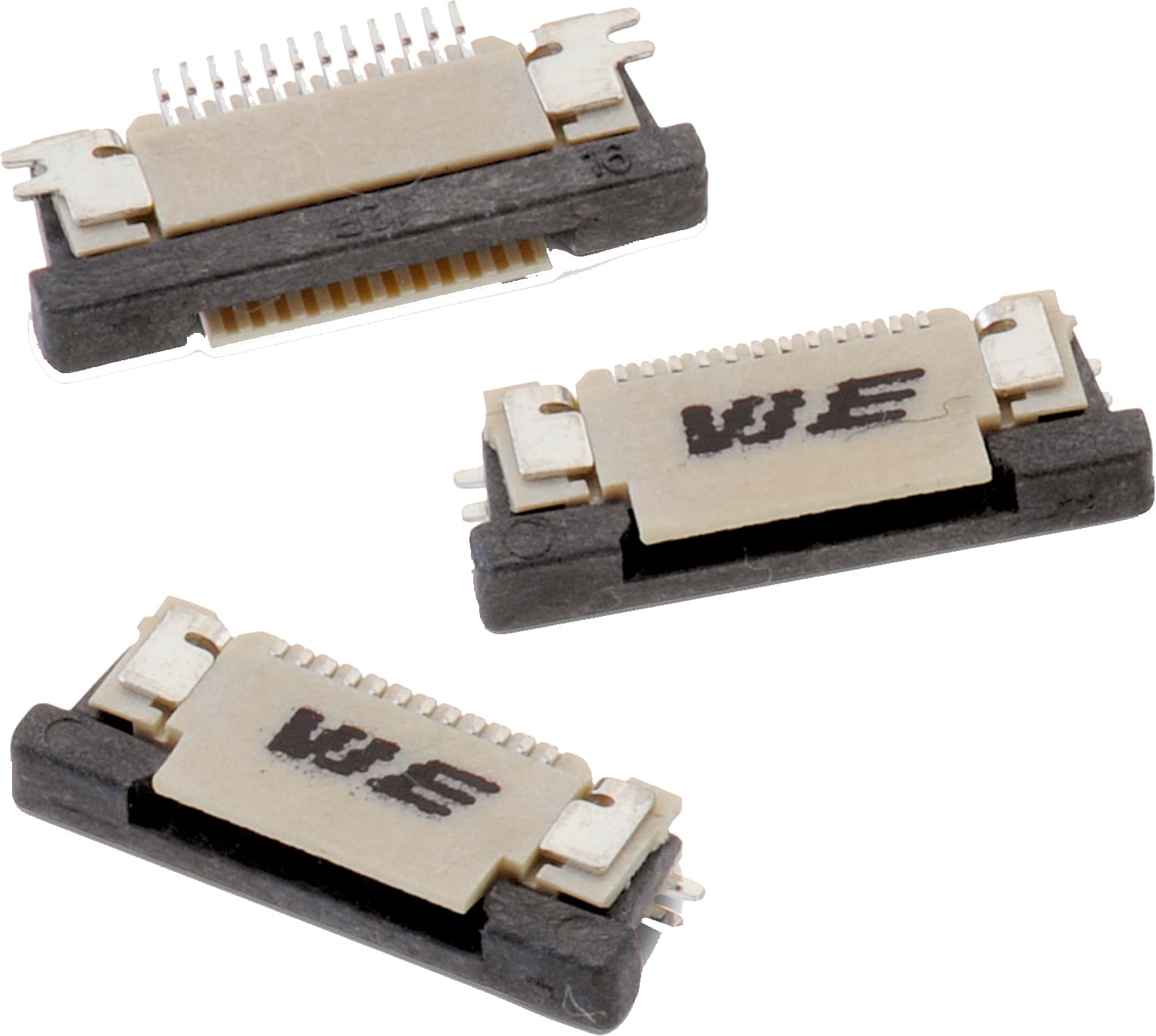

| Kind Properties | |
|---|---|
| Pitch | 0.5 mm |
| Material Properties | |
|---|---|
| Insulator Material | LCP |
| Contact Material | Phosphor Bronze |
| Contact Plating | 100 (µ") Tin over 50 (µ") Nickel |
| Contact Type | Stamped |
| Solder Tabs | Brass |
Products
| Order Code | SPEC | Downloads | Pins | Pitch
(mm) |
Type | L
(mm) |
IR
(A) |
Working Voltage
(V (AC)) |
Packaging | Contact Resistance
(mΩ) |
Tol. R | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 68710614022 |
|
STE 3D ALT EAG PRE IGS CAD | 6 | 0.5 | Horizontal | 9.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68710814022 |
|
STE 3D ALT EAG PRE IGS CAD | 8 | 0.5 | Horizontal | 10.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68711014022 |
|
STE 3D ALT EAG PRE IGS CAD | 10 | 0.5 | Horizontal | 11.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68711214022 |
|
STE 3D ALT EAG PRE IGS CAD | 12 | 0.5 | Horizontal | 12.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68711414022 |
|
STE 3D ALT EAG PRE IGS CAD | 14 | 0.5 | Horizontal | 13.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68711614022 |
|
STE 3D ALT EAG PRE IGS CAD | 16 | 0.5 | Horizontal | 14.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68711814022 |
|
STE 3D ALT EAG PRE IGS CAD | 18 | 0.5 | Horizontal | 15.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68712014022 |
|
STE 3D ALT EAG PRE IGS CAD | 20 | 0.5 | Horizontal | 16.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
612690
687001 |
|
| 68712214022 |
|
STE 3D ALT EAG PRE IGS CAD | 22 | 0.5 | Horizontal | 17.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68712414022 |
|
STE 3D ALT EAG PRE IGS CAD | 24 | 0.5 | Horizontal | 18.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68712514022 |
|
STE 3D ALT EAG PRE IGS CAD | 25 | 0.5 | Horizontal | 18.9 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68712614022 |
|
STE 3D ALT EAG PRE IGS CAD | 26 | 0.5 | Horizontal | 19.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68712814022 |
|
STE 3D ALT EAG PRE IGS CAD | 28 | 0.5 | Horizontal | 20.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68713014022 |
|
STE 3D ALT EAG PRE IGS CAD | 30 | 0.5 | Horizontal | 21.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68713214022 |
|
STE 3D ALT EAG PRE IGS CAD | 32 | 0.5 | Horizontal | 22.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68713314022 |
|
STE 3D ALT EAG PRE IGS CAD | 33 | 0.5 | Horizontal | 22.9 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68713414022 |
|
STE 3D ALT EAG PRE IGS CAD | 34 | 0.5 | Horizontal | 23.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68713514022 |
|
STE 3D ALT EAG PRE IGS CAD | 35 | 0.5 | Horizontal | 23.9 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68713614022 |
|
STE 3D ALT EAG PRE IGS CAD | 36 | 0.5 | Horizontal | 24.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68714014022 |
|
STE 3D ALT EAG PRE IGS CAD | 40 | 0.5 | Horizontal | 26.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68714414022 |
|
STE 3D ALT EAG PRE IGS CAD | 44 | 0.5 | Horizontal | 28.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68714514022 |
|
STE 3D ALT EAG PRE IGS CAD | 45 | 0.5 | Horizontal | 28.9 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
|
| 68715014022 |
|
STE 3D ALT EAG PRE IGS CAD | 50 | 0.5 | Horizontal | 31.4 | 0.5 | 50 | Tape and Reel | 20 | max. |
687001
|
| Samples |
|---|
| Order Code | SPEC | Downloads | Pins | Pitch
(mm) |
Type | L
(mm) |
IR
(A) |
Working Voltage
(V (AC)) |
Packaging | Contact Resistance
(mΩ) |
Tol. R | Design Kit | Samples |
|---|
