OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyInput/Output Connectors Product sub-familyWR-DSUB Connectors OrientationCable GenderMale Product seriesWR-DSUB Male Crimp Contact

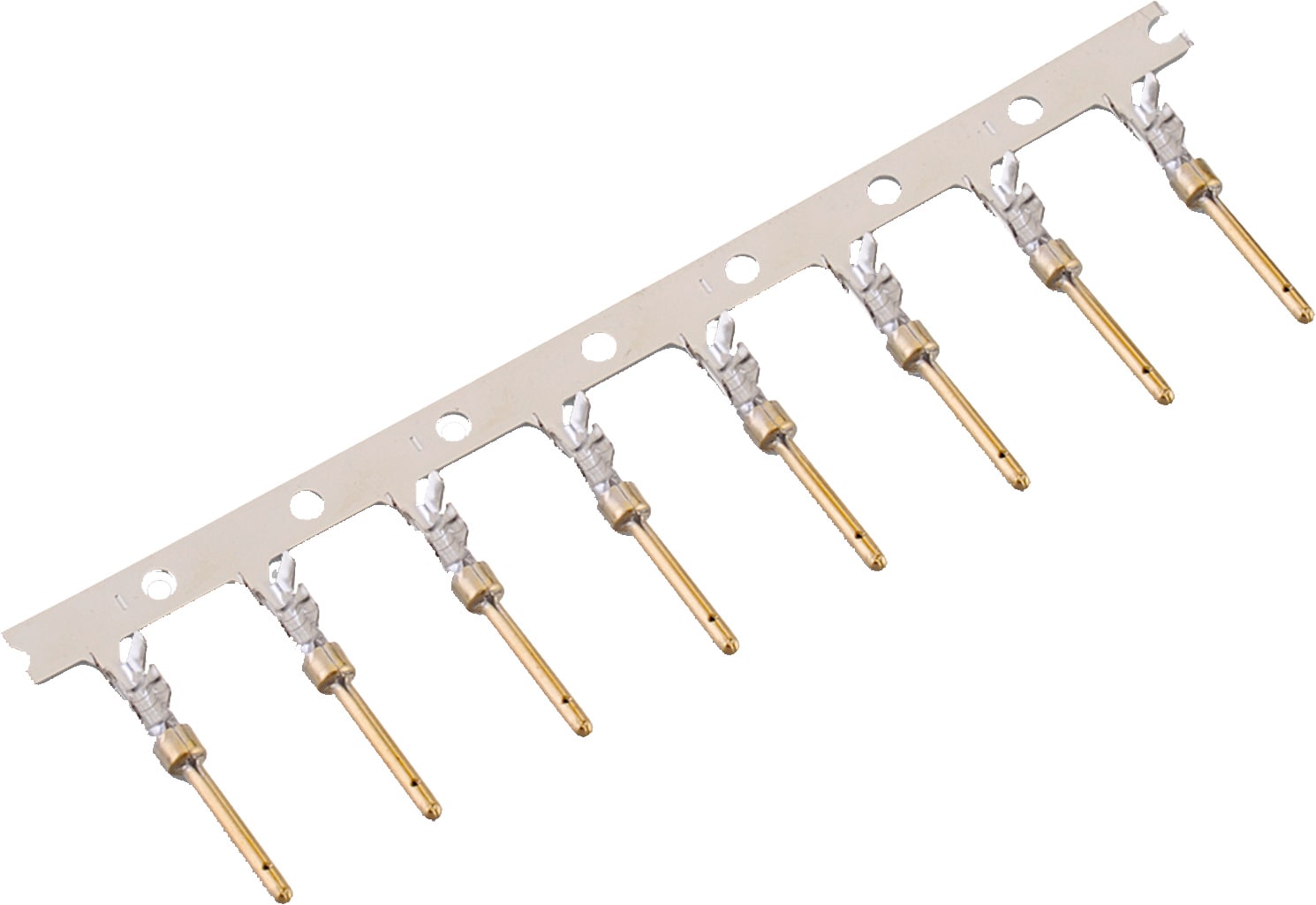

WR-DSUB Male Crimp Contact

General Information
Operating Temperature	-55 °C up to +105 °C
Compliance	RoHS
Quality Class	50 Mating cycles
Gender	Male
Type	Terminal/Contact
Insulator Flammability Rating	UL94 V-0
Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped

Electrical Properties
I_R	3 A
Working Voltage	250 V (AC)
Contact Resistance	50 mΩ

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Products

Order Code	Datasheet	Downloads	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Samples
61800413722	SPEC	6 files CAD files ZIP 3D 618x0413722_1 (rev1).pdf \| 371 KB IGS 618x0413722 (rev1).iges \| 2.7 MB IGS 61800413722 (rev1).igs \| 1.5 MB STP 618x0413722 (rev1).stp \| 928.8 KB Download all 6 files as zip archive ZIP	Male	20 to 22 (AWG)	0.518 to 0.326 (mm²)	Big Reel	5000
61800513722	SPEC	6 files CAD files ZIP 3D 618x0513722_1 (rev1).pdf \| 371 KB IGS 618x0513722 (rev1).iges \| 2.7 MB IGS 61800513722 (rev1).igs \| 1.5 MB STP 618x0513722 (rev1).stp \| 928.8 KB Download all 6 files as zip archive ZIP	Male	26 to 24 (AWG)	0.129 to 0.205 (mm²)	Big Reel	5000
61800413722DEC	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 190.9 KB IGS Download_IGES (rev1).iges \| 1.2 MB STP Download_STP (rev1).stp \| 428.2 KB Download all 3 files as zip archive ZIP	Male	22 to 20 (AWG)	0.518 to 0.326 (mm²)	Bag	100
61800513722DEC	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 190.9 KB IGS Download_IGES (rev1).iges \| 1.2 MB STP Download_STP (rev1).stp \| 428.2 KB Download all 3 files as zip archive ZIP	Male	26 to 24 (AWG)	0.129 to 0.205 (mm²)	Bag	100
61810413722	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 371 KB IGS Download_IGES (rev1).iges \| 2.7 MB STP Download_STP (rev1).stp \| 928.8 KB Download all 3 files as zip archive ZIP	Male	22 to 20 (AWG)	0.518 to 0.326 (mm²)	Small Reel	500
61810513722	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 371 KB IGS Download_IGES (rev1).iges \| 2.7 MB STP Download_STP (rev1).stp \| 928.8 KB Download all 3 files as zip archive ZIP	Male	26 to 24 (AWG)	0.129 to 0.205 (mm²)	Small Reel	500

Order Code	Datasheet
61800413722	SPEC
61800513722	SPEC
61800413722DEC	SPEC
61800513722DEC	SPEC
61810413722	SPEC
61810513722	SPEC

Samples
