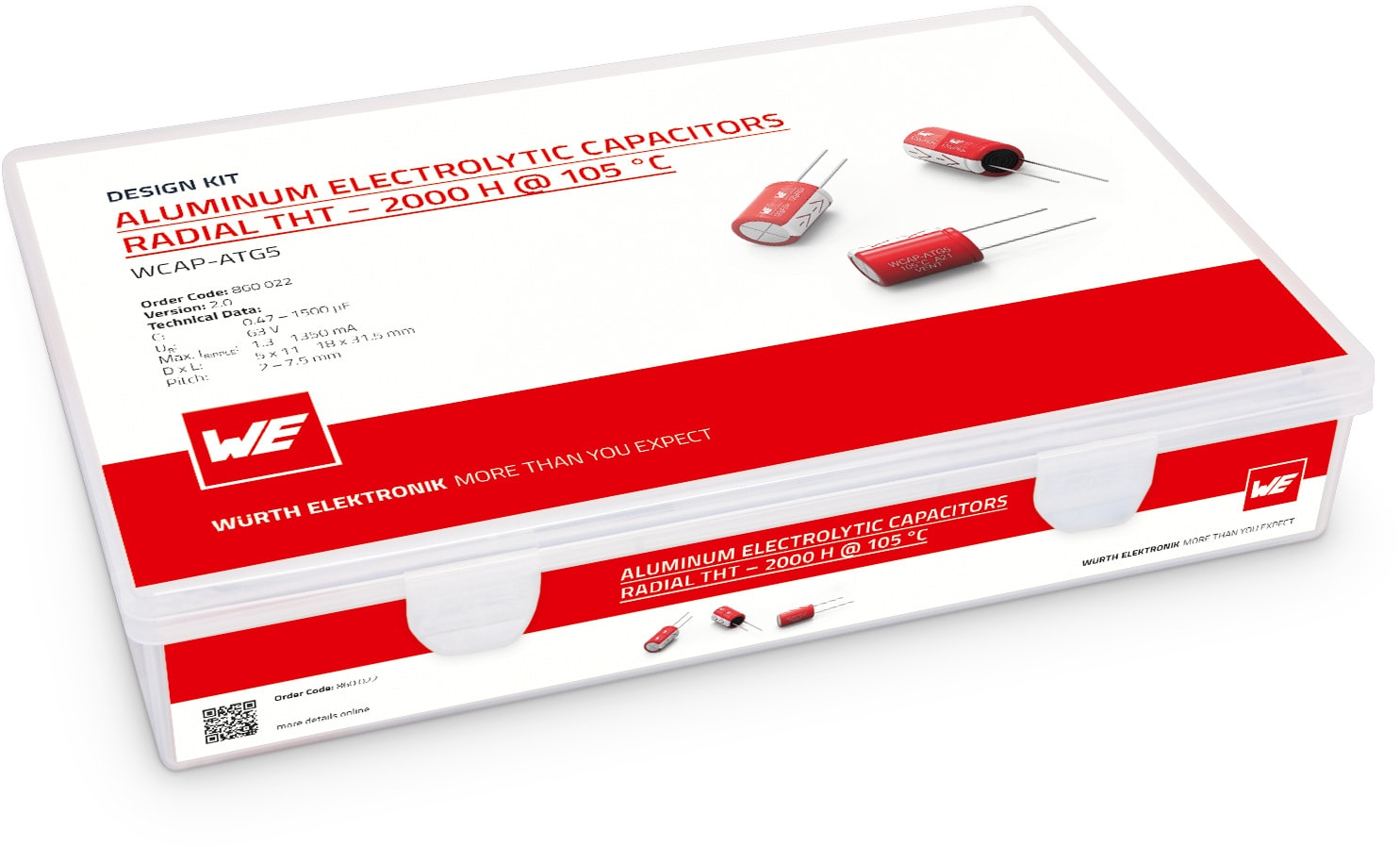

Design Kit WCAP-ATG5 Aluminium Electrolytic Capacitors

General Purpose +105 °C Order Code 860022

Applications

  • Filtering
  • Smoothing
  • Energy storage
  • Coupling
  • e.g. Switched-mode power supply, AC/DC converter, adapter, charger, digital camera

Products

Order Code Data­sheet Simu­lation Downloads Product seriesCVR
(V (DC))
IRIPPLE
(mA)
Ø D
(mm)
L
(mm)
Pitch
(mm)
Technical Reference Samples
860020772001SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors0.1 µF 63 1.3 5 11 2 ATDC110R10M063DSPA3B000
860020772002SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors0.22 µF 63 2.9 5 11 2 ATDC110R22M063DSPA3B000
860020772003SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors0.33 µF 63 4.5 5 11 2 ATDC110R33M063DSPA3B000
860020772004SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors0.47 µF 63 7 5 11 2 ATDC110R47M063DSPA3B000
860020772005SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors1 µF 63 13 5 11 2 ATDC110010M063DSPA3B000
860020772006SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors2.2 µF 63 20 5 11 2 ATDC1102R2M063DSPA3B000
860020772007SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors3.3 µF 63 28 5 11 2 ATDC1103R3M063DSPA3B000
860020772008SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors4.7 µF 63 32 5 11 2 ATDC1104R7M063DSPA3B000
860020772009SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors6.8 µF 63 40 5 11 2 ATDC1106R8M063DSPA3B000
860020772010SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors10 µF 63 42 5 11 2 ATDC110100M063DSPA3B000
860020773011SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors22 µF 63 82 6.3 11 2.5 ATDD110220M063DSPA4B000
860020773012SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors33 µF 63 100 6.3 11 2.5 ATDD110330M063DSPA4B000
860020773013SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors47 µF 63 125 6.3 11 2.5 ATDD110470M063DSPA4B000
860020774014SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors68 µF 63 155 8 11.5 3.5 ATDE115680M063DSPA7B000
860020775015SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors100 µF 63 230 10 12.5 5 ATDF125101M063DSPA9B000
860020775016SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors120 µF 63 255 10 16 5 ATDF160121M063DSPAAB000
860020775017SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors150 µF 63 270 10 16 5 ATDF160151M063DSPAAB000
860020775018SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors180 µF 63 310 10 16 5 ATDF160181M063DSPAAB000
860020775019SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors220 µF 63 375 10 16 5 ATDF160221M063DSPAAB000
860020778020SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors330 µF 63 580 13 20 5 ATDI200331M063DSPACB000
860020778021SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors470 µF 63 690 13 20 5 ATDI200471M063DSPACB000
860020778022SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors560 µF 63 770 13 25 5 ATDI250561M063DSPACB000
860020780023SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors680 µF 63 880 16 25 7.5 ATDK250681M063DSPAEB000
860020780024SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors820 µF 63 920 16 25 7.5 ATDK250821M063DSPAEB000
860020780025SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors1000 µF 63 1185 16 31.5 7.5 ATDK315102M063DSPADB000
860020780026SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors1200 µF 63 1200 16 35.5 7.5 ATDK355122M063DSPADB000
860020781027SPEC
6 files WCAP-ATG5 Aluminum Electrolytic Capacitors1500 µF 63 1350 18 31.5 7.5 ATDL315152M063DSPAEB000
