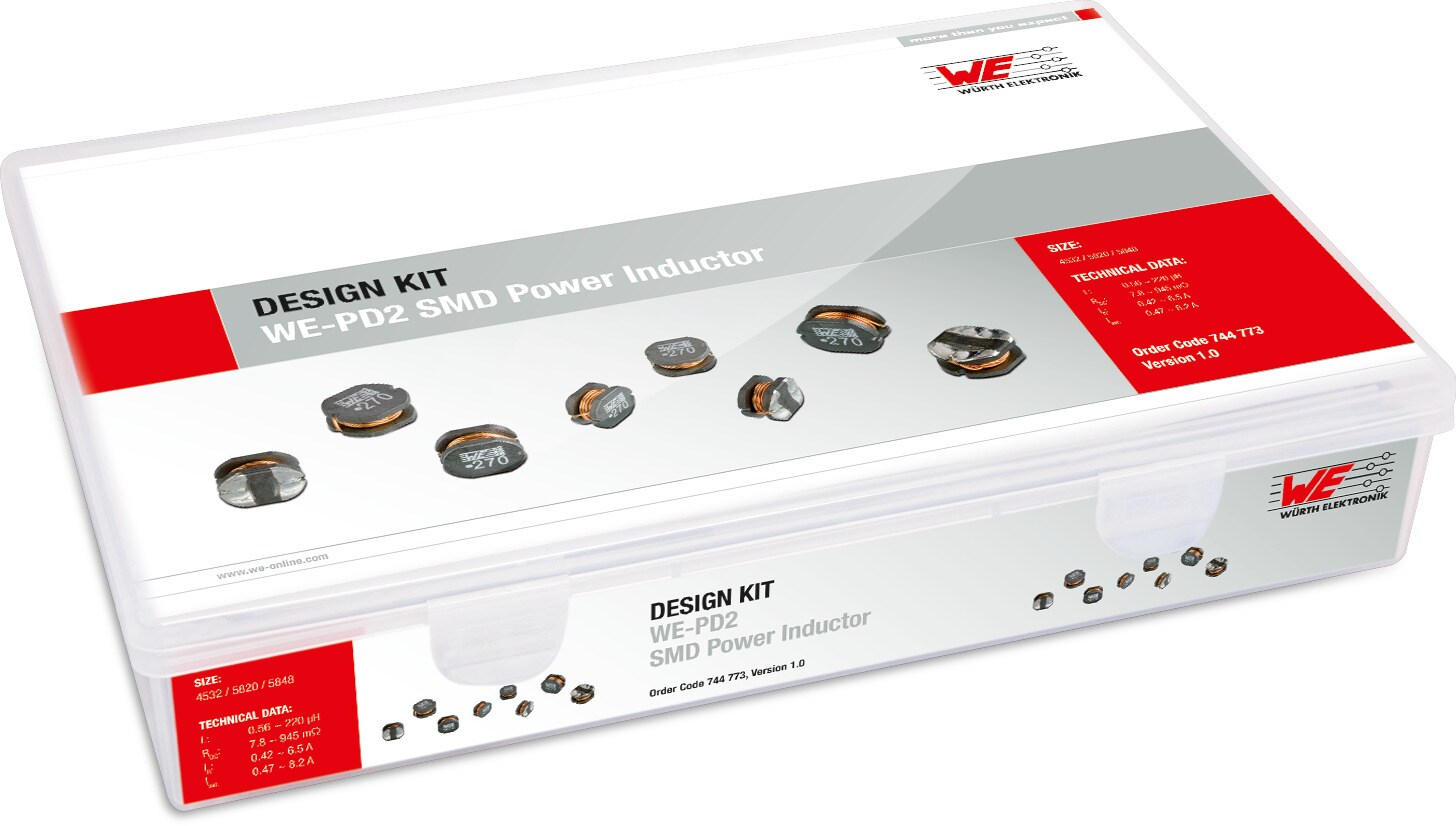

Design Kit WE-PD2 SMT Power Inductor - 4532/ 5820/ 5848

Order Code 744773

Products

Order Code Data­sheet Simu­lation Downloads Product series L
(µH)
IR
(A)
ISAT
(A)
RDC typ.
(Ω)
RDC max.
(Ω)
fres
(MHz)
Size Samples
7447730
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 1 4 5.72 0.014 0.049 110 4532
744773022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 2.2 2.5 3.38 0.034 0.071 85 4532
744774022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 2.2 4.6 8.2 0.026 0.041 54 5848
744773033
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 3.3 2 2.88 0.041 0.086 65 4532
744773047
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 4.7 1.82 2.46 0.059 0.11 50 4532
744774047
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 4.7 3 5.5 0.056 0.071 33 5848
744773068
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 6.8 1.54 2.1 0.076 0.131 41 4532
744774068
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 6.8 2.4 5 0.071 0.082 28 5848
74477310
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 10 1.45 1.74 0.118 0.182 37 4532
74477410
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 10 2.2 2.5 0.078 0.1 26 5848
744773115
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 15 1.2 1.46 0.204 0.235 26 4532
744774115
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 15 1.53 1.9 0.089 0.14 23 5848
744773122
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 22 1 1.22 0.261 0.37 20 4532
744774122
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 22 1.28 1.53 0.109 0.18 16 5848
744774127
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 27 1.19 1.4 0.133 0.2 15 5848
744773133
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 33 0.86 0.9 0.37 0.54 20 4532
744774133
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 33 1.09 1.17 0.15 0.23 14 5848
744773147
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 47 0.68 0.77 0.523 0.844 17 4532
744774147
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 47 0.86 1 0.26 0.37 11.5 5848
744773168
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 68 0.56 0.68 0.754 1.117 13 4532
744774168
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 68 0.64 0.86 0.313 0.46 10 5848
74477420
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 100 0.57 0.68 0.51 0.65 7.5 5848
744774215
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 150 0.46 0.54 0.72 1.1 6.5 5848
744774222
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-PD2 SMT Power Inductor 220 0.42 0.47 0.945 1.57 5 5848
