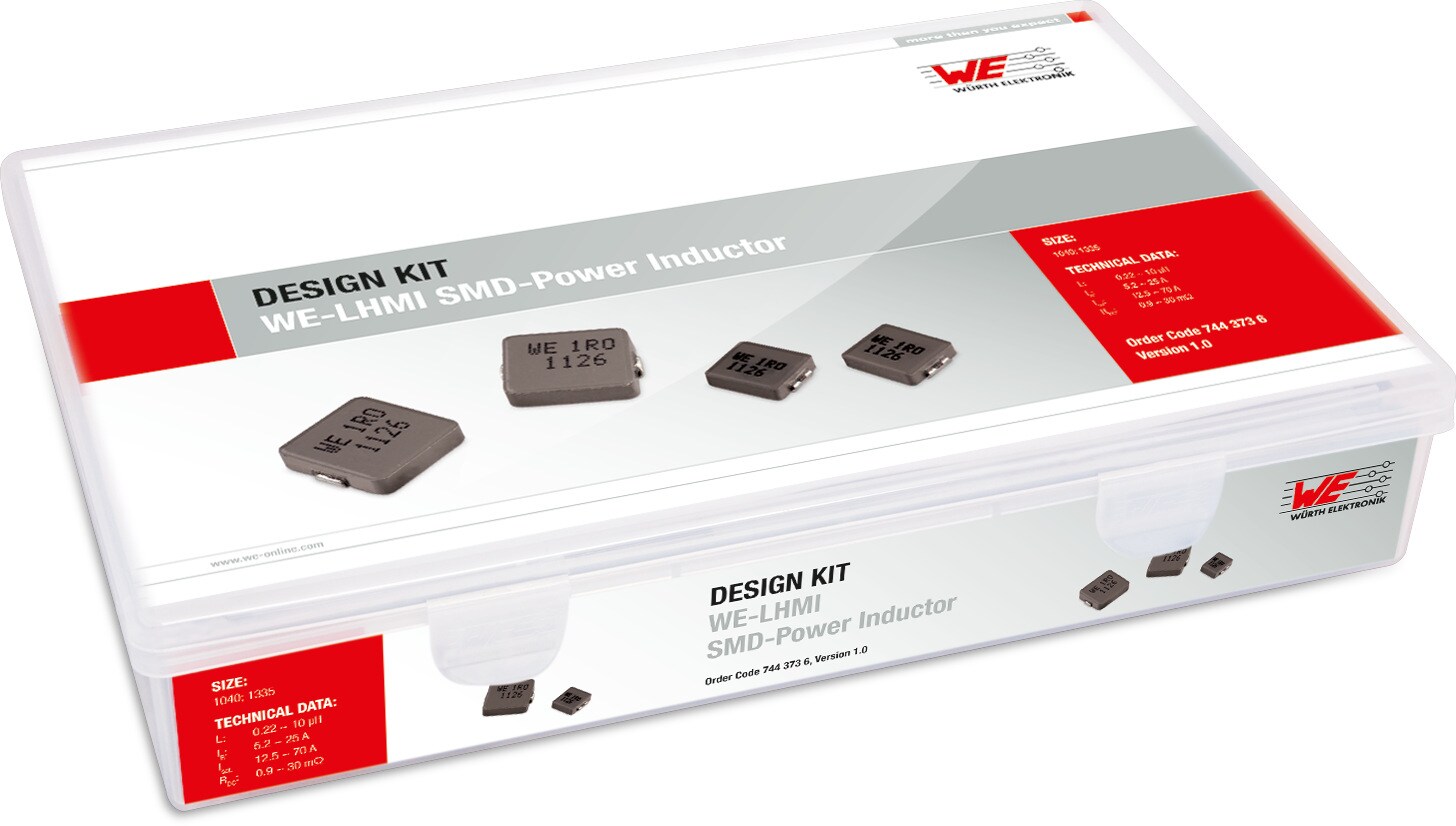

Design Kit WE-LHMI SMT Power Inductor - 1040/1335

Order Code 7443736

Products

Order Code SPEC Simu­lation Downloads Product series L1
(µH)
IR 1
(A)
ISAT 1
(A)
RDC1 typ
(mΩ)
RDC1 max.
(mΩ)
fres 1
(MHz)
Size Version Samples
744373680022
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.22 24 70 0.8 1 153 1040 SMT
744373770022
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.22 25 40 0.75 0.9 130 1335 SMT
744373770033
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.33 24 35 0.88 1.05 84 1335 SMT
744373680036
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.36 21 64 1.05 1.2 104 1040 SMT
744373680039
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.39 20.5 63 1.1 1.3 101 1040 SMT
744373680045
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.45 20 50 1.3 1.5 82 1040 SMT
744373770047
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.47 19 29 1.32 1.6 77 1335 SMT
744373490056
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.56 13 28 3.6 4.2 85 7050 SMT
744373680056
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.56 19 44 1.6 1.8 70 1040 SMT
744373770056
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.56 18.5 28 1.4 1.7 59 1335 SMT
744373680068
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.68 16 42 2.4 2.7 53 1040 SMT
744373770068
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 0.68 17.5 27 1.8 2.2 51 1335 SMT
74437368010
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 1 14.5 36 3 3.3 45 1040 SMT
74437377010
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 1 15 26 2.7 3.5 41 1335 SMT
74437377015
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 1.5 12.5 25.5 4.7 5.5 30 1335 SMT
74437368022
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 2.2 10 28 6.5 7 27 1040 SMT
74437377022
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 2.2 10 25 7.2 8 22 1335 SMT
74437368033
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 3.3 8 23 10.8 11.8 22 1040 SMT
74437377033
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 3.3 9.5 24.5 9 11 17 1335 SMT
74437368039
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 3.9 7.5 19.5 12.6 14.5 17 1040 SMT
74437368047
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 4.7 7 19 15 15.5 16 1040 SMT
74437377047
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 4.7 7.5 18 13 15 13 1335 SMT
74437368068
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 6.8 6 14 17.5 23.3 13 1040 SMT
74437368100
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 10 5.2 12.5 27 30 12 1040 SMT
74437368150
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 15 4.1 8.5 40 45 8 1040 SMT
74437368220
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 22 3.5 8 64 74 7 1040 SMT
74437368330
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 33 2.6 5 92 112 6 1040 SMT
74437368470
STE ALT EAG CAD LTS PSP SPE CAD WE-LHMI SMT Power Inductor 47 2.2 4.5 145 167 5 1040 SMT
