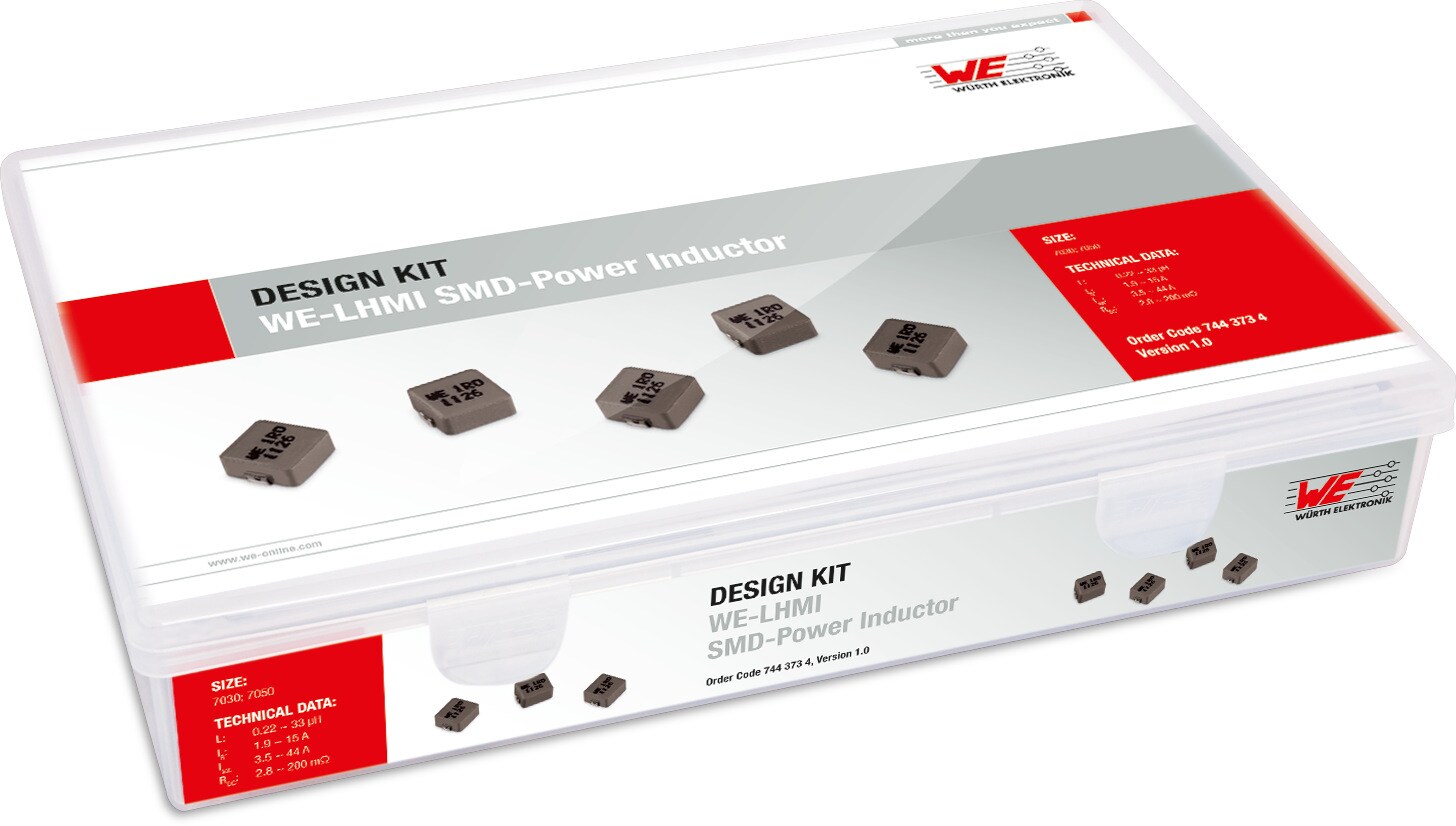

Design Kit WE-LHMI SMT Power Inductor - 7030/7050

Order Code 7443734

Products

Order Code SPEC Simu­lation Downloads Product series L1
(µH)
IR 1
(A)
ISAT 1
(A)
RDC1 typ
(mΩ)
RDC1 max.
(mΩ)
fres 1
(MHz)
Size Version Samples
744373460022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 0.22 15 44 2.1 2.8 149 7030 SMT
744373460033
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 0.33 13 38 3.5 3.9 124 7030 SMT
744373460047
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 0.47 11.5 31 4 4.2 91 7030 SMT
744373490047
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 0.47 13.5 30 3.5 3.9 96 7050 SMT
744373460068
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 0.68 11 25 4.8 5.5 72 7030 SMT
744373490068
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 0.68 12 26 4 4.5 73 7050 SMT
744373460082
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 0.82 9 24 6.7 8 60 7030
744373490082
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 0.82 11.25 25 4.6 4.9 70 7050 SMT
74437346010
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 1 8 22 8.3 10 54 7030
74437349010
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 1 10 19.5 6.1 6.5 51 7050 SMT
74437349012
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 1.2 9 18 7.2 7.5 45 7050 SMT
74437346015
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 1.5 7.2 19 13 15 45 7030
74437349015
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 1.5 8 14.5 8.6 9 35 7050 SMT
74437346022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 2.2 6.5 15 18 20 32 7030
74437349022
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 2.2 7.5 14 11.2 12 30 7050 SMT
74437346033
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 3.3 5 13.5 28 30 27 7030
74437349033
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 3.3 6 12 19 20.9 26 7050 SMT
74437346047
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 4.7 3.8 12 37 40 22 7030
74437349047
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 4.7 5 11 28 30.8 24 7050 SMT
74437346056
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 5.6 3.6 9 43 48 20 7030
74437349056
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 5.6 3.75 10.5 44 49 17 7050 SMT
74437346068
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 6.8 3.4 8 54 60 18 7030
74437349068
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 6.8 3.5 9.5 46 51.5 16 7050 SMT
74437346082
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 8.2 3.25 7.5 64 68 17 7030
74437349082
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 8.2 3.3 9 56 63 15 7050 SMT
74437346100
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 10 3 7.3 75 85 15 7030
74437349100
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 10 3.2 8 65 69 12 7050 SMT
74437349150
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 15 2.75 5.5 81 92 10 7050 SMT
74437346220
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 22 1.9 4.5 165 190 10 7030
74437349220
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 22 2.1 6.5 140 170 8 7050 SMT
74437349330
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 33 1.9 3.5 173 200 7.5 7050 SMT
74437349470
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 47 1.45 2.45 290 330 7.3 7050 SMT
74437349560
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 56 1.4 2 342 396 6 7050 SMT
74437349680
STE ALT EAG CAD LTS PSP SPE IGS CAD WE-LHMI SMT Power Inductor 68 1.25 2.5 386 445 3.5 7050 SMT
