Order Code	Downloads	Product series	L₁ (µH)	I_{R 1} (A)	I_{SAT 1} (A)	R_{DC1 typ} (mΩ)	R_{DC1 max.} (mΩ)	f_{res 1} (MHz)	Size	Version
744373210010	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	0.1	8.1	24	4.3	5.5	365	4012	SMT
744373240010	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	0.1	12	30	3.2	4	323	4020	SMT
744373210022	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	0.22	7.7	17	6.6	8	230	4012	SMT
744373240022	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	0.22	9.5	17	6.6	7.3	195	4020	SMT
744373240033	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	0.33	8	16.5	7.8	8.6	143	4020	SMT
744373210047	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	0.47	5.9	9	18	20	120	4012	SMT
744373240047	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	0.47	6.8	14.5	11.2	14	122	4020	SMT
744373240056	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	0.56	6	10.5	13.5	16	104	4020	SMT
744373240068	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	0.68	5.5	10	16	19	90	4020	SMT
74437321010	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	1	4	7.5	41	47	90	4012	SMT
74437324010	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	1	5	9	22	27	89	4020	SMT
74437324012	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	1.2	4.7	8.5	25	30	71	4020	SMT
74437321015	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	1.5	3	4.4	55	63.3	60	4012	SMT
74437324015	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	1.5	3.8	8	34.8	42	64	4020	SMT
74437321022	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	2.2	2.5	4.2	69.2	80	55	4012	SMT
74437324022	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	2.2	3.25	6.5	51	61	49	4020	SMT
74437321033	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	3.3	2.3	3.9	84	97	40	4012	SMT
74437324033	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	3.3	2.5	4.2	69	76	40	4020	SMT
74437321047	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	4.7	1.9	3.1	128	145	34	4012	SMT
74437324047	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	4.7	2.2	4	95	105	31	4020	SMT
74437321056	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	5.6	1.7	2.7	180	208	28	4012	SMT
74437324056	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	5.6	2	3.8	120	125	30	4020	SMT
74437321068	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	6.8	1.4	2.65	300	360	25	4012	SMT
74437324068	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	6.8	1.75	3.5	150	172	29	4020	SMT
74437321082	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	8.2	1.3	2.4	313	376	24	4012	SMT
74437324082	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	8.2	1.6	2.8	158	180	22	4020	SMT
74437321100	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	10	1.2	2.2	410	463	23	4012	SMT
74437324100	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	10	1.5	2.4	215	243	23	4020	SMT
74437324150	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	15	1.2	2.1	325	374	17	4020	SMT
74437324220	ALT EAG CAD LTS PSP SPE CAD	WE-LHMI SMT Power Inductor	22	1	2	470	500	14	4020	SMT

Order Code	SPEC	Simulation
744373210010
744373240010
744373210022
744373240022
744373240033
744373210047
744373240047
744373240056
744373240068
74437321010
74437324010
74437324012
74437321015
74437324015
74437321022
74437324022
74437321033
74437324033
74437321047
74437324047
74437321056
74437324056
74437321068
74437324068
74437321082
74437324082
74437321100
74437324100
74437324150
74437324220

Samples

Order Code	SPEC	Simulation	Downloads	Product series	L₁ (µH)	I_{R 1} (A)	I_{SAT 1} (A)	R_{DC1 typ} (mΩ)	R_{DC1 max.} (mΩ)	f_{res 1} (MHz)	Size	Version	Samples

Cart

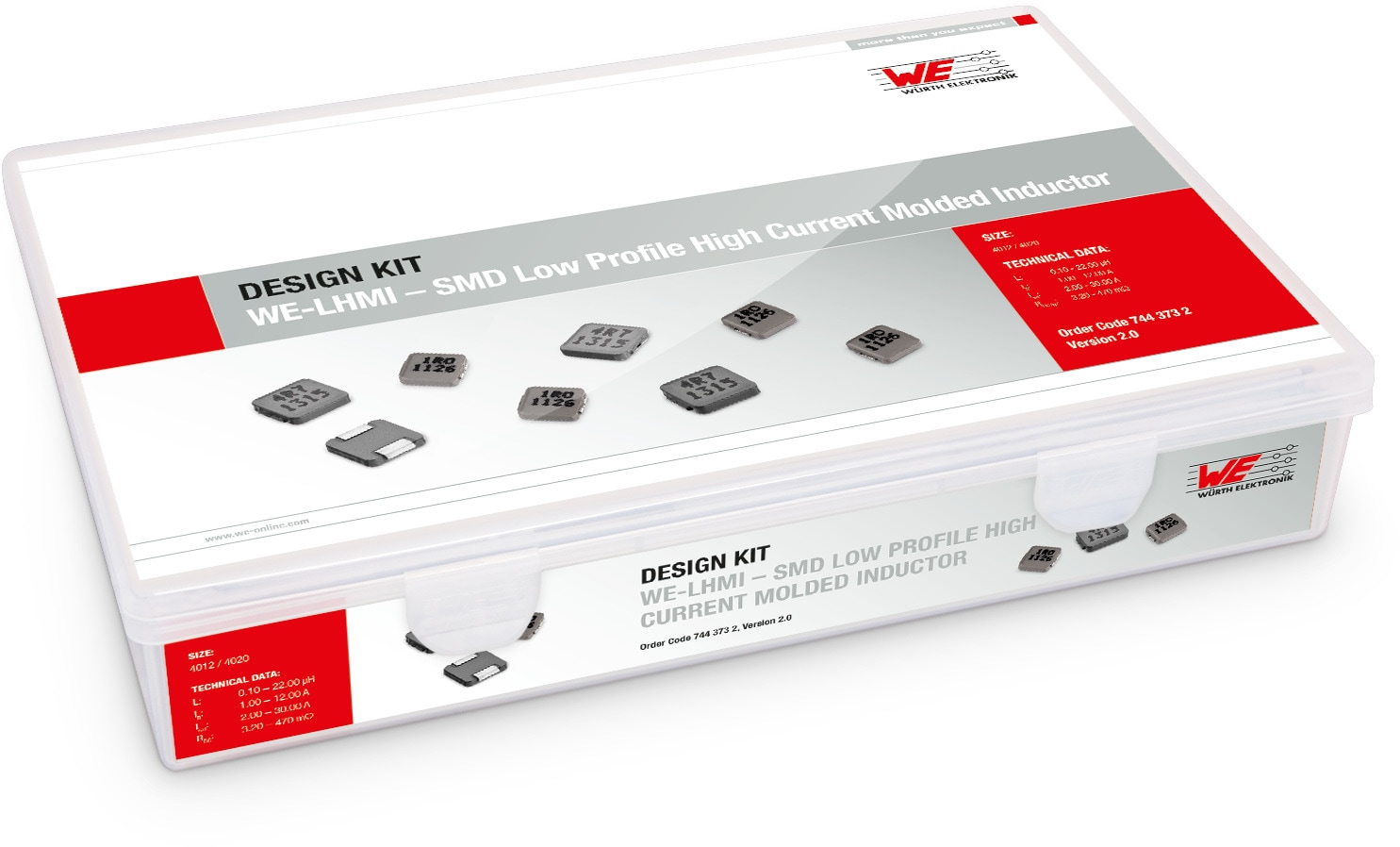

Design Kit WE-LHMI SMT Power Inductor - 4012/ 4020
