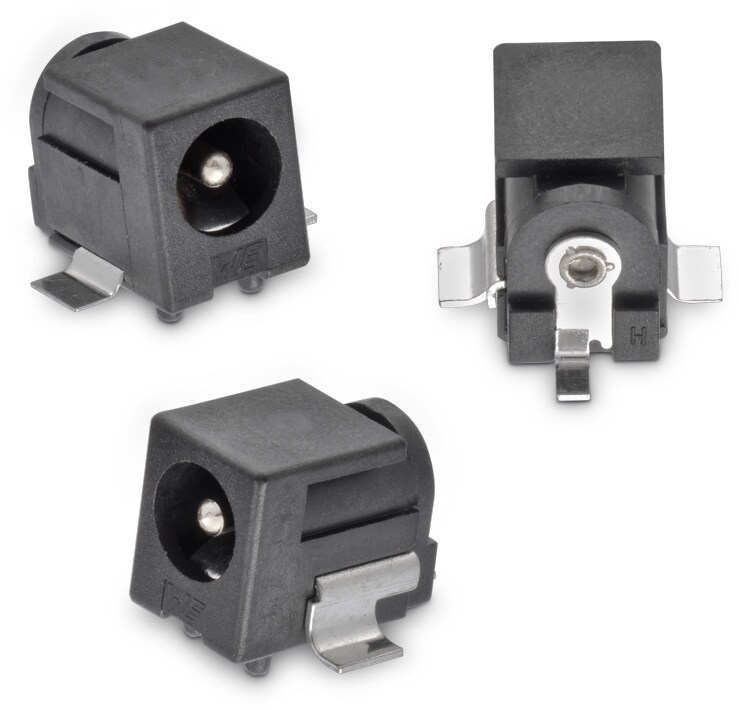

WR-DC DC Power Jack Right Angled SMT Ø 6.4 with pegs | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyDC Power Jacks OrientationWR-DC DC Power Jack Right Angled SMT Ø 6.4 with pegs

Kind Properties
Quality Class	5 000 Mating cycles
Type	Right Angled

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Color	Black
Contact Material	Copper Alloy
Contact Type	Stamped
Shielding Material	Plastic
Center Pin Plating	Gold
Center Pin Terminal Plating	Tin
Tip Spring Material	Tin
Shunt Terminal Plating	Tin

General Information
Operating Temperature	-40 up to +85 °C
Compliance	RoHS

Electrical Properties
I_R	5 A
Working Voltage	24 V (DC)
Withstanding Voltage	500 V (AC)
Contact Resistance	50 mΩ
R_ISO	100 MΩ

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Mount	Type	I_R (A)	Working Voltage (V (DC))	Packaging	Design Kit	Samples
694106105102	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DC (rev21b).IntLib \| 1.3 MB CDS Cadence_WR-DC (rev19a).zip \| 7.4 MB EAG Eagle_WR-DC (rev21a).lbr \| 137.8 KB CAD files ZIP 3D 694106105102_1 (rev1).pdf \| 246.7 KB IGS 694106105102 (rev1).igs \| 1.5 MB STP 694106105102 (rev1).stp \| 515.3 KB Download all 6 files as zip archive ZIP	SMT	Right Angled	5	24	Tape and Reel	694001
694108105102	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DC (rev21b).IntLib \| 1.3 MB CDS Cadence_WR-DC (rev19a).zip \| 7.4 MB EAG Eagle_WR-DC (rev21a).lbr \| 137.8 KB CAD files ZIP 3D 694108105102 (rev1).pdf \| 251.2 KB IGS Download_IGS_694108105102 (rev1).igs \| 1.5 MB STP Download_STP_694108105102 (rev1).stp \| 515.3 KB Download all 6 files as zip archive ZIP	SMT	Right Angled	5	24	Tape and Reel	694001

Order Code	Datasheet
694106105102	SPEC
694108105102	SPEC

Samples

Order Code	Datasheet	Downloads	Mount	Type	I_R (A)	Working Voltage (V (DC))	Packaging	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-DC DC Power Jacks
