WE-D-SUB Filter Solder Pin Straight

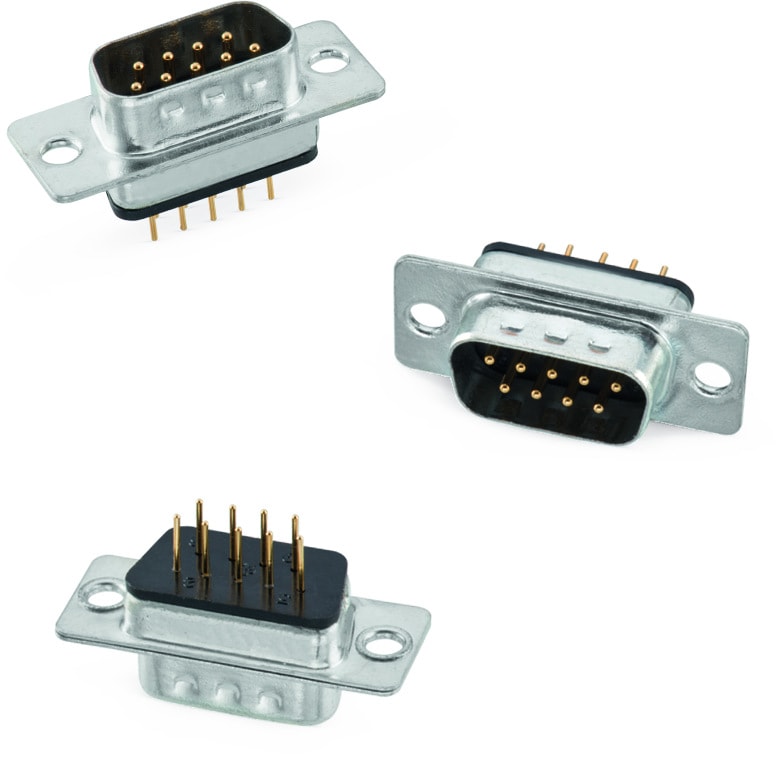

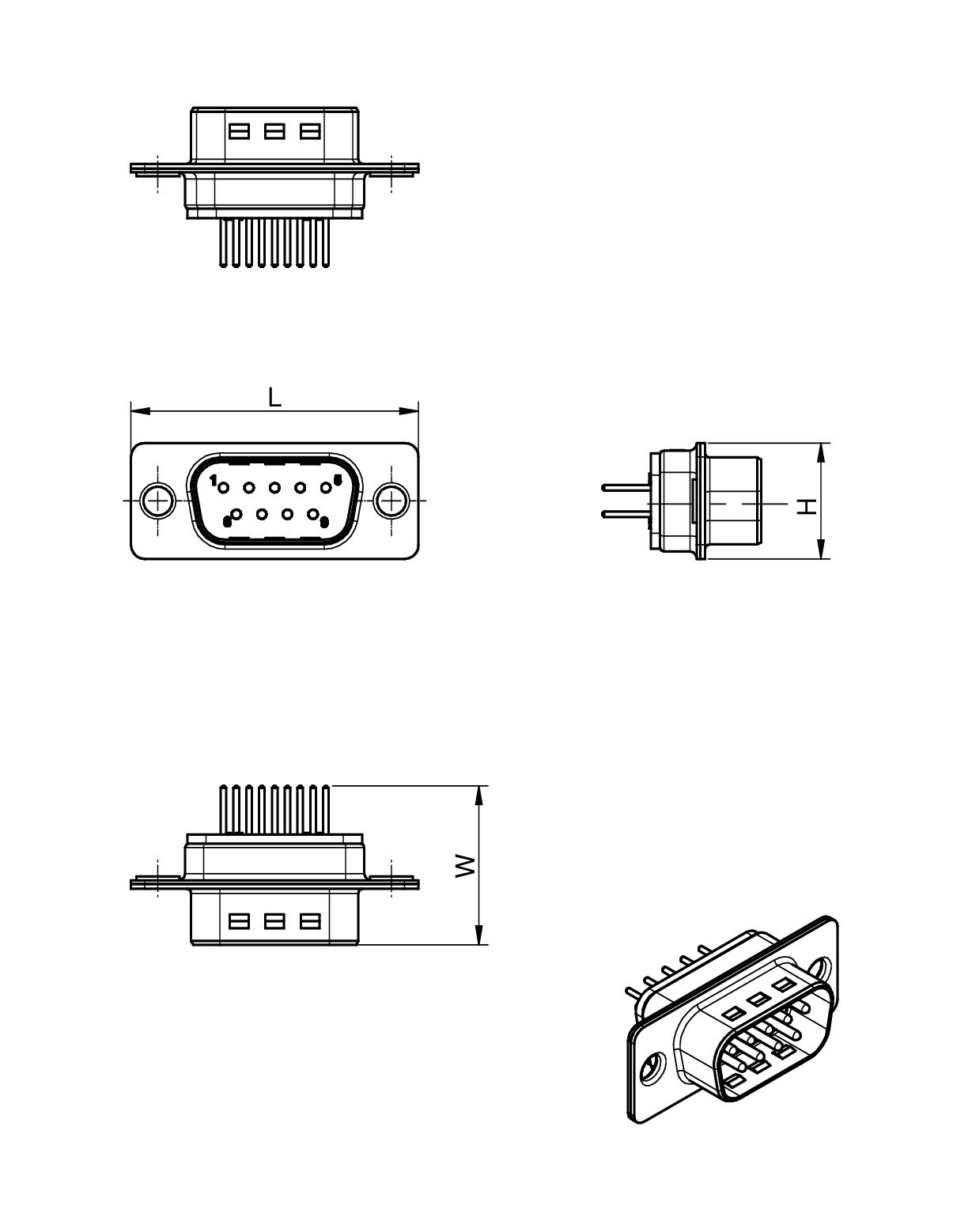

Size	Dimensions	W (mm)	H (mm)	Material	Mount
Through Hole		17	12.4	Steel with Tin	Solder

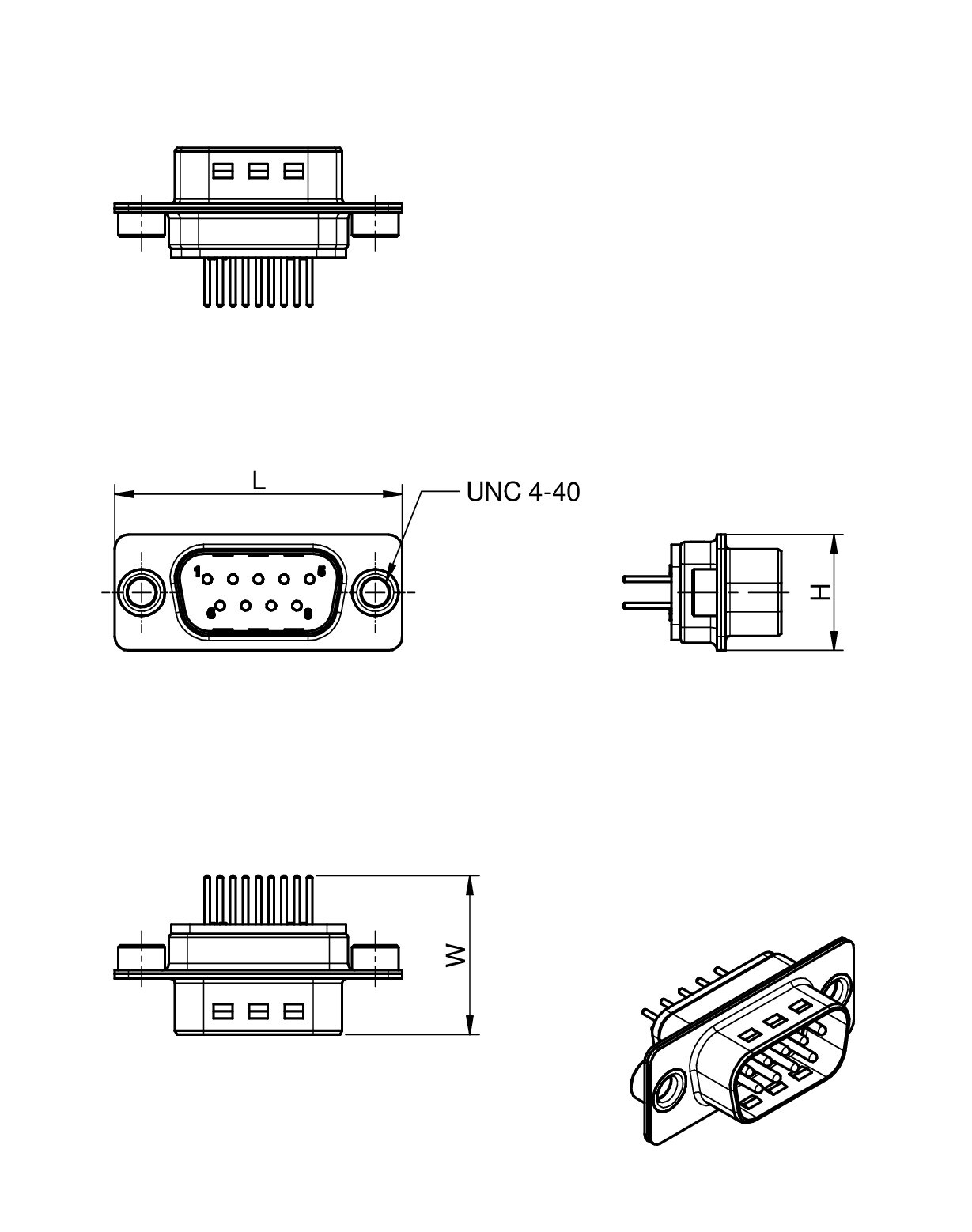

UNC 4/40		17	12.4	Steel with Tin	Solder

Characteristics

Standardized filter with 1000 pF (other values possible on request)
High attenuation of more than 40 dB @ 180 MHz
Rated current @ 20 ºC: 7,5 A
Insulation resistance: min. 1 GΩ
Operating temperature: –55 ºC to +125 ºC
Choice of UNC 4/40 or through hole
Working voltage: 100 VDC
Testing voltage: 250 VRMS

Applications

Filtering of interfaces
External connection to
– printer
– sensor
– display

Products

All

Through Hole

UNC 4/40

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Number of Poles	Gender	L(mm)	W(mm)	H(mm)	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	210111003	SPEC9, Male, 30.8 mm PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 27/09/2026 SPEC Datasheet valid from 28/09/2026 PCN PCN document valid from 28/09/2026	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 210111003 (rev1).igs \| 12.2 MB STP 210111003 (rev1).stp \| 1.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles9	GenderMale	Length30.8 mm	Width17 mm	Height12.4 mm	–Check availability
	210611003	SPEC9, Female, 30.8 mm PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 27/09/2026 SPEC Datasheet valid from 28/09/2026 PCN PCN document valid from 28/09/2026	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 210611003 (rev1).igs \| 15.2 MB STP 210611003 (rev1).stp \| 1.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles9	GenderFemale	Length30.8 mm	Width17 mm	Height12.4 mm	–Check availability
	210111023	SPEC9, Male, 30.8 mm PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document valid from 28/09/2026	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 210111023 (rev1).igs \| 12.3 MB STP 210111023 (rev1).stp \| 1.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles9	GenderMale	Length30.8 mm	Width17 mm	Height12.4 mm	–Check availability
	210611023	SPEC9, Female, 30.8 mm PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 27/09/2026 SPEC Datasheet valid from 28/09/2026 PCN PCN document valid from 28/09/2026	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 210611023 (rev1).igs \| 15.3 MB STP 210611023 (rev1).stp \| 1.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles9	GenderFemale	Length30.8 mm	Width17 mm	Height12.4 mm	–Check availability
	212111003	SPEC15, Male, 39.2 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 212111003 (rev1).igs \| 19.1 MB STP 212111003 (rev1).stp \| 1.4 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles15	GenderMale	Length39.2 mm	Width17 mm	Height12.4 mm	–Check availability
	212611003	SPEC15, Female, 39.2 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 212611003 (rev1).igs \| 23.9 MB STP 212611003 (rev1).stp \| 1.4 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles15	GenderFemale	Length39.2 mm	Width17 mm	Height12.4 mm	–Check availability
	212111023	SPEC15, Male, 39.2 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 212111023 (rev1).igs \| 19.2 MB STP 212111023 (rev1).stp \| 1.4 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles15	GenderMale	Length39.2 mm	Width17 mm	Height12.4 mm	–Check availability
	212611023	SPEC15, Female, 39.2 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 212611023 (rev1).igs \| 24 MB STP 212611023 (rev1).stp \| 1.4 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles15	GenderFemale	Length39.2 mm	Width17 mm	Height12.4 mm	–Check availability
	214111003	SPEC25, Male, 53.1 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 214111003 (rev1).igs \| 31.4 MB STP 214111003 (rev1).stp \| 2.1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles25	GenderMale	Length53.1 mm	Width17 mm	Height12.4 mm	–Check availability
	214611003	SPEC25, Female, 53.1 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_WE-DsubFilter-SolderPinStraight (rev1).igs \| 7.7 MB STP Download_STP_WE-DSubFilter-SolderPinStraight (rev1).stp \| 1.7 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles25	GenderFemale	Length53.1 mm	Width17 mm	Height12.4 mm	–Check availability
	214111023	SPEC25, Male, 53.1 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS 214111023 (rev1).igs \| 31.5 MB STP 214111023 (rev1).stp \| 2.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles25	GenderMale	Length53.1 mm	Width17 mm	Height12.4 mm	–Check availability
	214611023	SPEC25, Female, 53.1 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_WE_DSubFilter-SolderPinStraight-214611023 (rev1).igs \| 7.7 MB STP Download_STP_WE-DSubFilter-SolderPinStraight-214611023 (rev1).stp \| 1.7 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles25	GenderFemale	Length53.1 mm	Width17 mm	Height12.4 mm	–Check availability
	216111003	SPEC37, Male, 69.5 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_DSubFilter-SolderPinStraight-216111003 (rev1).igs \| 8.6 MB STP Download_STP_WE-DSubFilter-SolderPinStraight-216111003 (rev1).stp \| 2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles37	GenderMale	Length69.5 mm	Width17 mm	Height12.4 mm	–Check availability
	216611003	SPEC37, Female, 69.5 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_216611003 (rev1).igs \| 8.9 MB STP Download_STP_216611003 (rev1).stp \| 1.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles37	GenderFemale	Length69.5 mm	Width17 mm	Height12.4 mm	–Check availability
	216111023	SPEC37, Male, 69.5 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_216111023 (rev1).igs \| 8.6 MB STP Download_STP_216111023 (rev1).stp \| 2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles37	GenderMale	Length69.5 mm	Width17 mm	Height12.4 mm	–Check availability
	216611023	SPEC37, Female, 69.5 mm	Availability –	Downloads5 files ALT Altium_WE-D-SUB (rev20a).IntLib \| 14.2 MB EAG Eagle_WE-D-SUB (rev19a).lbr \| 368.4 KB KIC KiCad_WE-D-SUB (rev26a).zip \| 46.7 MB IGS Download_IGS_216611023 (rev1).igs \| 8.9 MB STP Download_STP_216611023 (rev1).stp \| 1.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Number of Poles37	GenderFemale	Length69.5 mm	Width17 mm	Height12.4 mm	–Check availability
