| General Information | |
|---|---|
| Operating Temperature | -40 °C up to +105 °C |
| Compliance | RoHS |
| Durability | 10 000 Mating cycles |
| Quality Class | 10 000 Mating cycles |

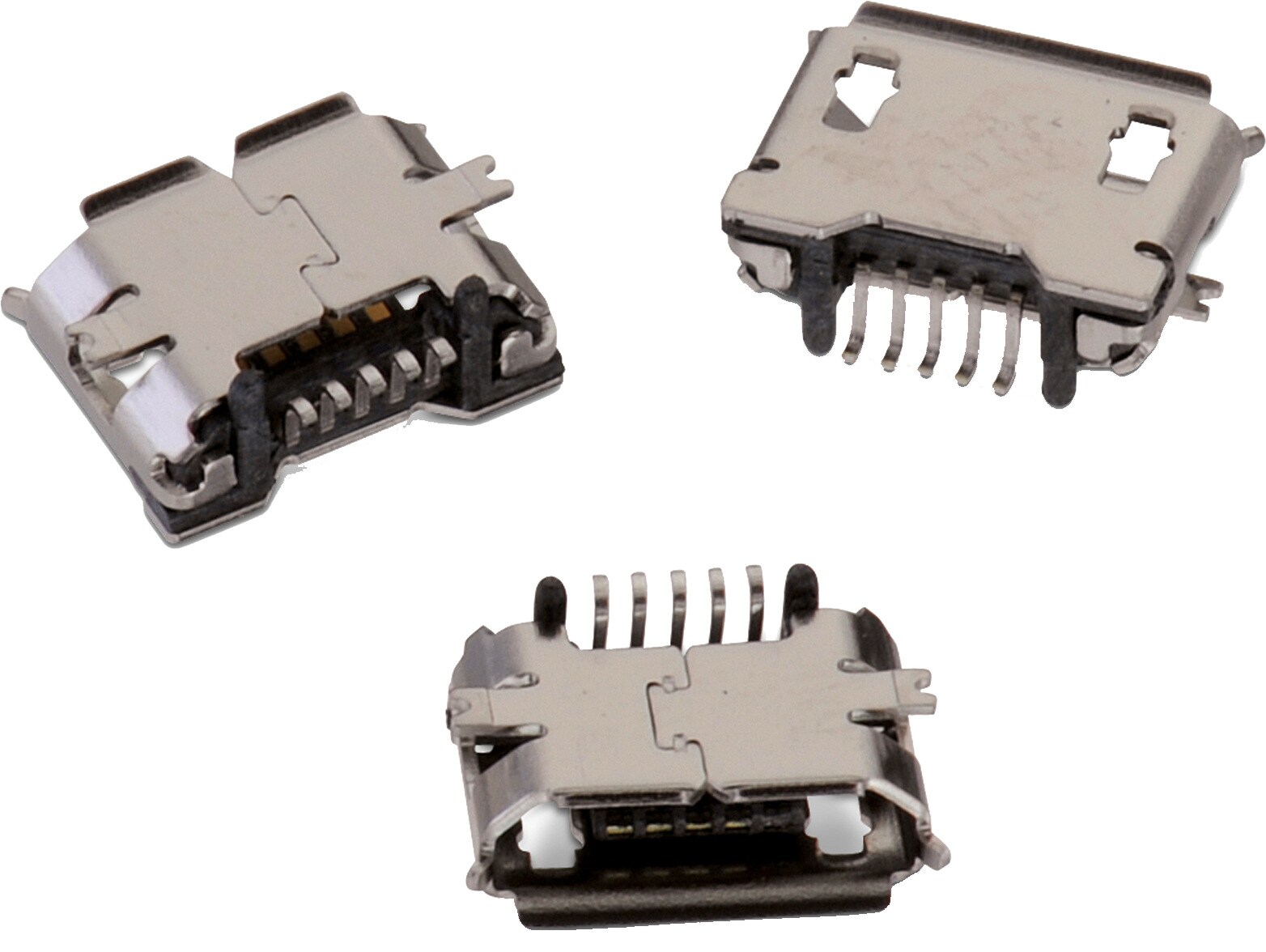

| Connector Type | Micro USB |
| Gender | Receptacle |
| Type | Horizontal |
| Material Properties | |
|---|---|
| Insulator Material | LCP |
| Insulator Flammability Rating | UL94 V-0 |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Stamped |
| Shielding Material | Stainless Steel |
| Shielding Plating | Nickel |
| Electrical Properties | |
|---|---|
| IR | 1 A |
| Working Voltage | 30 V (AC) |
| Withstanding Voltage | 100 V (AC) |
| Contact Resistance | 30 mΩ |
Application Notes
Products
| Order Code | Datasheet | Downloads | Application | Interface Type | Type | Gender | Pins | Mount | IR (A) | Working Voltage (V (AC)) | Packaging | Design Kit | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 629105136821 | SPEC | 6 files | Micro USB 2.0 | Type B | Horizontal | Receptacle | 5 | SMT | 1 | 30 | Tape and Reel | 614001 |
| Order Code | Datasheet | |
|---|---|---|
| 629105136821 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Application | Interface Type | Type | Gender | Pins | Mount | IR (A) | Working Voltage (V (AC)) | Packaging | Design Kit | Samples |
|---|
