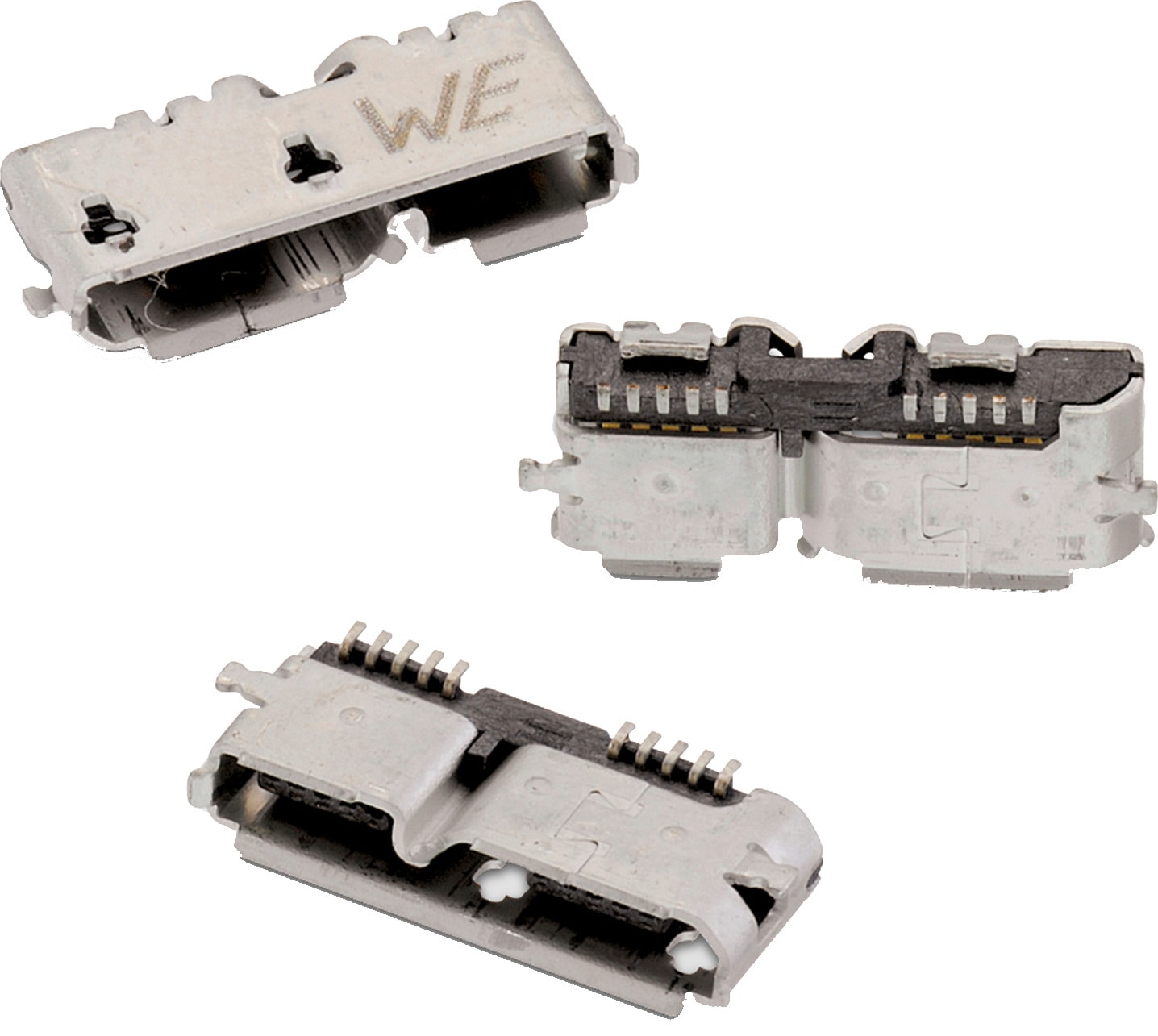

WR-COM Micro USB 3.0 Type B Horizontal SMT

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Color	Black
Cover Material	Steel
Cover Plating	Matte Tin
Contact Material	Phosphor Bronze
Contact Plating	Matte Tin over Nickel
Contact Type	Stamped
Shielding Material	Steel
Shielding Plating	Matte Tin

	Order Code	Datasheet	Downloads	Application	Interface Type	Type	Gender	Pins	Mount	I_R (A)	Working Voltage (V (AC))	Packaging	Design Kit	Samples
	692622030100	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-USB (rev24a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev24b).zip \| 61.5 MB EAG Eagle_WR-USB (rev24a).lbr \| 448.2 KB CAD files ZIP 3D 3D_692622030100 (rev1).pdf \| 234.1 KB IGS Download_IGS_692622030100 (rev1).igs \| 3.5 MB STP Download_STP_692622030100 (rev1).stp \| 1.3 MB Download all 6 files as zip archive ZIP	Micro USB 3.0	Type B	Horizontal	Receptacle	10	SMT	1.8	30	Tape and Reel	614001

	Order Code	Datasheet
	692622030100	SPEC

Samples

	Order Code	Datasheet	Downloads	Application	Interface Type	Type	Gender	Pins	Mount	I_R (A)	Working Voltage (V (AC))	Packaging	Design Kit	Samples
