| General Information | |
|---|---|
| Compliance | RoHS |
| Durability | 5 000 Mating cycles |
| Quality Class | 5 000 Mating cycles |
| Connector Type | USB |
| Material Properties | |
|---|---|
| Insulator Flammability Rating | VW-1 IEC 332-1 |
| Color | Blue |
| Contact Material | Copper Alloy |
| Electrical Properties | |
|---|---|
| IR | 2.5 A |
| Working Voltage | 30 V (AC) |
| Contact Resistance | 50 mΩ |
Products
| Order Code | Datasheet | Downloads | Application | Interface Type | Working Voltage (V (AC)) | Packaging | Samples | |
|---|---|---|---|---|---|---|---|---|
 | 692901100001 | SPEC | 3 files | USB 3.0 Cable Assembly | USB-A Male to A Male | 30 | Bag | |
 | 692903100000 | SPEC | 3 files | USB 3.0 Cable Assembly | USB-A Male to B Male | 30 | Bag | |
 | 692904100000 | SPEC | 3 files | USB 3.0 Cable Assembly | USB-A Male to Micro B Male | 30 | Bag | |

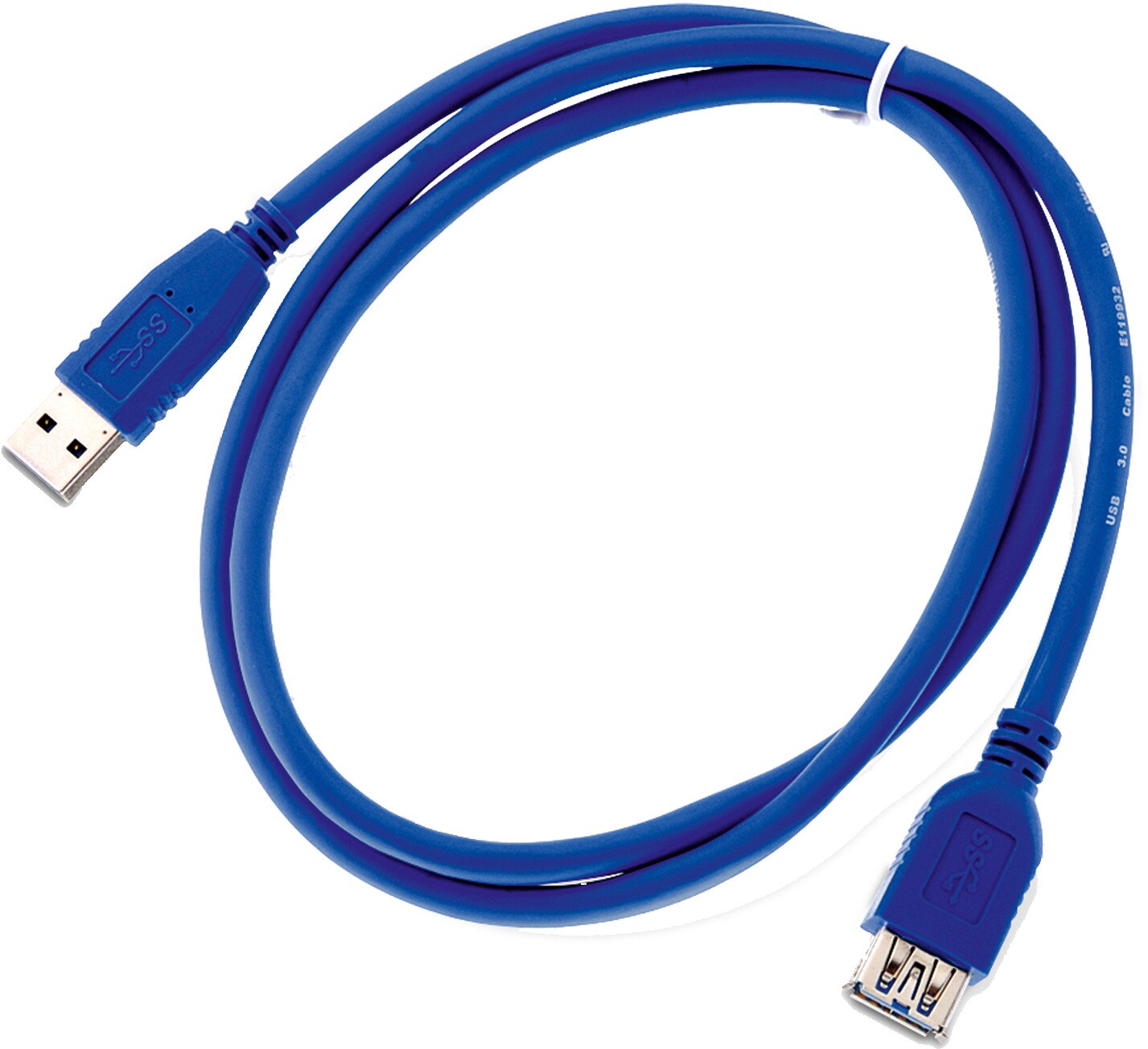

 | 692902100001 | SPEC | 3 files | USB 3.0 Cable Assembly | USB-A Male to A Female | 30 | Bag |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Application | Interface Type | Working Voltage (V (AC)) | Packaging | Samples |
|---|
Suitable for
WR-COM USB 3.0 Type A Stacked
WR-COM USB 3.0 Type B Horizontal
WR-COM USB 3.0 Type A Horizontal w. Offset 1.04 mm
WR-COM USB 3.0 Type A Horizontal
WR-COM USB 3.0 Type A Reverse Horizontal w. Offset 0.14 mm
WR-COM USB 3.0 Type A Vertical THT
WR-COM USB 3.0 Type A Reverse Horizontal w. Offset 1.75 mm
WR-COM USB 3.0 Type A Horizontal SMT
WR-COM Micro USB 3.0 Type B Horizontal SMT
WR-COM Micro USB 3.0 Type B Vertical SMT
