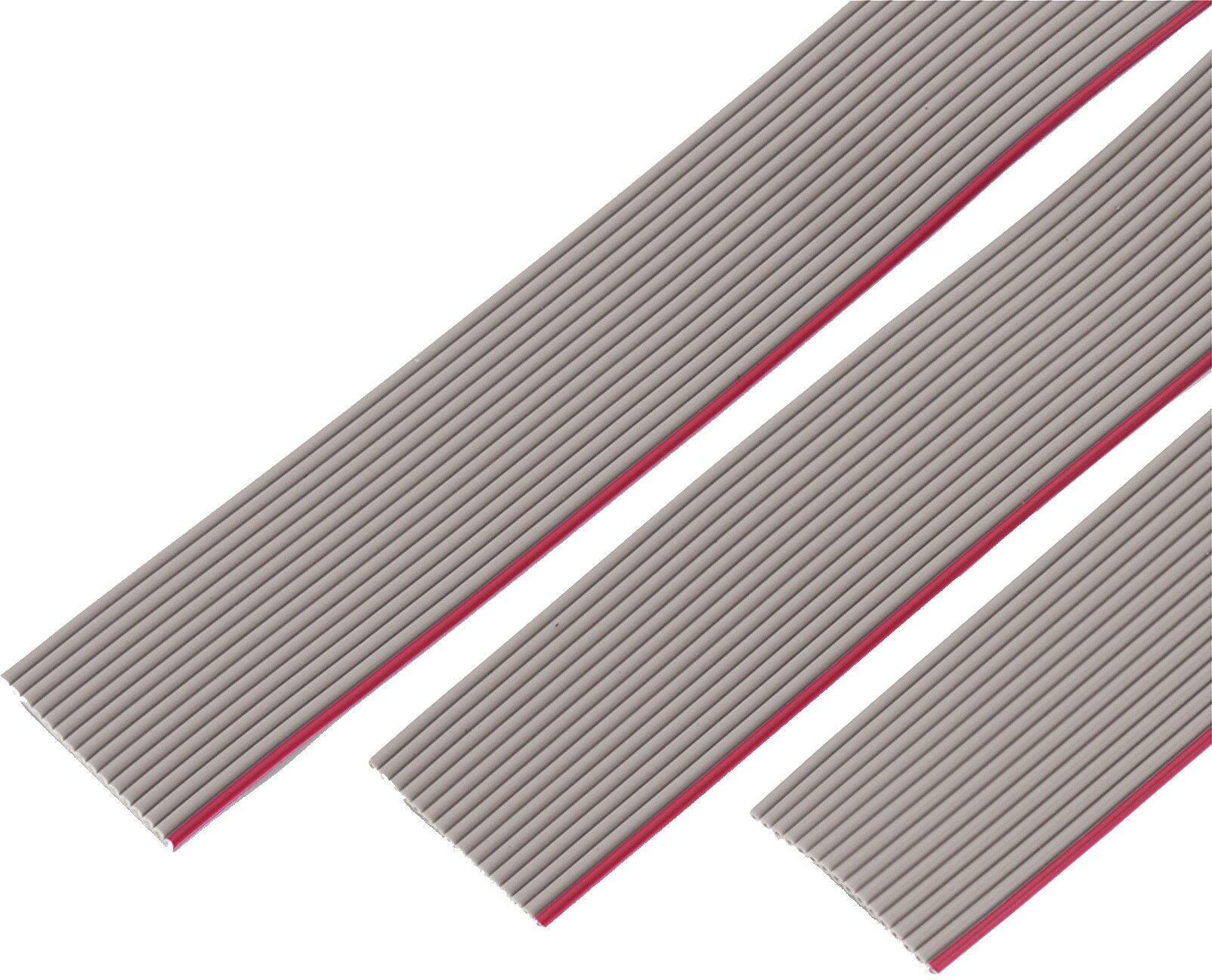

WR-CAB 1.00 mm Ribbon Flat Cable | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.00 mm GenderCable Product seriesWR-CAB 1.00 mm Ribbon Flat Cable

WR-CAB 1.00 mm Ribbon Flat Cable. Operating temperature -25 °C up to 105 °C. Dielectric strength 2000 V (AC)

Material Properties
Insulator Material	PVC
Insulator Color	Grey with Red Marking on 1st Conductor

General Information
Operating Temperature	-25 °C up to +105 °C
Withstanding Voltage	2000 V (AC)
R_ISO	100 MΩ
Unbalanced Impedance	90 Ω
Pitch	1 mm

Certification
cULus Approval	E328849

Wire Properties
Stranded Wire Section (AWG)	28 (AWG)
Stranded Wire Section (Metric)	0.089 (mm²)

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	L (mm)	I_R (A)	Operating Temperature	Stranded Wire Section (AWG)	Packaging	Samples
63901015621	SPEC	3 files CAD files ZIP 3D 63901015621_1 (rev1).pdf \| 365.3 KB IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	10	1	-25 °C up to +105 °C	28 (AWG)	Tape and Reel
63901415621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1	14	1	-25 °C up to +105 °C	28 (AWG)	Tape and Reel
63901615621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1	16	1	-25 °C up to +105 °C	28 (AWG)	Tape and Reel
63902015621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1	20	1	-25 °C up to +105 °C	28 (AWG)	Tape and Reel
63902415621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	1	24	1	-25 °C up to +105 °C	28 (AWG)	Tape and Reel
63902615621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	1	26	1	-25 °C up to +105 °C	28 (AWG)	Tape and Reel
63903415621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	1	34	1	-25 °C up to +105 °C	28 (AWG)	Tape and Reel
63904015621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	1	40	1	-25 °C up to +105 °C	28 (AWG)	Tape and Reel
63905015621	SPEC	2 files CAD files ZIP IGS 6390xx15621 (rev1).igs \| 3.2 MB STP 6390xx15621 (rev1).stp \| 670.1 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	1	50	1	-25 °C up to +105 °C	28 (AWG)	Tape and Reel

Order Code	Datasheet
63901015621	SPEC
63901415621	SPEC
63901615621	SPEC
63902015621	SPEC
63902415621	SPEC
63902615621	SPEC
63903415621	SPEC
63904015621	SPEC
63905015621	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	L (mm)	I_R (A)	Operating Temperature	Stranded Wire Section (AWG)	Packaging	Samples
