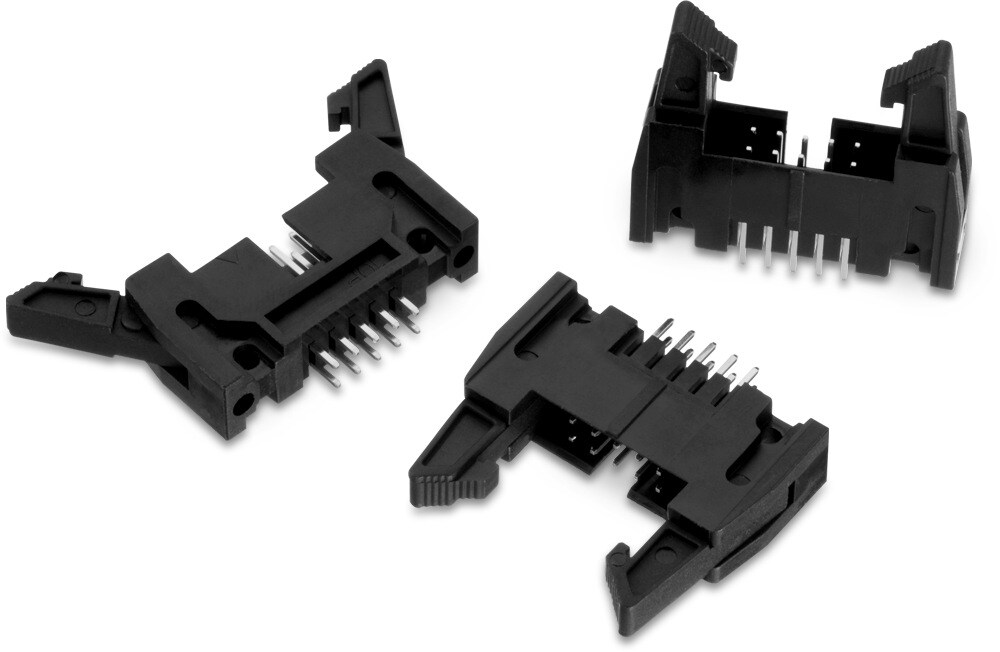

WR-BHD 2.54 mm Male Box Header with short lever

WR-BHD 2.54 mm Male Box Header with short lever. Betriebstemperatur -40 °C up to +105 °C. Spannungsfestigkeit 500 V (AC)

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.54 mm
Gender	Male

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tray

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Version	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit
61201022021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 3D_61201022021 (rev1).pdf \| 121.9 KB IGS Download_IGES_61201022021 (rev1).iges \| 1.6 MB STP 61201022021 (rev1).stp \| 333.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	With locking lever	Male	Straight	THT	32.2	3	250	20	max.	Tray	612001
61201422021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 3D_61201422021 (rev1).pdf \| 129.3 KB IGS Download_IGES_61201422021 (rev1).iges \| 1.7 MB STP 61201422021 (rev1).stp \| 360.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	With locking lever	Male	Straight	THT	37.28	3	250	20	max.	Tray	612001
61201622021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 3D_61201622021 (rev1).pdf \| 129.6 KB IGS Download_IGES_61201622021 (rev1).iges \| 1.7 MB STP 61201622021 (rev1).stp \| 372.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	With locking lever	Male	Straight	THT	39.82	3	250	20	max.	Tray	612001
61202022021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 3D_61202022021 (rev1).pdf \| 146.6 KB IGS Download_IGES_61202022021 (rev1).iges \| 2 MB STP 61202022021 (rev1).stp \| 441.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	With locking lever	Male	Straight	THT	44.9	3	250	20	max.	Tray	612001
61202422021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 3D_61202422021 (rev1).pdf \| 153.2 KB IGS Download_IGES_61202422021 (rev1).iges \| 2.1 MB STP 61202422021 (rev1).stp \| 472.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	2.54	With locking lever	Male	Straight	THT	49.98	3	250	20	max.	Tray	–
61202622021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 3D_61202622021 (rev1).pdf \| 156.9 KB IGS Download_IGES_61202622021 (rev1).iges \| 2.2 MB STP 61202622021 (rev1).stp \| 482.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	26	2.54	With locking lever	Male	Straight	THT	52.52	3	250	20	max.	Tray	–
61203422021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 3D_61203422021 (rev1).pdf \| 171.6 KB IGS Download_IGES_61203422021 (rev1).iges \| 2.4 MB STP 61203422021 (rev1).stp \| 552.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	34	2.54	With locking lever	Male	Straight	THT	62.68	3	250	20	max.	Tray	–
61204022021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 3D_61204022021 (rev1).pdf \| 182.1 KB IGS Download_IGES_61204022021 (rev1).iges \| 2.6 MB STP 61204022021 (rev1).stp \| 592.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	40	2.54	With locking lever	Male	Straight	THT	70.3	3	250	20	max.	Tray	–
61205022021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 3D_61205022021 (rev1).pdf \| 203.2 KB IGS Download_IGES_61205022021 (rev1).iges \| 2.9 MB STP 61205022021 (rev1).stp \| 675.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	50	2.54	With locking lever	Male	Straight	THT	83	3	250	20	max.	Tray	–
61206022021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 3D_61206022021 (rev1).pdf \| 222 KB IGS Download_IGES_61206022021 (rev1).iges \| 3.2 MB STP 61206022021 (rev1).stp \| 772.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	60	2.54	With locking lever	Male	Straight	THT	95.7	3	250	20	max.	Tray	–
