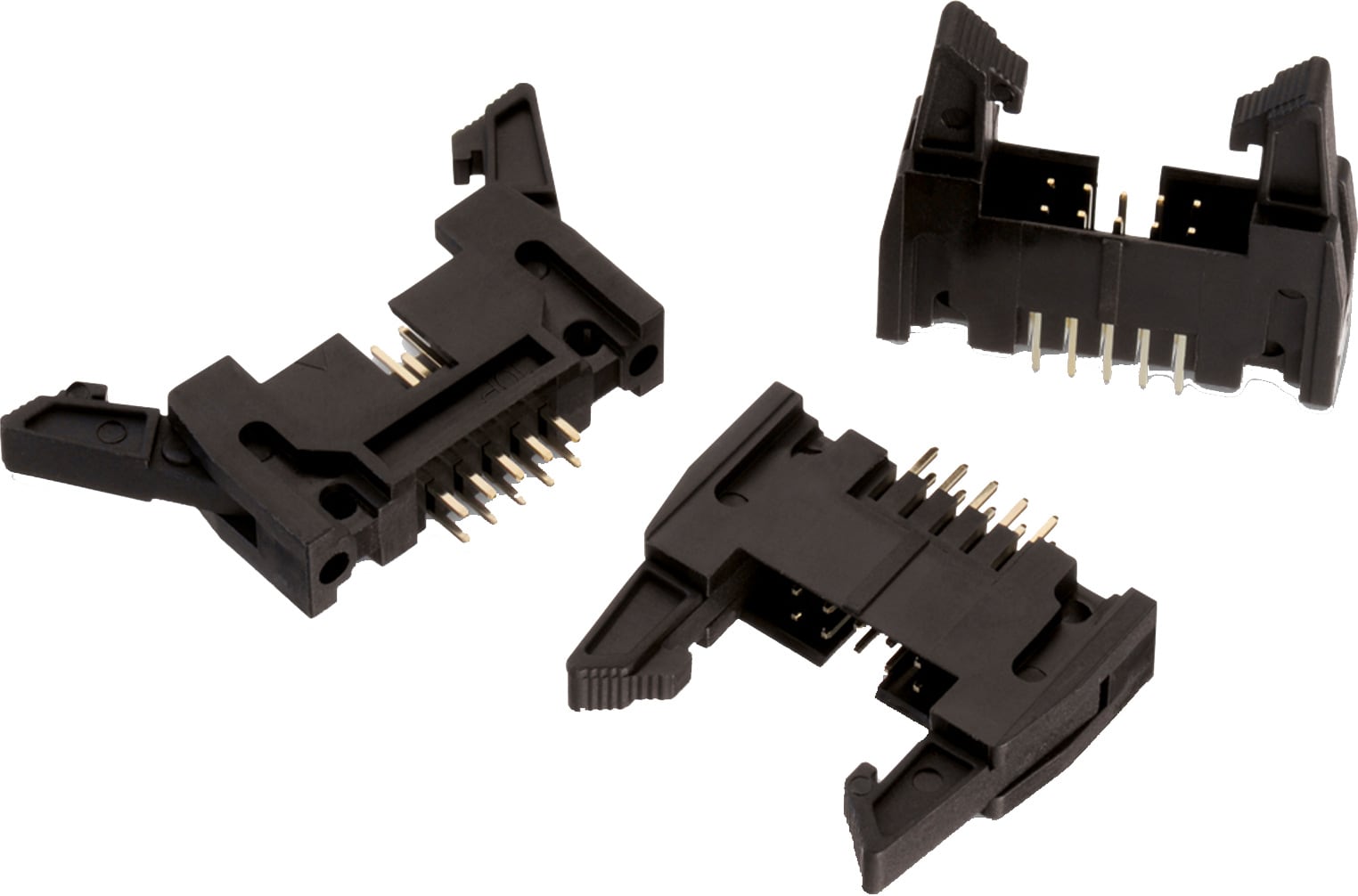

| Kind Properties | |
|---|---|
| Pitch | 2.54 mm |
| Gender | Male |
| Material Properties | |
|---|---|
| Insulator Material | PBT |
| Insulator Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Stamped |
| General Information | |
|---|---|
| Operating Temperature | -40 up to +105 °C; -40 up to +125 °C |
| Compliance | RoHS |
| Working Voltage | 250 V (AC) |
| Withstanding Voltage | 500 V (AC) |
| Contact Resistance | 20 mΩ |
| RISO | 1000 MΩ |
| Certification | |
|---|---|
| UL Approval | E323964 |
| Packaging Properties | |
|---|---|
| Packaging | Tray |
Products
| Order Code | SPEC | Downloads | Pins | Pitch
(mm) |
Gender | Type | Mount | L
(mm) |
IR 1
(A) |
Working Voltage
(V (AC)) |
Contact Resistance
(mΩ) |
Tol. R | Packaging | Design Kit | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 61201022821 |
|
IGE STE 3D ALT EAG CAD | 10 | 2.54 | Male | Straight | THT | 32.2 | – | 250 | 20 | max. | Tray |
612001
|
||
| 61201422821 |
|
IGE STE 3D ALT EAG CAD | 14 | 2.54 | Male | Straight | THT | 37.28 | – | 250 | 20 | max. | Tray |
612001
|
||
| 61201622821 |
|
IGE STE 3D ALT EAG CAD | 16 | 2.54 | Male | Straight | THT | 39.82 | – | 250 | 20 | max. | Tray | – | ||
| 61202022821 |
|
IGE STE 3D ALT EAG CAD | 20 | 2.54 | Male | Straight | THT | 44.9 | – | 250 | 20 | max. | Tray |
612001
|
||
| 61202422821 |
|
IGE STE 3D ALT EAG CAD | 24 | 2.54 | Male | Straight | THT | 49.98 | – | 250 | 20 | max. | Tray | – | ||
| 61202622821 |
|
IGE STE 3D ALT EAG CAD | 26 | 2.54 | Male | Straight | THT | 52.52 | – | 250 | 20 | max. | Tray |
612001
|
||
| 61203422821 |
|
IGE STE 3D ALT EAG CAD | 34 | 2.54 | Male | Straight | THT | 62.68 | – | 250 | 20 | max. | Tray | – | ||
| 61204022821 |
|
IGE STE 3D ALT EAG CAD | 40 | 2.54 | Male | Straight | THT | 70.3 | – | 250 | 20 | max. | Tray | – | ||
| NEW | 61205022821 |
|
IGE STE 3D ALT EAG CAD | 50 | 2.54 | Male | Straight | THT | 83 | 3 | 250 | 20 | max. | Tray | – | |
| 61206022821 |
|
IGE STE 3D ALT EAG CAD | 60 | 2.54 | Male | Straight | THT | 95.7 | – | 250 | 20 | max. | Tray | – | ||
| 61206422821 |
|
IGE STE 3D ALT EAG CAD | 64 | 2.54 | Male | Straight | THT | 100.78 | – | 250 | 20 | max. | Tray | – |
| Order Code | SPEC | |
|---|---|---|
| 61201022821 |
|
|
| 61201422821 |
|
|
| 61201622821 |
|
|
| 61202022821 |
|
|
| 61202422821 |
|
|
| 61202622821 |
|
|
| 61203422821 |
|
|
| 61204022821 |
|
|
| NEW | 61205022821 |
|
| 61206022821 |
|
|
| 61206422821 |
|
