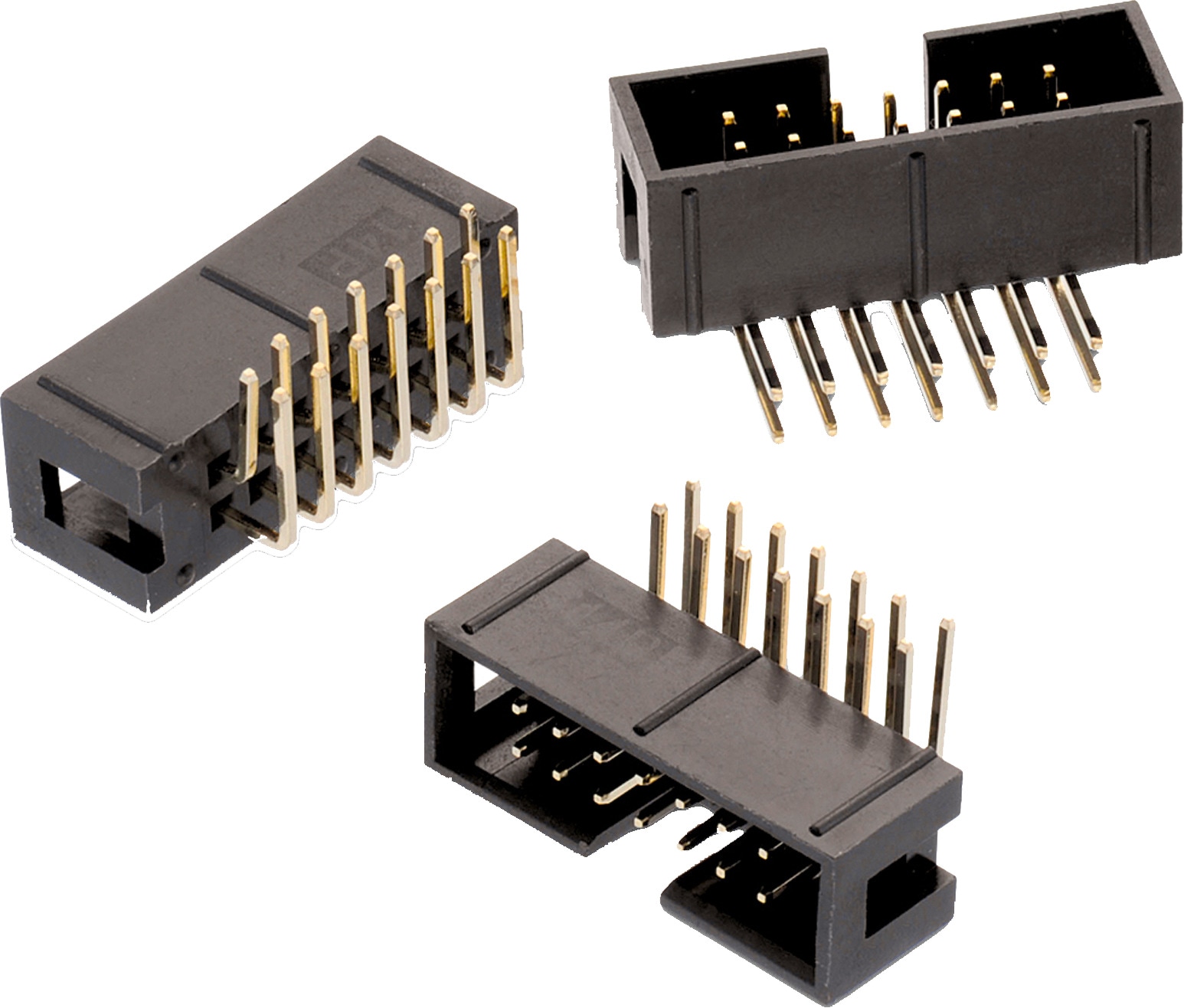

WR-BHD 2.54 mm Male Angled Box Header High Temperature | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.54 mm GenderMale PCB side Product seriesWR-BHD 2.54 mm Male Angled Box Header High Temperature

WR-BHD 2.54 mm Male Box Header High Temperature. Operating temperature -40 °C up to 105 °C. Dielectric strength 500 V (AC)

Material Properties
Insulator Material	PA6T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +125 °C
Compliance	RoHS
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.54 mm
Gender	Male

Packaging Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Version	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
612006235221	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 612006235221_1 (rev1).pdf \| 65.6 KB IGS 612006235221 (rev1).igs \| 748.9 KB STP 612006235221 (rev1).stp \| 280.8 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2.54	Low Profile	Male	Angled	THT	15.2	3	250	20	max.	Tray	612001
612008235221	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 612008235221_1 (rev1).pdf \| 68.8 KB IGS 612008235221 (rev1).igs \| 838.4 KB STP 612008235221 (rev1).stp \| 316.3 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.54	Low Profile	Male	Angled	THT	17.78	3	250	20	max.	Tray	–
612010235221	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 612010235221_1 (rev1).pdf \| 74.7 KB IGS 612010235221 (rev1).igs \| 928.1 KB STP 612010235221 (rev1).stp \| 351.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Low Profile	Male	Angled	THT	20.3	3	250	20	max.	Tray	612001
612014235221	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 612014235221_1 (rev1).pdf \| 84.3 KB IGS 612014235221 (rev1).igs \| 1.1 MB STP 612014235221 (rev1).stp \| 422.9 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	Low Profile	Male	Angled	THT	25.38	3	250	20	max.	Tray	–
612016235221	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 612016235221_1 (rev1).pdf \| 89.4 KB IGS 612016235221 (rev1).igs \| 1.2 MB STP 612016235221 (rev1).stp \| 458.5 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	Low Profile	Male	Angled	THT	27.92	3	250	20	max.	Tray	612001
612020235221	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 612020235221_1 (rev1).pdf \| 99.2 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	Low Profile	Male	Angled	THT	33	3	250	20	max.	Tray	612001
612026235221	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 612026235221_1 (rev1).pdf \| 114.5 KB IGS 612026235221 (rev1).igs \| 1.7 MB STP 612026235221 (rev1).stp \| 638.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	26	2.54	Low Profile	Male	Angled	THT	40.62	3	250	20	max.	Tray	–
612034235221	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 612034235221_1 (rev1).pdf \| 133.6 KB IGS 612034235221 (rev1).igs \| 2 MB STP 612034235221 (rev1).stp \| 787.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	34	2.54	Low Profile	Male	Angled	THT	50.8	3	250	20	max.	Tray	612001
612040235221	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP 3D 612040235221_1 (rev1).pdf \| 147.9 KB IGS 612040235221 (rev1).igs \| 2.3 MB STP 612040235221 (rev1).stp \| 896.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	40	2.54	Low Profile	Male	Angled	THT	58.4	3	250	20	max.	Tray	–
612050235221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev25a).IntLib \| 18.8 MB CDS Cadence_WR-BHD (rev25a).zip \| 19.1 MB EAG Eagle_WR-BHD (rev25a).lbr \| 2.5 MB KIC KiCad_WR-BHD (rev25a).zip \| 53 MB CAD files ZIP IGS 612050235221 (rev1).igs \| 2.7 MB STP 612050235221 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	50	2.54	Low Profile	Male	Angled	THT	71.1	3	250	20	max.	Tray	–

Order Code	Datasheet
612006235221	SPEC
612008235221	SPEC
612010235221	SPEC
612014235221	SPEC
612016235221	SPEC
612020235221	SPEC
612026235221	SPEC
612034235221	SPEC
612040235221	SPEC
612050235221	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Version	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples

Mates with

WR-BHD 2.54 mm Female IDC Connector with Strain Relief

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Box Headers and Flat Cable
