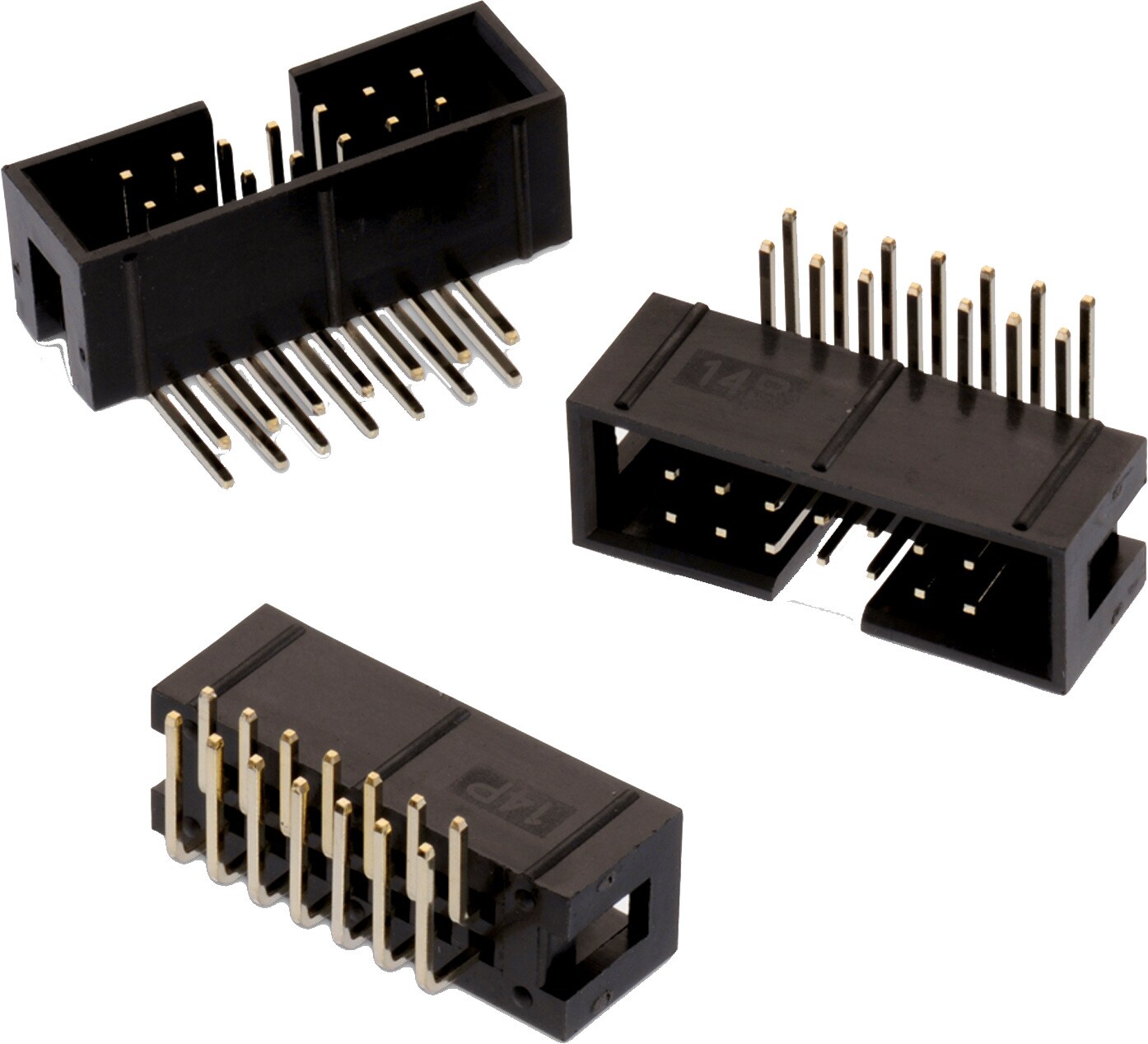

WR-BHD 2.54 mm Male Angled Box Header

Kind Properties
Pitch 2.54 mm
Gender Male
Material Properties
Insulator Material PBT
Insulator Flammability Rating UL94 V-0
Color Black
Contact Material Copper Alloy
Contact Plating Gold
Contact Type Stamped
General Information
Operating Temperature -40 up to +125 °C
Compliance RoHS
Working Voltage 250 V (AC)
Withstanding Voltage 500 V (AC)
Contact Resistance 20 mΩ
RISO 1000 MΩ
Certification
UL Approval E323964
Packaging Properties
Packaging Tray

Products

Order Code SPEC Downloads Pins Pitch
(mm)
Gender Type Mount L
(mm)
IR 1
(A)
Working Voltage
(V (AC))
Contact Resistance
(mΩ)
Tol. R Packaging Design Kit Samples
61200621721
STE 3D ALT EAG IGS CAD 6 2.54 Male Angled THT 15.28 3 250 20 max. Tray
61200821721
STE 3D ALT EAG IGS CAD 8 2.54 Male Angled THT 17.82 3 250 20 max. Tray 612001
61201021721
STE 3D ALT EAG IGS CAD 10 2.54 Male Angled THT 20.36 3 250 20 max. Tray 612001
61201421721
STE 3D ALT EAG IGS CAD 14 2.54 Male Angled THT 25.44 3 250 20 max. Tray 612001
61201621721
STE 3D ALT EAG IGS CAD 16 2.54 Male Angled THT 27.98 3 250 20 max. Tray 612690
61202021721
STE 3D ALT EAG IGS CAD 20 2.54 Male Angled THT 33.06 3 250 20 max. Tray 612001
61202421721
STE 3D ALT EAG IGS CAD 24 2.54 Male Angled THT 38.14 3 250 20 max. Tray 612001
61202621721
STE 3D ALT EAG IGS CAD 26 2.54 Male Angled THT 40.68 3 250 20 max. Tray
61203421721
STE 3D ALT EAG IGS CAD 34 2.54 Male Angled THT 50.84 3 250 20 max. Tray
61204021721
STE 3D ALT EAG IGS CAD 40 2.54 Male Angled THT 58.46 3 250 20 max. Tray
61205021721
STE 3D ALT EAG IGS CAD 50 2.54 Male Angled THT 71.16 3 250 20 max. Tray
61206021721
STE 3D ALT EAG IGS CAD 60 2.54 Male Angled THT 83.86 3 250 20 max. Tray
Order Code SPEC
61200621721
61200821721
61201021721
61201421721
61201621721
61202021721
61202421721
61202621721
61203421721
61204021721
61205021721
61206021721
