WE-CLFS Line Filter

Size	L (mm)	W (mm)	H (mm)	Mount
Single-Stage	64	35	29	Chassis
Single Stage Low Leakage	64	35	29	Chassis
Single-Stage-Advanced	75	51.8	29	Chassis
Single Stage Advanced Low Leakage	75	51.8	29	Chassis
Two-Stage	114.9	58.5	45	Chassis
Two Stage Low Leakage	114.9	58.5	45	Chassis

LTSpice files

LT
LTSpice_WE-CLFS (rev25a).zip
|
5.6 MB

Characteristics

Single-phase filter
Broadband noise suppression in common and differential mode
Simple connection through crimp cable lug. Find suitable cable lugs (6.3 x 0.8 mm) here
Fast chassis mounting
Flammability corresponding to UL 94 V-0
Climatic category: 25/100/21
Certifications: cULus (UL 60939-3, CSA 22.2 No. 8), VDE (IEC/EN 60939-2)
UL 60939-3 replaces UL 1283 for Appliance Filters
EU Declaration of conformity
UK Declaration of conformity

Single Stage:

Very compact design

Single-Stage Advanced:

Improved differential mode noise attenuation

Two-Stage:

Extreme differential and common mode noise attenuation

Low Leakage Version

Without Y-capacitors, for a leakage current of almost 0mA
Suitable for industrial applications with strict requirements against leakage current or already exhausted leakage current values within the application.

Applications

Industrial electronics
Switched-mode power supplies
Telecommunications
Household goods
DC applications

Products

All

Single-Stage

Single Stage Low Leakage

Single-Stage-Advanced

Single Stage Advanced Low Leakage

Two-Stage

Two Stage Low Leakage

Order Code	Datasheet	Downloads	Status	I_R (A)	L (mH)	R_{DC max.} (mΩ)	R (kΩ)	C_X (µF)	C_Y (nF)	I_Leak (mA)	V_R (V)	V_{T AC} (V (AC))	V_{T DC} (V (DC))	W (mm)	L (mm)	H (mm)	Alpha-Rack
810911001	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS-Single-Stage (rev1).igs \| 2.1 MB STP Download_STP_WE-CLFS-Single-Stage (rev1).stp \| 529 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	20	300	1000	0.1	2.2	0.173	250	2000	1075	35	64	29	742707015
810911001112	SPEC	3 files CAD files ZIP IGS Download_IGS_810911001112 (rev1).igs \| 2.1 MB STP Download_STP_810911001112 (rev1).stp \| 529 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	20	300	1000	0.1	–	0	250	2000	1075	35	64	29	742707017
810911003	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS-Single-Stage (rev1).igs \| 2.1 MB STP Download_STP_WE-CLFS-Single-Stage (rev1).stp \| 529 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	10	100	1000	0.22	2.2	0.173	250	2000	1075	35	64	29	742707015
810911003112	SPEC	3 files CAD files ZIP IGS Download_IGS_810911003112 (rev1).igs \| 2.1 MB STP Download_STP_810911003112 (rev1).stp \| 529 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	10	100	1000	0.22	–	0	250	2000	1075	35	64	29	742707017
810911006	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS-Single-Stage (rev1).igs \| 2.1 MB STP Download_STP_WE-CLFS-Single-Stage (rev1).stp \| 529 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2.2	30	1000	0.47	4.7	0.369	250	2000	1075	35	64	29	742707015
810911006112	SPEC	3 files CAD files ZIP IGS Download_IGS_810911001112 (rev1).igs \| 2.1 MB STP Download_STP_810911001112 (rev1).stp \| 529 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2.2	30	1000	0.47	–	0	250	2000	1075	35	64	29	742707017
810911008	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS-Single-Stage (rev1).igs \| 2.1 MB STP Download_STP_WE-CLFS-Single-Stage (rev1).stp \| 529 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.2	20	1000	0.47	4.7	0.369	250	2000	1075	35	64	29	742707015
810911008112	SPEC	3 files CAD files ZIP IGS Download_IGS_810911001112 (rev1).igs \| 2.1 MB STP Download_STP_810911001112 (rev1).stp \| 529 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.2	20	1000	0.47	–	0	250	2000	1075	35	64	29	742707017
810911010	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS-Single-Stage (rev1).igs \| 2.1 MB STP Download_STP_WE-CLFS-Single-Stage (rev1).stp \| 529 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	15	680	0.68	6.8	0.534	250	2000	1075	35	64	29	742707015
810911010112	SPEC	3 files CAD files ZIP IGS Download_IGS_810911001112 (rev1).igs \| 2.1 MB STP Download_STP_810911001112 (rev1).stp \| 529 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	15	680	0.68	–	0	250	2000	1075	35	64	29	742707017
810912001	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS_Single-Stage Advanced (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Single-Stage Advanced (rev1).stp \| 523.7 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	20	300	1000	0.22	2.2	0.173	250	2000	1075	51.8	75	29	742707015
810912001112	SPEC	3 files CAD files ZIP IGS Download_IGS_810912001112 (rev1).igs \| 2 MB STP Download_STP_810912001112 (rev1).stp \| 523.7 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.5	20	300	1000	0.22	–	0	250	2000	1075	51.8	75	29	742707017
810912003	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS_Single-Stage Advanced (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Single-Stage Advanced (rev1).stp \| 523.7 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	10	100	1000	0.33	3.3	0.259	250	2000	1075	51.8	75	29	742707015
810912003112	SPEC	3 files CAD files ZIP IGS Download_IGS_810912001112 (rev1).igs \| 2 MB STP Download_STP_810912001112 (rev1).stp \| 523.7 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	10	100	1000	0.33	–	0	250	2000	1075	51.8	75000	29	742707017
810912006	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS_Single-Stage Advanced (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Single-Stage Advanced (rev1).stp \| 523.7 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	10	50	1000	0.33	3.3	0.259	250	2000	1075	51.8	75	29	742707015
810912006112	SPEC	3 files CAD files ZIP IGS Download_IGS_810912001112 (rev1).igs \| 2 MB STP Download_STP_810912001112 (rev1).stp \| 523.7 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	10	50	1000	0.33	–	0	250	2000	1075	51.8	75	29	742707017
810912008	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS_Single-Stage Advanced (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Single-Stage Advanced (rev1).stp \| 523.7 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	6	30	680	0.47	4.7	0.369	250	2000	1075	51.8	75	29	742707015
810912008112	SPEC	3 files CAD files ZIP IGS Download_IGS_810912001112 (rev1).igs \| 2 MB STP Download_STP_810912001112 (rev1).stp \| 523.7 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	6	30	680	0.47	–	0	250	2000	1075	51.8	75	29	742707017
810912010	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS_Single-Stage Advanced (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Single-Stage Advanced (rev1).stp \| 523.7 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	6	30	680	0.47	4.7	0.369	250	2000	1075	51.8	75	29	742707015
810912010112	SPEC	3 files CAD files ZIP IGS Download_IGS_810912001112 (rev1).igs \| 2 MB STP Download_STP_810912001112 (rev1).stp \| 523.7 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	6	30	680	0.47	–	0	250	2000	1075	51.8	75	29	742707017
810912012	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS_Single-Stage Advanced (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Single-Stage Advanced (rev1).stp \| 523.7 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	2.2	20	470	0.68	6.8	0.534	250	2000	1075	51.8	75	29	742707015
810912012112	SPEC	3 files CAD files ZIP IGS Download_IGS_810912001112 (rev1).igs \| 2 MB STP Download_STP_810912001112 (rev1).stp \| 523.7 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	2.2	20	470	0.68	–	0	250	2000	1075	51.8	75	29	742707017
810912014	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS_Single-Stage Advanced (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Single-Stage Advanced (rev1).stp \| 523.7 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.2	20	470	0.68	6.8	0.534	250	2000	1075	51.8	75	29	742707015
810912014112	SPEC	3 files CAD files ZIP IGS Download_IGS_810912001112 (rev1).igs \| 2 MB STP Download_STP_810912001112 (rev1).stp \| 523.7 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.2	20	470	0.68	–	0	250	2000	1075	51.8	75	29	742707017
810912020	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS_Single-Stage Advanced (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Single-Stage Advanced (rev1).stp \| 523.7 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1	10	330	1	10	0.785	250	2000	1075	51.8	75	29	742707015
810912020112	SPEC	3 files CAD files ZIP IGS Download_IGS_810912001112 (rev1).igs \| 2 MB STP Download_STP_810912001112 (rev1).stp \| 523.7 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1	10	330	1	–	0	250	2000	1075	51.8	75	29	742707017
810913006	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS-Two-Stage (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Two-Stage (rev1).stp \| 515.5 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	6	70	330	0.47	4.7	0.369	250	2000	1075	58.5	114.9	45	742707015
810913006112	SPEC	3 files CAD files ZIP IGS Download_IGS_810913006112 (rev1).igs \| 2 MB STP Download_STP_810913006112 (rev1).stp \| 724.3 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	6	70	330	0.47	–	0	250	2000	1075	58.5	114.9	45	742707017
810913010	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS-Two-Stage (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Two-Stage (rev1).stp \| 515.5 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	6	40	330	0.47	4.7	0.369	250	2000	1075	58.5	114.9	45	742707015
810913010112	SPEC	3 files CAD files ZIP IGS Download_IGS_810913006112 (rev1).igs \| 2 MB STP Download_STP_810913006112 (rev1).stp \| 724.3 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	6	40	330	0.47	–	0	250	2000	1075	58.5	114.9	45	742707017
810913014	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS-Two-Stage (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Two-Stage (rev1).stp \| 515.5 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.2	30	220	1	10	0.785	250	2000	1075	58.5	114.9	45	742707015
810913014112	SPEC	3 files CAD files ZIP IGS Download_IGS_810913006112 (rev1).igs \| 2 MB STP Download_STP_810913006112 (rev1).stp \| 724.3 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.2	30	220	1	–	0	250	2000	1075	58.5	114.9	45	742707017
810913020	SPEC	4 files CAD files ZIP IGS Download_IGS_WE-CLFS-Two-Stage (rev1).igs \| 2 MB STP Download_STP_WE-CLFS_Two-Stage (rev1).stp \| 515.5 KB Electric models ZIP PSP PSpice_WE-CLFS (rev22a).zip \| 759.1 KB S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2.2	20	220	1	10	0.785	250	2000	1075	58.5	114.9	45	742707015
810913020112	SPEC	3 files CAD files ZIP IGS Download_IGS_810913006112 (rev1).igs \| 2 MB STP Download_STP_810913006112 (rev1).stp \| 724.3 KB Electric models ZIP S S-Parameter_WE-CLFS (rev25c).zip \| 5.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2.2	20	220	1	–	0	250	2000	1075	58.5	114.9	45	742707017

	Order Code	Datasheet	Simulation
	810911001	SPEC
	810911001112	SPEC
	810911003	SPEC
	810911003112	SPEC
	810911006	SPEC
	810911006112	SPEC
	810911008	SPEC
	810911008112	SPEC
	810911010	SPEC
	810911010112	SPEC
	810912001	SPEC
	810912001112	SPEC
	810912003	SPEC
	810912003112	SPEC
	810912006	SPEC
	810912006112	SPEC
	810912008	SPEC
	810912008112	SPEC
	810912010	SPEC
	810912010112	SPEC
	810912012	SPEC
	810912012112	SPEC
	810912014	SPEC
	810912014112	SPEC
	810912020	SPEC
	810912020112	SPEC
	810913006	SPEC
	810913006112	SPEC
	810913010	SPEC
	810913010112	SPEC
	810913014	SPEC
	810913014112	SPEC
	810913020	SPEC
	810913020112	SPEC

Samples

	Order Code	Datasheet	Simulation	Downloads	Status	I_R (A)	L (mH)	R_{DC max.} (mΩ)	R (kΩ)	C_X (µF)	C_Y (nF)	I_Leak (mA)	V_R (V)	V_{T AC} (V (AC))	V_{T DC} (V (DC))	W (mm)	L (mm)	H (mm)	Alpha-Rack	Samples

New WE-CLFS S-Parameters Extend Down to 5 Hz for Greater Design Accuracy!

Designing for low-frequency performance just got easier. Würth Elektronik has released improved S-Parameter files for its WE-CLFS Line Filter Series, now starting at just 5 Hz. This update provides significantly more accurate modeling across the entire frequency spectrum.

What’s New?

No interpolated values in the lower frequency range up to 10 kHz
Detection of the real filter characteristic by measurements from a frequency of 5 Hz

Why It Matters:

Interpolation related deviations are corrected
More reliable low-frequency simulation results
Better prediction of EMC behaviour
Improved design accuracy for sensitive applications

New SPICE Models Available:

Updated models reflect the new measurements

To LT spice

Diagram about common mode insertion loss

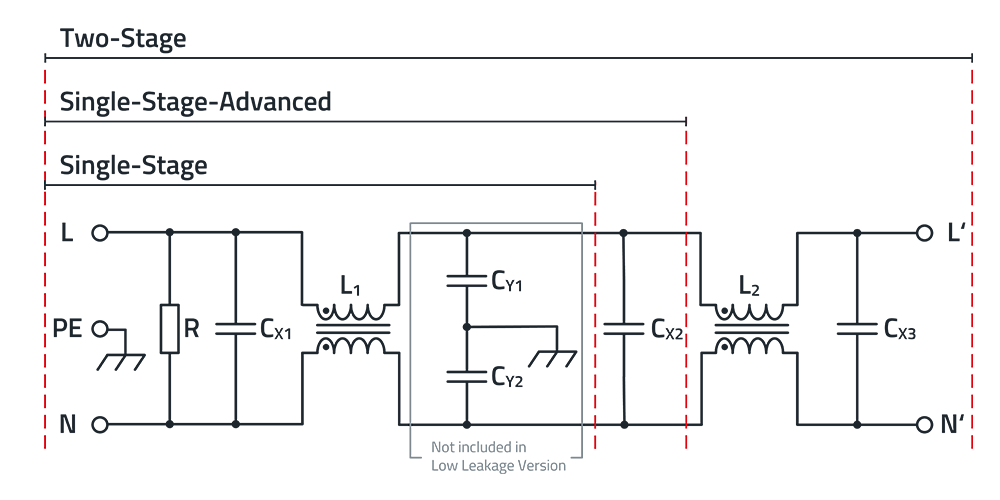

Line Filter Topologies

In line filters, different stages can be distinguished. Single stage filters offer attenuation of up to 75 to 80dB. In the improved single-stage filter, an additional X-capacitor provides better suppression of differential mode noise. The highest common and differential mode attenuation is offered by the two-stage filter, which includes an additional common mode choke and another X-capacitor.
