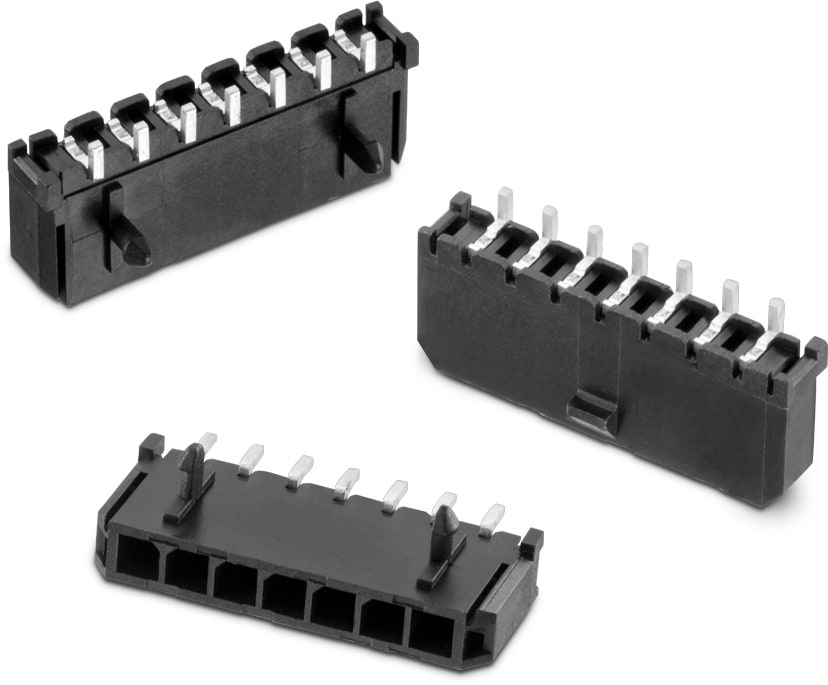

WR-MPC3 3.00 mm Male Header Single Row Right Angled with SMT Solder Tabs - SMT - Reel - Tin

General Informations
Pitch	3 mm
Rows	Single
Type	Right Angled
Operating Temperature	-40 °C up to +105 °C
Durability	25 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Tape and Reel

Material Properties
Insulator Material	LCP
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Pin Material	Copper Alloy
Pin Plating	Tin

Certification
UL Approval	E323964
Glow Wire Approval	Compliant [IEC 60335-1]

Products

Order Code	Datasheet	Downloads	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples
662102136022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662102136022 (rev1).pdf \| 109.1 KB IGS 662102136022 (rev1).iges \| 1.3 MB STP 662102136022 (rev1).stp \| 292.7 KB Download all 6 files as zip archive ZIP	2	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662103136022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662103136022 (rev1).pdf \| 114.6 KB IGS 662103136022 (rev1).iges \| 1.4 MB STP 662103136022 (rev1).stp \| 324.7 KB Download all 6 files as zip archive ZIP	3	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662104136022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662104136022 (rev1).pdf \| 120.3 KB IGS 662104136022 (rev1).iges \| 1.5 MB STP 662104136022 (rev1).stp \| 357.5 KB Download all 6 files as zip archive ZIP	4	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662105136022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662105136022 (rev1).pdf \| 125.6 KB IGS 662105136022 (rev1).iges \| 1.7 MB STP 662105136022 (rev1).stp \| 386.9 KB Download all 6 files as zip archive ZIP	5	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001
662106136022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662106136022 (rev1).pdf \| 133.8 KB IGS 662106136022 (rev1).iges \| 1.8 MB STP 662106136022 (rev1).stp \| 418.4 KB Download all 6 files as zip archive ZIP	6	3	Male	Right Angled	Single	SMT	5	250	10	Tin	Tape and Reel	662001

Order Code	Datasheet
662102136022	SPEC
662103136022	SPEC
662104136022	SPEC
662105136022	SPEC
662106136022	SPEC

Samples

Order Code	Datasheet	Downloads	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples

Mates with

WR-MPC3 3.00 mm Female Receptacle Housing Single Row

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC3 Micro PowerConnectors
