| Kind Properties | |
|---|---|
| Pitch | 1.25 mm |
| Gender | Female |
| Material Properties | |
|---|---|
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Type | Stamped |
| General Information | |
|---|---|
| Operating Temperature | -40 up to +85 °C |
| Compliance | RoHS |
| Working Voltage | 125 V (AC) |
| Contact Resistance | 20 mΩ |
| Wire Properties | |
|---|---|
| Stranded Wire Section (AWG) | 30 to 28 (AWG) |
| Packaging Properties | |
|---|---|
| Packaging | Bag; Big Reel; Small Reel |
Products
| Order Code | Datasheet | Downloads | Pitch (mm) | Gender | Type | IR (A) | Working Voltage (V (AC)) | PCB/Cable/Panel | Contact Resistance (mΩ) | Tol. R | Stranded Wire Section (AWG) | Packaging | Tools | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

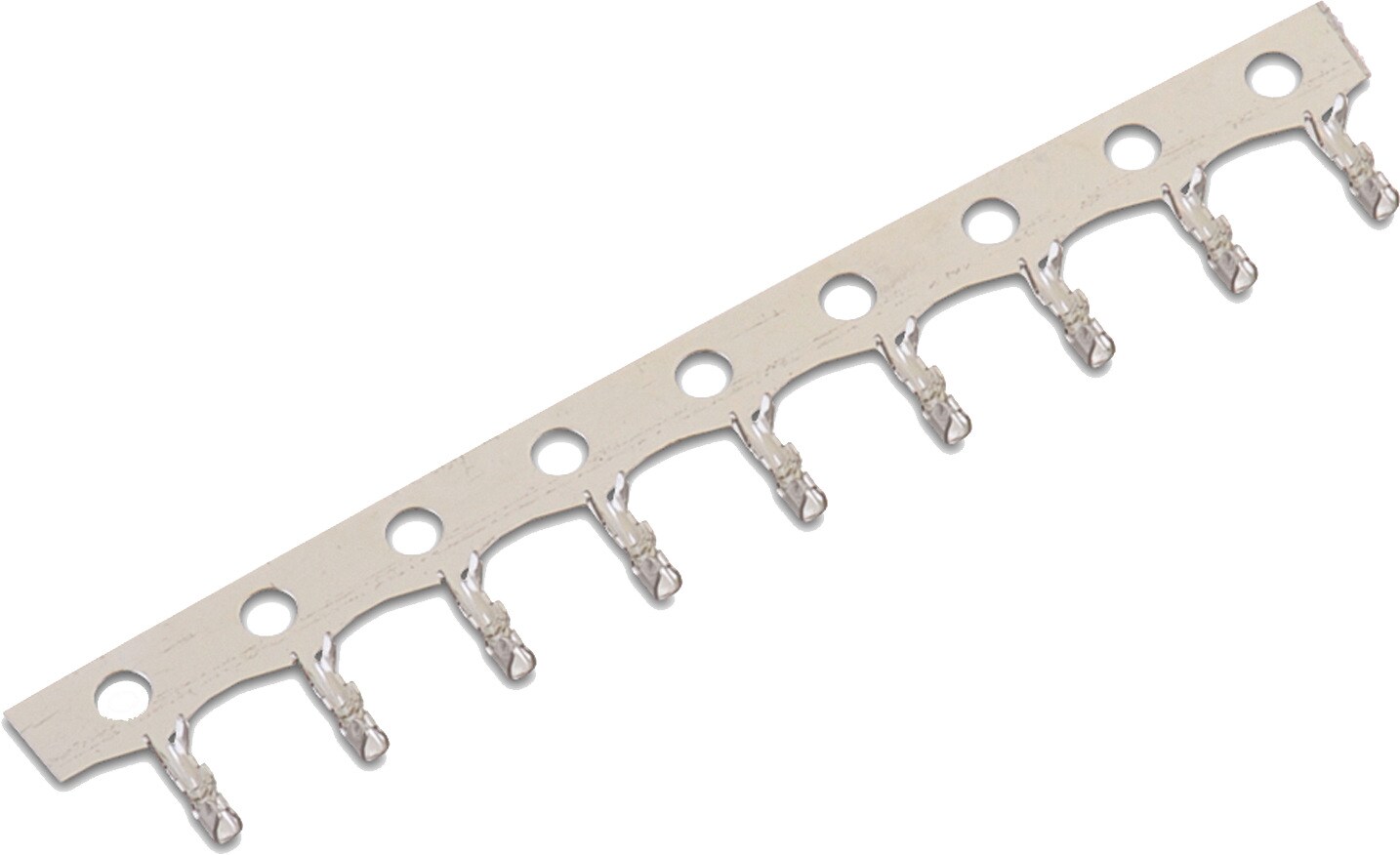

| 65300113722 | SPEC | 3 files | 1.25 | Female | Crimp Terminal | 1 | 125 | Cable | 20 | max. | 30 to 28 (AWG) | Big Reel | 600648230220 | – | |
| 65300113722DEC | SPEC | 3 files | 1.25 | Female | Crimp Terminal | 1 | 125 | Cable | 20 | max. | 30 to 28 (AWG) | Bag | 600648230220 | 612690 645001 | |
| 65310113722 | SPEC | 3 files | 1.25 | Female | Crimp Terminal | 1 | 125 | Cable | 20 | max. | 30 to 28 (AWG) | Small Reel | 600648230220 | – |
