| Article Properties | |
|---|---|
| Panel Thickness | 2.8 mm |
| Material Properties | |
|---|---|
| Insulator Material | PTFE |
| Insulator Color | White |
| Body Material | Brass |
| Nut Material | Brass |
| Nut Plating | Gold, min. 0.076µm over Nickel |
| Lock Washer Material | Brass |
| Lock Washer Plating | Gold, min. 0.076µm over Nickel |
| Body Plating | Gold, min. 0.076µm over Nickel |
| Kind Properties | |
|---|---|
| Interface | MIL-STD-348 |

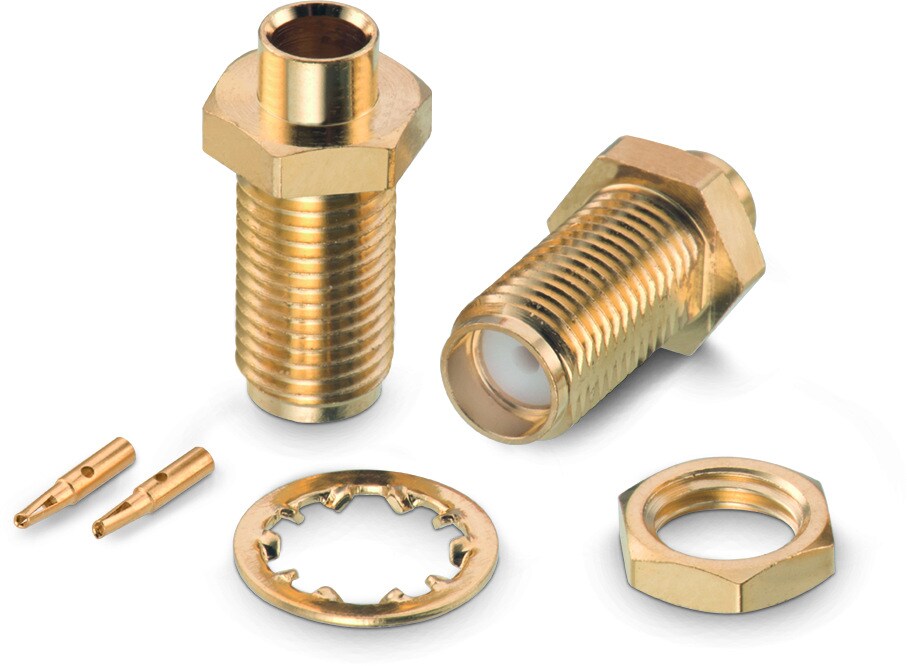

| Connector Type | SMA |
| Gender | Jack |
| Orientation Type | Straight |
| General Information | |
|---|---|
| Operating Temperature | -65 up to +165 °C |
| Electrical Properties | |
|---|---|
| f | DC~18 GHz |
| Mechanical Properties | |
|---|---|
| Mating Cycle | 500 Cycles |
| Packaging Properties | |
|---|---|
| Packaging | Bag |
Products
| Order Code | Datasheet | Downloads | Interface | Mount | Cable | Connector Type | Gender | Orientation Type | Operating Temperature | Center Contact | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60329421110720 | SPEC | 3 files | MIL-STD-348 | Solder | RG402/.141\" | SMA | Jack | Straight | -65 up to +165 °C | Ø 1.0 |
| Order Code | Datasheet |
|---|---|
| 60329421110720 | SPEC |
