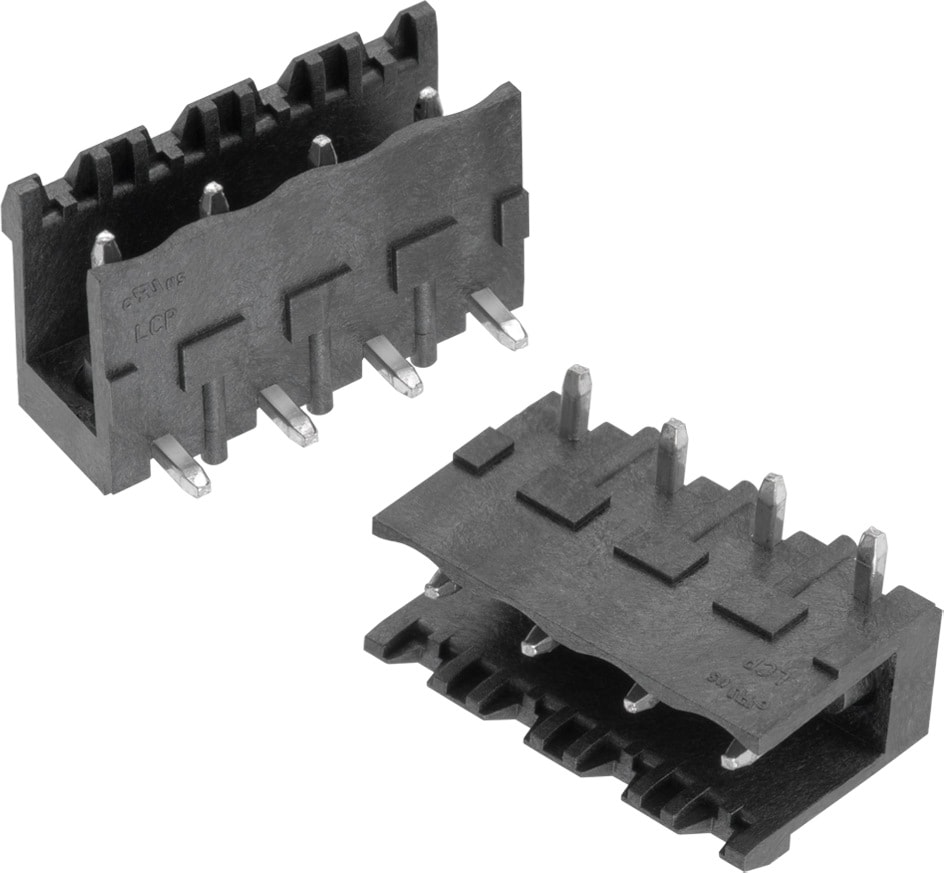

WR-TBL Series 7015B - 5.08 mm Open Horizontal PCB Header THR Type

Kind Properties
Pitch5.08 mm
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Contact PlatingTin
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus10 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]4000 V (AC)
Contact Resistance [cULus]20 mΩ
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeDesign Kit Samples
691701530002BSPEC
5 files 2 Pluggable PCB No Horizontal691001
691701530003BSPEC
5 files 3 Pluggable PCB No Horizontal612690
691701530004BSPEC
5 files 4 Pluggable PCB No Horizontal
691701530005BSPEC
5 files 5 Pluggable PCB No Horizontal
691701530006BSPEC
5 files 6 Pluggable PCB No Horizontal
691701530007BSPEC
5 files 7 Pluggable PCB No Horizontal
691701530008BSPEC
5 files 8 Pluggable PCB No Horizontal
691701530009BSPEC
5 files 9 Pluggable PCB No Horizontal
691701530010BSPEC
5 files 10 Pluggable PCB No Horizontal
691701530011BSPEC
5 files 11 Pluggable PCB No Horizontal
691701530012BSPEC
5 files 12 Pluggable PCB No Horizontal
Order Code Data­sheet
691701530002BSPEC
691701530003BSPEC
691701530004BSPEC
691701530005BSPEC
691701530006BSPEC
691701530007BSPEC
691701530008BSPEC
691701530009BSPEC
691701530010BSPEC
691701530011BSPEC
691701530012BSPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
