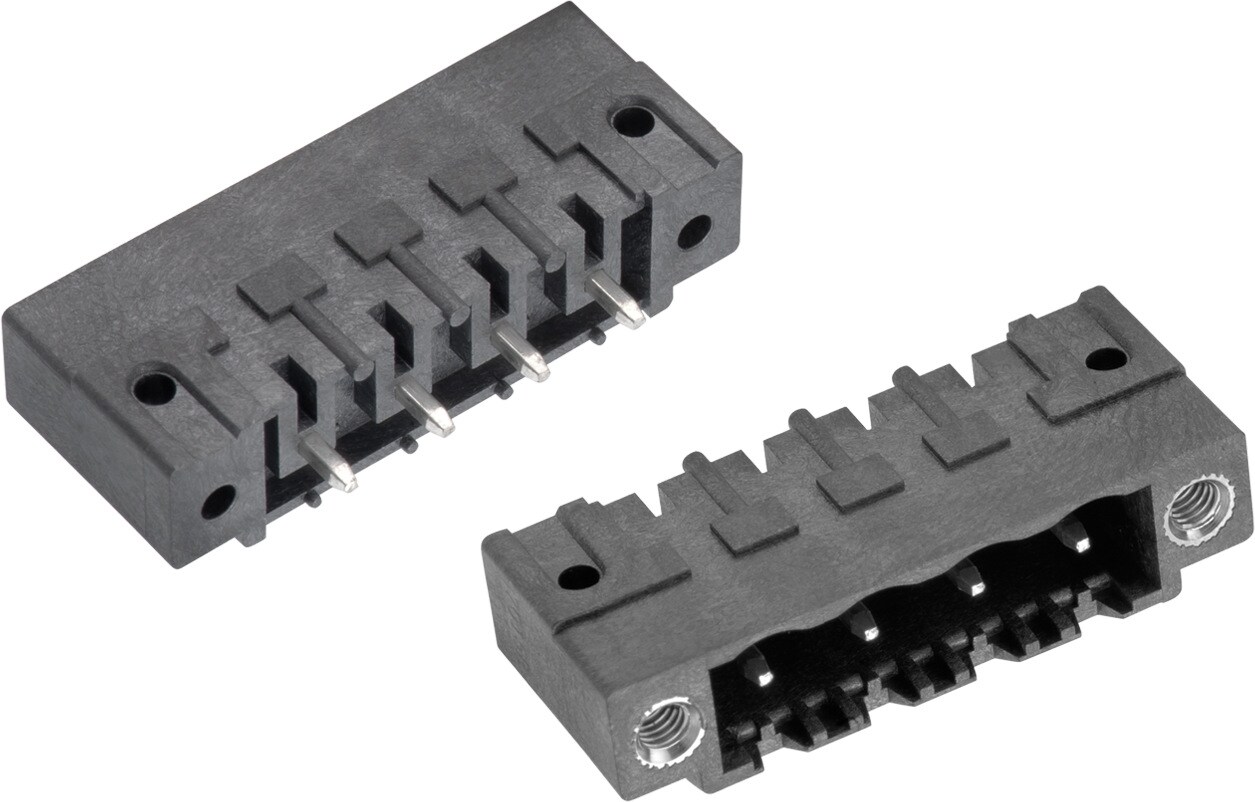

WR-TBL Series 7015B - 5.08 mm Close Vertical PCB Header THR Type w. Flanges | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyTerminal Blocks Product sub-familyPluggable Connector PitchPitch 5.08 mm PitchPCB PitchWR-TBL Series 7015B - 5.08 mm Close Vertical PCB Header THR Type w. Flanges

Kind Properties
Pitch	5.08 mm

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

General Information
Operating Temperature	-40 up to +105 °C
Compliance	RoHS

Electrical Properties
I_{R cULus}	10 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	4000 V (AC)
Contact Resistance [cULus]	20 mΩ

Certification
cULus Approval	E315414

Application Notes

ANE006 Derating Of Connectors
PDF

Products

Order Code	Datasheet	Downloads	Pins (mm)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples
691701520002B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520002B_1 (rev1).pdf \| 137.9 KB IGS 691701520002B (rev1).igs \| 1 MB STP 691701520002B (rev1).stp \| 352.7 KB	2	Pluggable	PCB	No	Vertical	691001
691701520003B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520003B_1 (rev1).pdf \| 154.4 KB IGS 691701520003B (rev1).igs \| 1.2 MB STP 691701520003B (rev1).stp \| 418.5 KB	3	Pluggable	PCB	No	Vertical	612690
691701520004B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520004B_1 (rev1).pdf \| 168.9 KB IGS 691701520004B (rev1).igs \| 1.4 MB STP 691701520004B (rev1).stp \| 495.8 KB	4	Pluggable	PCB	No	Vertical	–
691701520005B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520005B_1 (rev1).pdf \| 185.2 KB IGS 691701520005B (rev1).igs \| 1.6 MB STP 691701520005B (rev1).stp \| 573 KB	5	Pluggable	PCB	No	Vertical	–
691701520006B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520006B_1 (rev1).pdf \| 198.5 KB IGS 691701520006B (rev1).igs \| 1.9 MB STP 691701520006B (rev1).stp \| 652.5 KB	6	Pluggable	PCB	No	Vertical	–
691701520007B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520007B_1 (rev1).pdf \| 217.1 KB IGS 691701520007B (rev1).igs \| 2.1 MB STP 691701520007B (rev1).stp \| 732.4 KB	7	Pluggable	PCB	No	Vertical	–
691701520008B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520008B_1 (rev1).pdf \| 233.9 KB IGS 691701520008B (rev1).igs \| 2.3 MB STP 691701520008B (rev1).stp \| 812.3 KB	8	Pluggable	PCB	No	Vertical	–
691701520009B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520009B_1 (rev1).pdf \| 251.5 KB IGS 691701520009B (rev1).igs \| 2.5 MB STP 691701520009B (rev1).stp \| 892.6 KB	9	Pluggable	PCB	No	Vertical	–
691701520010B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520010B_1 (rev1).pdf \| 277.8 KB IGS 691701520010B (rev1).igs \| 2.8 MB STP 691701520010B (rev1).stp \| 973.2 KB	10	Pluggable	PCB	No	Vertical	–
691701520011B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520011B_1 (rev1).pdf \| 295.4 KB IGS 691701520011B (rev1).igs \| 3 MB STP 691701520011B (rev1).stp \| 1 MB	11	Pluggable	PCB	No	Vertical	–
691701520012B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev19a).IntLib \| 148.4 MB CDS Cadence_WR-TBL (rev20b).zip \| 205.3 MB EAG Eagle_WR-TBL Pluggable Connector (rev20b).lbr \| 3.6 MB CAD files ZIP 3D 691701520012B_1 (rev1).pdf \| 305.2 KB IGS 691701520012B (rev1).igs \| 3.2 MB STP 691701520012B (rev1).stp \| 1.1 MB	12	Pluggable	PCB	No	Vertical	–

Order Code	Datasheet
691701520002B	SPEC
691701520003B	SPEC
691701520004B	SPEC
691701520005B	SPEC
691701520006B	SPEC
691701520007B	SPEC
691701520008B	SPEC
691701520009B	SPEC
691701520010B	SPEC
691701520011B	SPEC
691701520012B	SPEC

Samples

Order Code	Datasheet	Downloads	Pins (mm)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples

Mates with

WR-TBL Series 3075 - 5.08 mm Reversed Gender Vertical PCB Header

WR-TBL Series 3095 - 5.08 mm Reversed Gender Horizontal PCB Header

WR-TBL Series 3435 - 5.08 mm Horizontal with Flanges and Hook on Wire Side

WR-TBL Series 3455 - 5.08 mm Horizontal with Flanges & Hook on Back Side

WR-TBL Series 351 - 5.08 mm Vertical

WR-TBL Series 373B - 5.08 mm Vertical with Stamping Clamp

WR-TBL Series 374B - 5.08 mm Vertical with Flanges & Stamping Clamp

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-TBL Terminal Blocks
