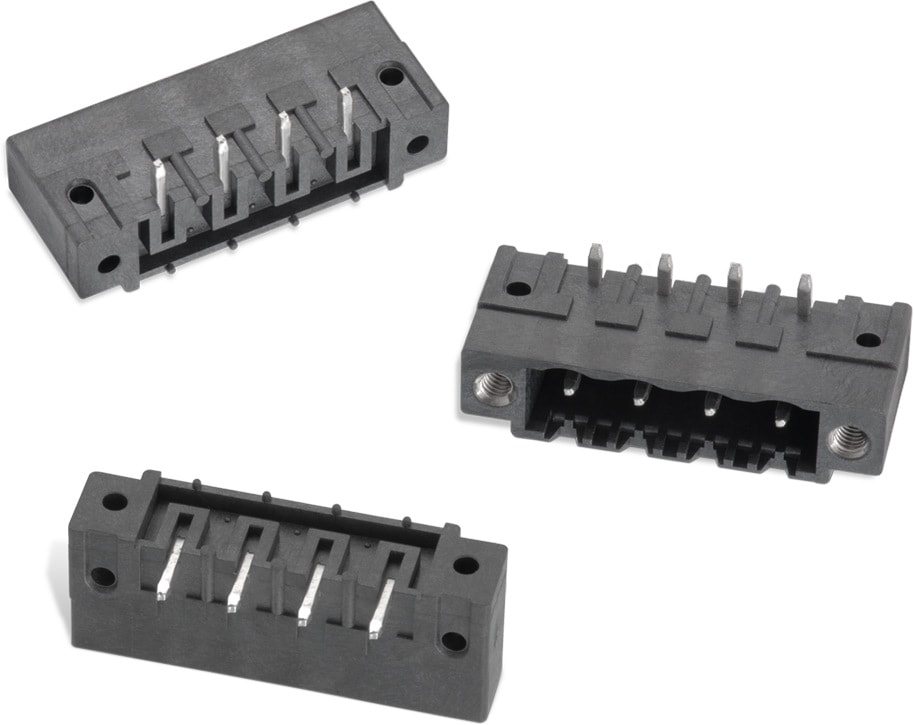

WR-TBL Series 7015B - 5.08 mm Closed Horizontal PCB Header THR Type with Flanges

Kind Properties
Pitch5.08 mm
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Contact PlatingTin
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus10 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]4000 V (AC)
Contact Resistance [cULus]20 mΩ
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeDesign Kit Samples
691701550002BSPEC
6 files 2 Pluggable PCB No Horizontal691001
691701550003BSPEC
6 files 3 Pluggable PCB No Horizontal612690
691701550004BSPEC
6 files 4 Pluggable PCB No Horizontal
691701550005BSPEC
6 files 5 Pluggable PCB No Horizontal
691701550006BSPEC
6 files 6 Pluggable PCB No Horizontal
691701550007BSPEC
6 files 7 Pluggable PCB No Horizontal
691701550008BSPEC
6 files 8 Pluggable PCB No Horizontal
691701550009BSPEC
6 files 9 Pluggable PCB No Horizontal
691701550010BSPEC
6 files 10 Pluggable PCB No Horizontal
691701550011BSPEC
6 files 11 Pluggable PCB No Horizontal
691701550012BSPEC
6 files 12 Pluggable PCB No Horizontal
Order Code Data­sheet
691701550002BSPEC
691701550003BSPEC
691701550004BSPEC
691701550005BSPEC
691701550006BSPEC
691701550007BSPEC
691701550008BSPEC
691701550009BSPEC
691701550010BSPEC
691701550011BSPEC
691701550012BSPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
