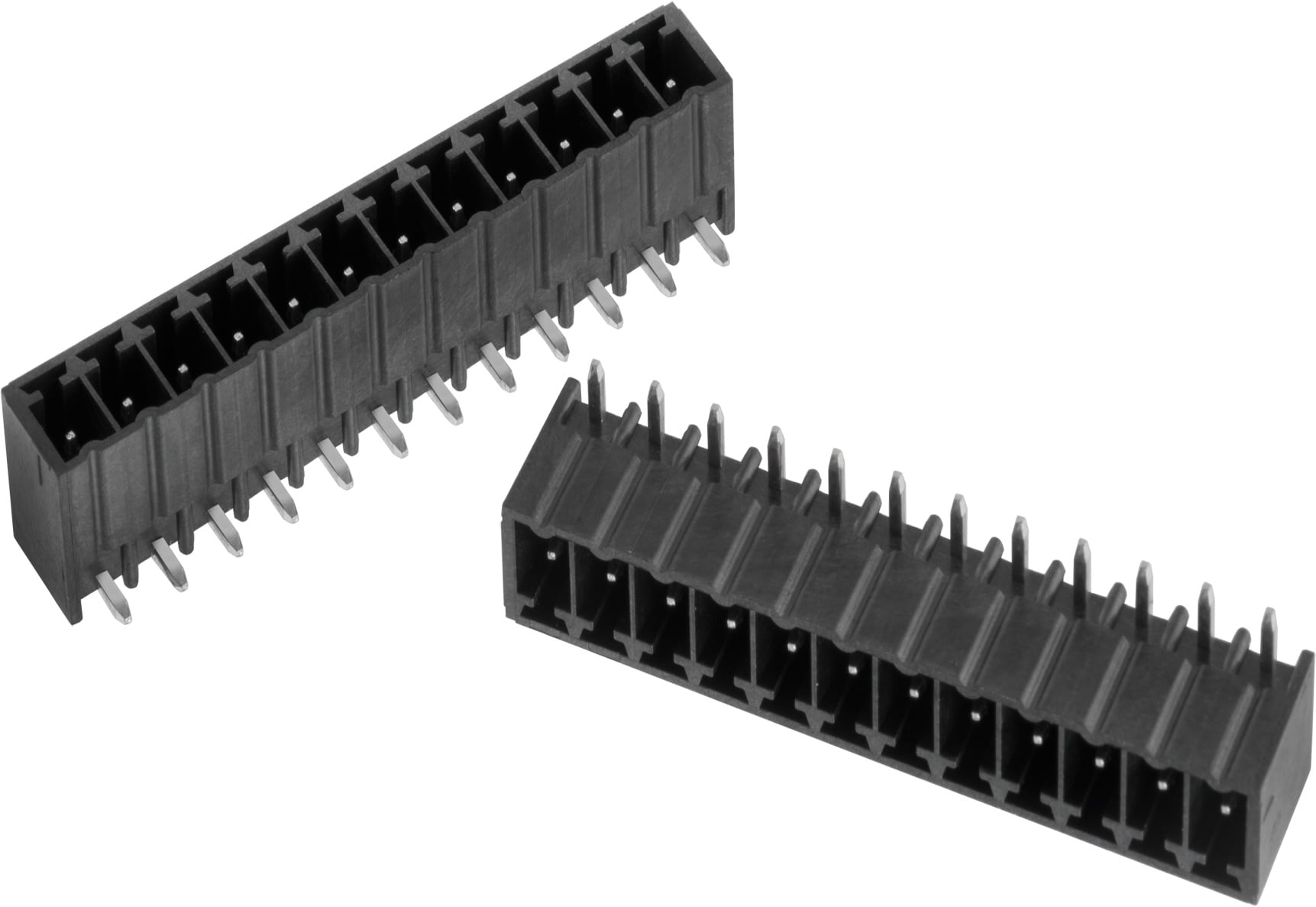

WR-TBL Series 7013 - 3.81 mm Horizontal PCB Header THR Type

Kind Properties
Pitch3.81 mm
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Contact PlatingTin
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus10 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]2500 V (AC)
Contact Resistance [cULus]20 mΩ
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeDesign Kit Samples
691701340002BSPEC
6 files 2 Pluggable PCB No Horizontal
691701340003BSPEC
6 files 3 Pluggable PCB No Horizontal612690
691001
691701340004BSPEC
6 files 4 Pluggable PCB No Horizontal
691701340005BSPEC
6 files 5 Pluggable PCB No Horizontal
691701340006BSPEC
6 files 6 Pluggable PCB No Horizontal
691701340007BSPEC
6 files 7 Pluggable PCB No Horizontal
691701340008BSPEC
6 files 8 Pluggable PCB No Horizontal
691701340009BSPEC
6 files 9 Pluggable PCB No Horizontal
691701340010BSPEC
6 files 10 Pluggable PCB No Horizontal
691701340011BSPEC
6 files 11 Pluggable PCB No Horizontal
691701340012BSPEC
6 files 12 Pluggable PCB No Horizontal
Order Code Data­sheet
691701340002BSPEC
691701340003BSPEC
691701340004BSPEC
691701340005BSPEC
691701340006BSPEC
691701340007BSPEC
691701340008BSPEC
691701340009BSPEC
691701340010BSPEC
691701340011BSPEC
691701340012BSPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
