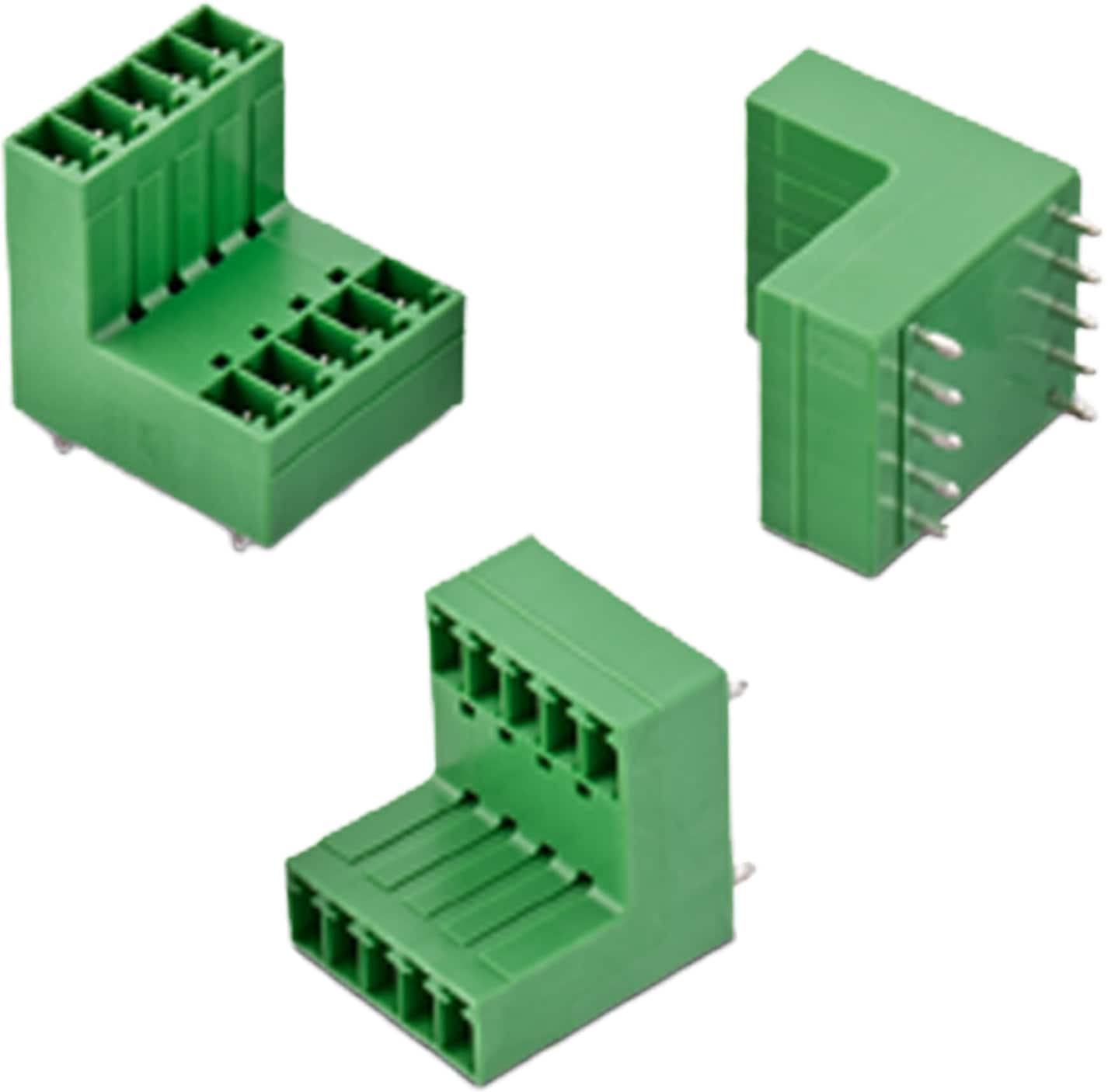

WR-TBL Series 356B - 3.81 mm Double Level Vertical Male PCB Header

Kind Properties
Pitch3.81 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Contact PlatingTin
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus10 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]2000 V (AC)
Contact Resistance [cULus]20 mΩ
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeDesign Kit Samples
691356300004BSPEC
4 files 4 Pluggable PCB No Double Level Vertical612690
691356300006BSPEC
4 files 6 Pluggable PCB No Double Level Vertical
691356300008BSPEC
4 files 8 Pluggable PCB No Double Level Vertical
691356300010BSPEC
4 files 10 Pluggable PCB No Double Level Vertical
691356300012BSPEC
6 files 12 Pluggable PCB No Double Level Vertical
Order Code Data­sheet
691356300004BSPEC
691356300006BSPEC
691356300008BSPEC
691356300010BSPEC
691356300012BSPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
