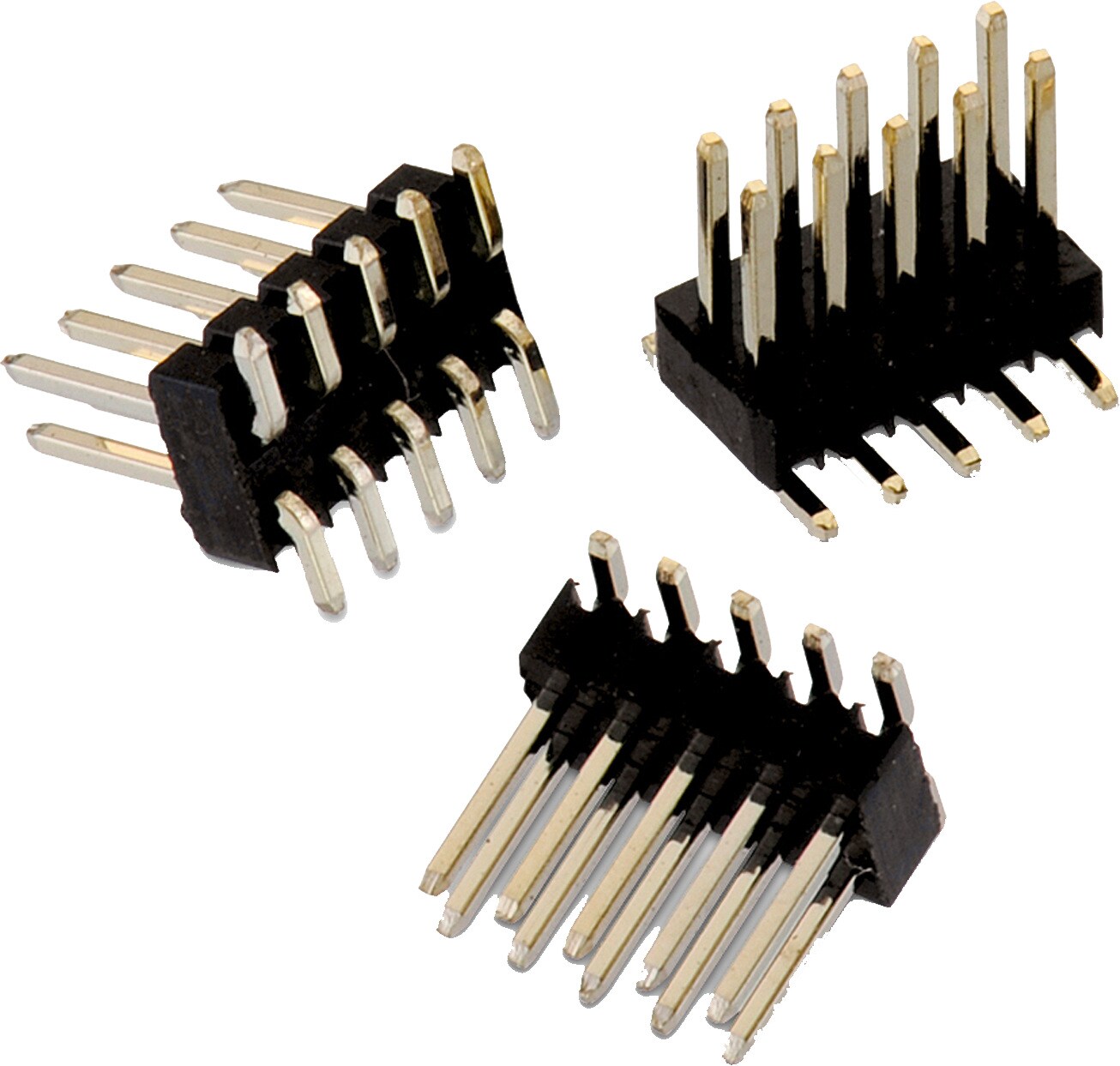

WR-PHD 1.27 mm SMT Dual Pin Header, H=3.80 mm (Reel)

Article Properties
Pins4; 6; 8; 10; 14; 16; 20; 28; 40; 44; 50
Kind Properties
Pitch1.27 mm
Quality Class3 as per CECC 75 301-802
RowsDual
GenderPin Header
TypeStraight
Material Properties
Insulator MaterialPA9T
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
ComplianceLead free / RoHS
Electrical Properties
IR1 A
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingTape and Reel with Cap

Products

Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
PackagingDesign Kit Samples
62130421021SPEC
6 files 4 Dual Pin Header Straight 1 Tape and Reel with Cap613001
62130621021SPEC
6 files 6 Dual Pin Header Straight 1 Tape and Reel with Cap
62130821021SPEC
6 files 8 Dual Pin Header Straight 1 Tape and Reel with Cap613001
62131021021SPEC
6 files 10 Dual Pin Header Straight 1 Tape and Reel with Cap613001
62131421021SPEC
6 files 14 Dual Pin Header Straight 1 Tape and Reel with Cap613001
62131621021SPEC
6 files 16 Dual Pin Header Straight 1 Tape and Reel with Cap
62132021021SPEC
6 files 20 Dual Pin Header Straight 1 Tape and Reel with Cap613001
62132821021SPEC
6 files 28 Dual Pin Header Straight 1 Tape and Reel with Cap
62134021021SPEC
6 files 40 Dual Pin Header Straight 1 Tape and Reel with Cap
62134421021SPEC
6 files 44 Dual Pin Header Straight 1 Tape and Reel with Cap
62135021021SPEC
6 files 50 Dual Pin Header Straight 1 Tape and Reel with Cap
Order Code Data­sheet
62130421021SPEC
62130621021SPEC
62130821021SPEC
62131021021SPEC
62131421021SPEC
62131621021SPEC
62132021021SPEC
62132821021SPEC
62134021021SPEC
62134421021SPEC
62135021021SPEC
Samples
Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
