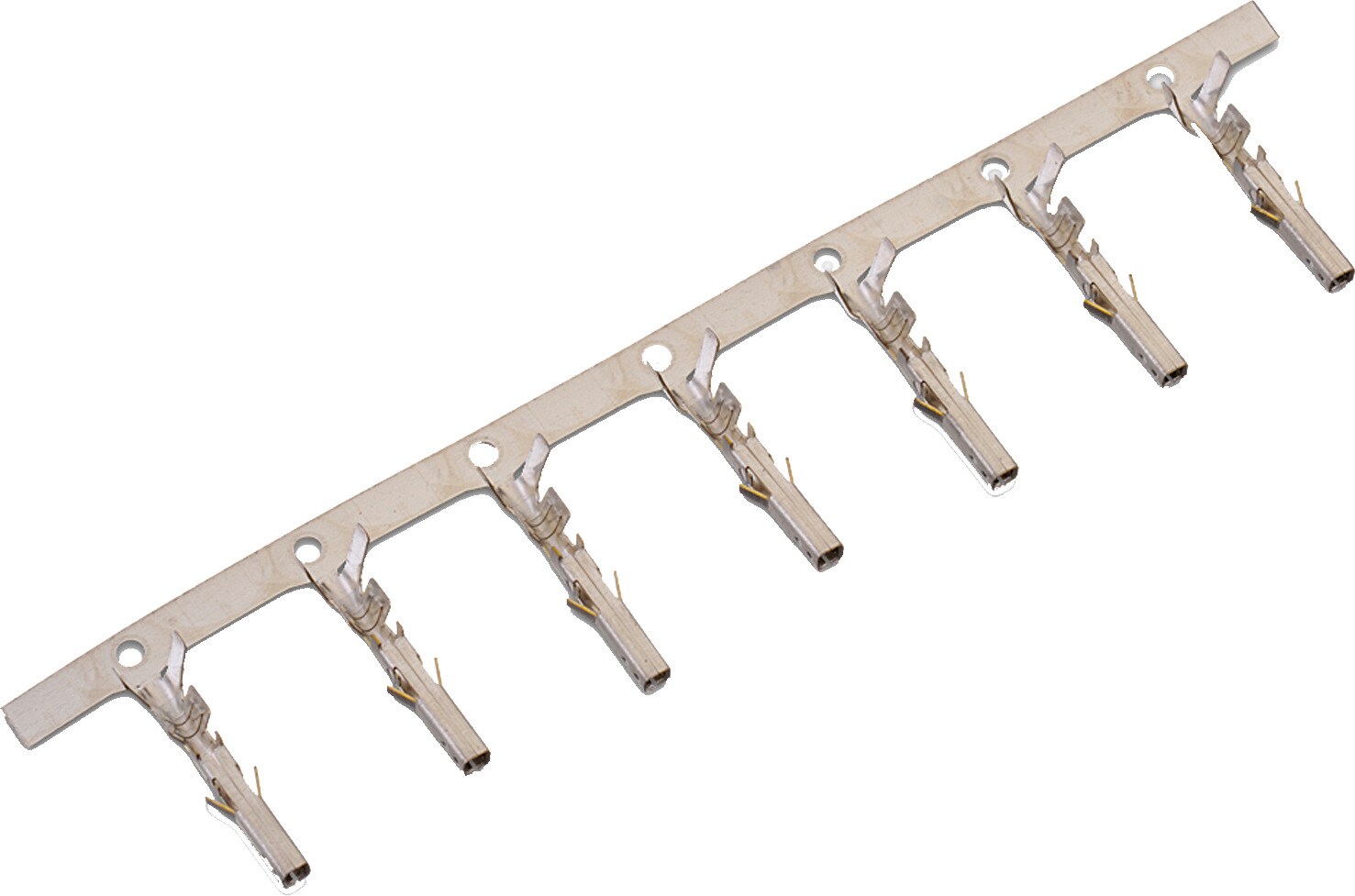

WR-MPC4 4.20 mm Female Terminal | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-MPC4 TypeTerminals Product seriesWR-MPC4 4.20 mm Female Terminal

Kind Properties
Pitch	4.2 mm
Gender	Female

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-40 up to +105 °C
Compliance	RoHS
Working Voltage	600 V (AC)
Contact Resistance	10 mΩ

Wire Properties
Stranded Wire Section (AWG)	16 (AWG); 18 to 24 (AWG); 22 to 28 (AWG)
Packaging	Bag; Big Reel; Small Reel

Products

Order Code	Datasheet	Downloads	Pitch (mm)	Gender	Type	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Stranded Wire Section (AWG)	Packaging	Tools	Design Kit	Use with	Samples
64900513722	SPEC	3 files CAD files ZIP 3D 64900513722 (rev1).pdf \| 209.1 KB IGS 64900513722 (rev1).igs \| 2.4 MB STP 64900513722 (rev1).stp \| 951.7 KB Download all 3 files as zip archive ZIP	4.2	Female	Crimp Terminal	9	600	Cable	10	max.	4.6	16 (AWG)	Big Reel	600420420001 600649405	–	–
64900613722	SPEC	3 files CAD files ZIP 3D 64900613722 (rev1).pdf \| 208.6 KB IGS 64900613722 (rev1).igs \| 2.4 MB STP 64900613722 (rev1).stp \| 937.1 KB Download all 3 files as zip archive ZIP	4.2	Female	Crimp Terminal	9	600	Cable	10	max.	4.5	18 to 24 (AWG)	Big Reel	600420420001 600649406	–	–
64900713722	SPEC	3 files CAD files ZIP 3D 64900713722 (rev1).pdf \| 251.4 KB IGS 64900713722 (rev1).igs \| 2.4 MB STP 64900713722 (rev1).stp \| 955 KB Download all 3 files as zip archive ZIP	4.2	Female	Crimp Terminal	9	600	Cable	10	max.	2.3	22 to 28 (AWG)	Big Reel	600420420001 600649407	–	–
64900513722DEC	SPEC	–	4.2	Female	Crimp Terminal	9	600	Cable	10	max.	4.6	16 (AWG)	Bag	600420420001	649001	–
64900613722DEC	SPEC	–	4.2	Female	Crimp Terminal	9	600	Cable	10	max.	4.5	18 to 24 (AWG)	Bag	600420420001	612690 649001	–
64900713722DEC	SPEC	–	4.2	Female	Crimp Terminal	9	600	Cable	10	max.	2.3	22 to 28 (AWG)	Bag	600420420001	649001	600001
64910513722	SPEC	–	4.2	Female	Crimp Terminal	9	600	Cable	10	max.	4.5	16 (AWG)	Small Reel	600420420001 600649405	–	–
64910613722	SPEC	–	4.2	Female	Crimp Terminal	9	600	Cable	10	max.	4.5	18 to 24 (AWG)	Small Reel	600649406	–	–
64910713722	SPEC	–	4.2	Female	Crimp Terminal	9	600	Cable	10	max.	2.3	22 to 28 (AWG)	Small Reel	600420420001 600649407	–	–

Order Code	Datasheet
64900513722	SPEC
64900613722	SPEC
64900713722	SPEC
64900513722DEC	SPEC
64900613722DEC	SPEC
64900713722DEC	SPEC
64910513722	SPEC
64910613722	SPEC
64910713722	SPEC

Samples

Order Code	Datasheet	Downloads	Pitch (mm)	Gender	Type	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Stranded Wire Section (AWG)	Packaging	Tools	Design Kit	Use with	Samples

Tools

WR-MPC4 4.20 mm Automatic Crimping Tool: 600649405

WR-MPC4 4.20 mm Automatic Crimping Tool: 600649406

WR-MPC4 4.20 mm Automatic Crimping Tool: 600649407

Suitable for

WR-MPC4 4.20 mm Female Dual Row Plug

WR-MPC4 4.20 mm Female Single Row Plug

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-MPC4 Mini Power Connectors
