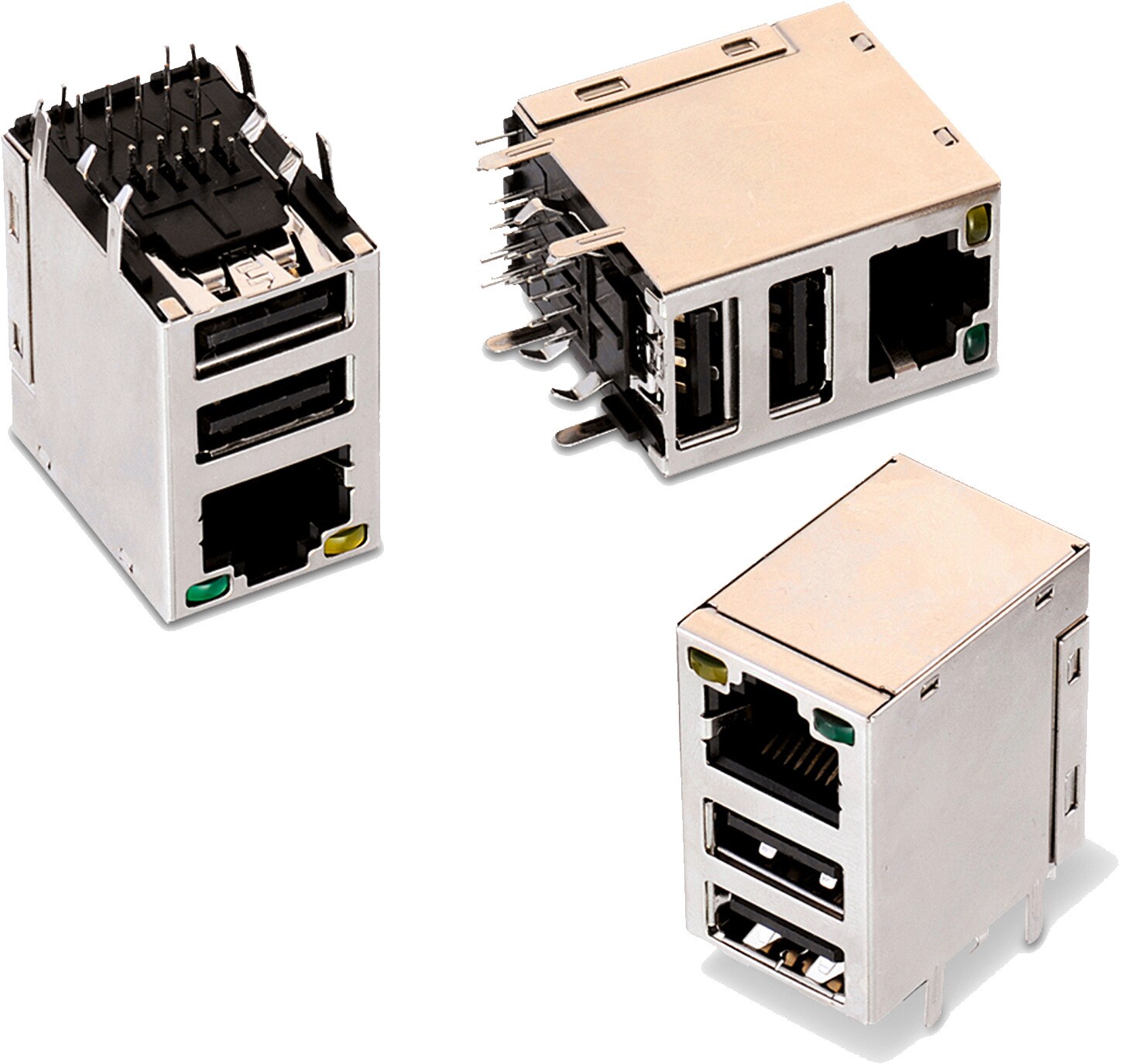

WR-MJ Modular Jack Tab Up . LED 8P8C Dual USB | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyInput/Output Connectors Product sub-familyWR-MJ Modular Jacks OrientationHorizontal HousingShielded Product seriesWR-MJ Modular Jack Tab Up . LED 8P8C Dual USB

Kind Properties
LED	yellow-green

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	SPCC
Shielding Plating	Nickel

General Information
Operating Temperature	-25 up to +85 °C

Electrical Properties
Working Voltage	120 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	20 mΩ
R_ISO	500 MΩ

Packaging Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	xPxC	LED	Type	Mount	Application System	Design Kit	Samples
615016338621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev20b).IntLib \| 19.7 MB CDS Cadence_WR-MJ (rev20a).zip \| 80.9 MB EAG Eagle_WR-MJ (rev20b).lbr \| 523.7 KB CAD files ZIP 3D 615016338621_1 (rev1).pdf \| 875.9 KB IGS 615016338621 (rev1).iges \| 13.5 MB STP 615016338621 (rev1).stp \| 2.9 MB	8P8C	yellow-green	Horizontal	THT	CAT 3	612690 749615

Order Code	Datasheet
615016338621	SPEC

Samples

Order Code	Datasheet	Downloads	xPxC	LED	Type	Mount	Application System	Design Kit	Samples

Suitable for

Signal Transformer

Use with

WA-PCCA Plastic Caps for RJ45 Modular Jack

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WE-LAN & WERI Connectors
