MagI³C-FDSM Fixed Step Down Regulator Module | Power Modules (MagI³C Series) | Würth Elektronik Product Catalog

Product unitPower Modules (MagI³C Series)Product groupStep Down Converter Product familyFixed Output Voltage Product seriesMagI³C-FDSM Fixed Step Down Regulator Module

Characteristics

Simplest design (no power supply knowledge required)
Leaded through-hole package for easy manufacturing and prototyping
Stand alone solution (CIN and COUT integrated, no external components)
L78x series linear regulator replacement (no heatsink required)
Low conducted and radiated EMI (compliant to EN55022 class B)

Applications

Point-of-Load from 24V, 18V, 15V, 12V, 9V rail
Replacement for linear regulators
Interface and microcontroller supply
Industrial, Test & Measurement, Medical applications
System power supplies

Products

SIP-3

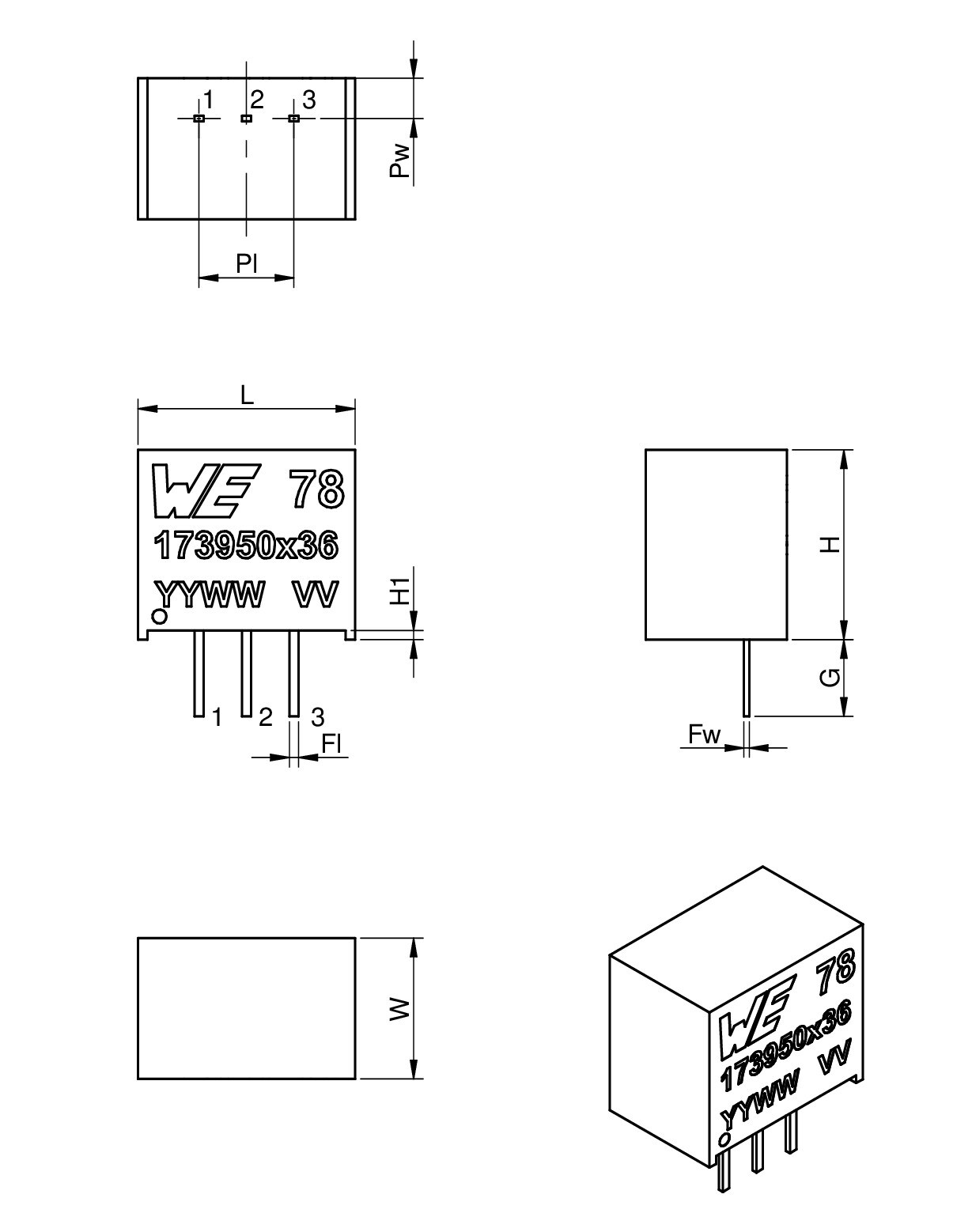

Order Code	Datasheet	Simulation	Downloads	V_in (V)	V_out (V)	I_out (A)	L (mm)	W (mm)	H (mm)	Evaluation Board	Filter Bag	Samples
173950336	SPEC		5 files EDA models: Components ZIP ALT MagIC-FDSM (rev20a).IntLib \| 401 KB ZUK Cadstar_FDSM (rev19a).zip \| 22.1 KB CDS Cadence_MagI3C-FDSM (rev20a).zip \| 2 MB EAG Eagle_MAGIC-FDSM (rev20a).lbr \| 24 KB CAD files ZIP STP STP_173950x36 (rev1).stp \| 521.1 KB Download all 5 files as zip archive ZIP	4.75 - 36	3.3	0.5	11.6	7.55	10.16	17800FDSM	173001
173950378	SPEC		6 files EDA models: Components ZIP ALT MagIC-FDSM (rev20a).IntLib \| 401 KB ZUK Cadstar_FDSM (rev19a).zip \| 22.1 KB CDS Cadence_MagI3C-FDSM (rev20a).zip \| 2 MB EAG Eagle_MAGIC-FDSM (rev20a).lbr \| 24 KB CAD files ZIP IGS MagIC-FDSM_SIP-3 (rev1).IGS \| 110 KB STP MagIC-FDSM_SIP-3 (rev1).stp \| 521.1 KB Download all 6 files as zip archive ZIP	6 - 28	3.3	0.5	11.6	8.5	10.5	17800FDSM	–
173010335	SPEC		6 files EDA models: Components ZIP ALT MagIC-FDSM (rev20a).IntLib \| 401 KB ZUK Cadstar_FDSM (rev19a).zip \| 22.1 KB CDS Cadence_MagI3C-FDSM (rev20a).zip \| 2 MB EAG Eagle_MAGIC-FDSM (rev20a).lbr \| 24 KB CAD files ZIP IGS Download_IGS_173010x35 (rev1).igs \| 1.8 MB STP Download_STP_173010x35 (rev1).stp \| 552.8 KB Download all 6 files as zip archive ZIP	6 - 36	3.3	1	11.6	8	10.4	17800FDSM	–
173950536	SPEC		5 files EDA models: Components ZIP ALT MagIC-FDSM (rev20a).IntLib \| 401 KB ZUK Cadstar_FDSM (rev19a).zip \| 22.1 KB CDS Cadence_MagI3C-FDSM (rev20a).zip \| 2 MB EAG Eagle_MAGIC-FDSM (rev20a).lbr \| 24 KB CAD files ZIP STP STP_173950x36 (rev1).stp \| 521.1 KB Download all 5 files as zip archive ZIP	6.5 - 36	5	0.5	11.6	7.55	10.16	17800FDSM	173001
173950578	SPEC		6 files EDA models: Components ZIP ALT MagIC-FDSM (rev20a).IntLib \| 401 KB ZUK Cadstar_FDSM (rev19a).zip \| 22.1 KB CDS Cadence_MagI3C-FDSM (rev20a).zip \| 2 MB EAG Eagle_MAGIC-FDSM (rev20a).lbr \| 24 KB CAD files ZIP IGS MagIC-FDSM_SIP-3 (rev1).IGS \| 110 KB STP MagIC-FDSM_SIP-3 (rev1).stp \| 521.1 KB Download all 6 files as zip archive ZIP	7 - 28	5	0.5	11.6	8.5	10.5	17800FDSM	–
173010378	SPEC		6 files EDA models: Components ZIP ALT MagIC-FDSM (rev20a).IntLib \| 401 KB ZUK Cadstar_FDSM (rev19a).zip \| 22.1 KB CDS Cadence_MagI3C-FDSM (rev20a).zip \| 2 MB EAG Eagle_MAGIC-FDSM (rev20a).lbr \| 24 KB CAD files ZIP IGS MagIC-FDSM_SIP-3 (rev1).IGS \| 110 KB STP MagIC-FDSM_SIP-3 (rev1).stp \| 521.1 KB Download all 6 files as zip archive ZIP	7 - 28	3.3	1	11.6	8.5	10.5	17800FDSM	–
173010342	SPEC		6 files EDA models: Components ZIP ALT MagIC-FDSM (rev20a).IntLib \| 401 KB ZUK Cadstar_FDSM (rev19a).zip \| 22.1 KB CDS Cadence_MagI3C-FDSM (rev20a).zip \| 2 MB EAG Eagle_MAGIC-FDSM (rev20a).lbr \| 24 KB CAD files ZIP IGS MagIC-FDSM_SIP-3 (rev1).IGS \| 110 KB STP MagIC-FDSM_SIP-3 (rev1).stp \| 521.1 KB Download all 6 files as zip archive ZIP	7 - 42	3.3	1	11.6	8.5	10.5	17800FDSM	–
173010578	SPEC		6 files EDA models: Components ZIP ALT MagIC-FDSM (rev20a).IntLib \| 401 KB ZUK Cadstar_FDSM (rev19a).zip \| 22.1 KB CDS Cadence_MagI3C-FDSM (rev20a).zip \| 2 MB EAG Eagle_MAGIC-FDSM (rev20a).lbr \| 24 KB CAD files ZIP IGS MagIC-FDSM_SIP-3 (rev1).IGS \| 110 KB STP MagIC-FDSM_SIP-3 (rev1).stp \| 521.1 KB Download all 6 files as zip archive ZIP	8 - 28	5	1	11.6	8.5	10.5	17800FDSM	–
173010542	SPEC		6 files EDA models: Components ZIP ALT MagIC-FDSM (rev20a).IntLib \| 401 KB ZUK Cadstar_FDSM (rev19a).zip \| 22.1 KB CDS Cadence_MagI3C-FDSM (rev20a).zip \| 2 MB EAG Eagle_MAGIC-FDSM (rev20a).lbr \| 24 KB CAD files ZIP IGS MagIC-FDSM_SIP-3 (rev1).IGS \| 110 KB STP MagIC-FDSM_SIP-3 (rev1).stp \| 521.1 KB Download all 6 files as zip archive ZIP	8 - 42	5	1	11.6	8.5	10.5	17800FDSM	–
173010535	SPEC		6 files EDA models: Components ZIP ALT MagIC-FDSM (rev20a).IntLib \| 401 KB ZUK Cadstar_FDSM (rev19a).zip \| 22.1 KB CDS Cadence_MagI3C-FDSM (rev20a).zip \| 2 MB EAG Eagle_MAGIC-FDSM (rev20a).lbr \| 24 KB CAD files ZIP IGS Download_IGS_173010x35 (rev1).igs \| 1.8 MB STP Download_STP_173010x35 (rev1).stp \| 552.8 KB Download all 6 files as zip archive ZIP	8 - 36	5	1	11.6	8	10.4	17800FDSM MagI³C Power FeatherWing	–

Order Code	Datasheet	Simulation
173950336	SPEC
173950378	SPEC
173010335	SPEC
173950536	SPEC
173950578	SPEC
173010378	SPEC
173010342	SPEC
173010578	SPEC
173010542	SPEC
173010535	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	V_in (V)	V_out (V)	I_out (A)	L (mm)	W (mm)	H (mm)	Evaluation Board	Filter Bag	Samples
