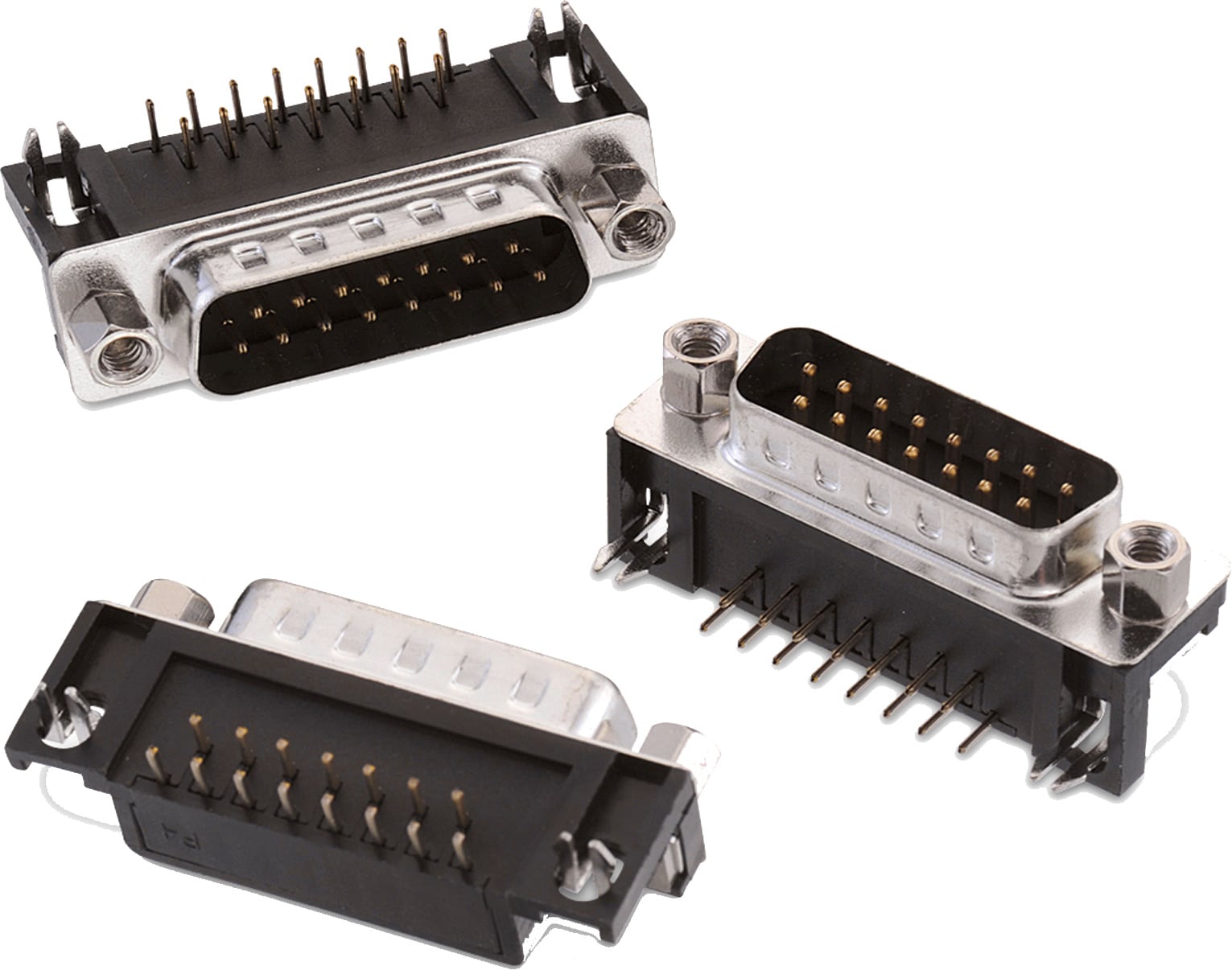

WR-DSUB 10.30 mm Male Angled PCB Connector w. Hex Screw

Kind Properties
Quality Class3 as per CECC 75 301-802
GenderMale
TypeAngled
Insulator MaterialPBT
Insulator Flammability RatingUL94 V-0
ColorBlack
Contact MaterialCopper Alloy
Contact PlatingSelective Gold
Contact TypeStamped
Shielding MaterialSteel
Shielding PlatingNickel
General Information
Operating Temperature-55 up to +105 °C
ComplianceRoHS
Electrical Properties
IR3 A
Working Voltage125 V (AC)
Withstanding Voltage1000 V (AC)
Contact Resistance30 mΩ

Products

Order Code Data­sheet DownloadsPins
(mm)
GenderTypeDesign Kit Samples
618009231421SPEC
6 files 9 Male Angled612690
618015231421SPEC
6 files 15 Male Angled
618025231421SPEC
6 files 25 Male Angled
618037231421SPEC
6 files 37 Male Angled
Order Code Data­sheet
618009231421SPEC
618015231421SPEC
618025231421SPEC
618037231421SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
GenderTypeDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
