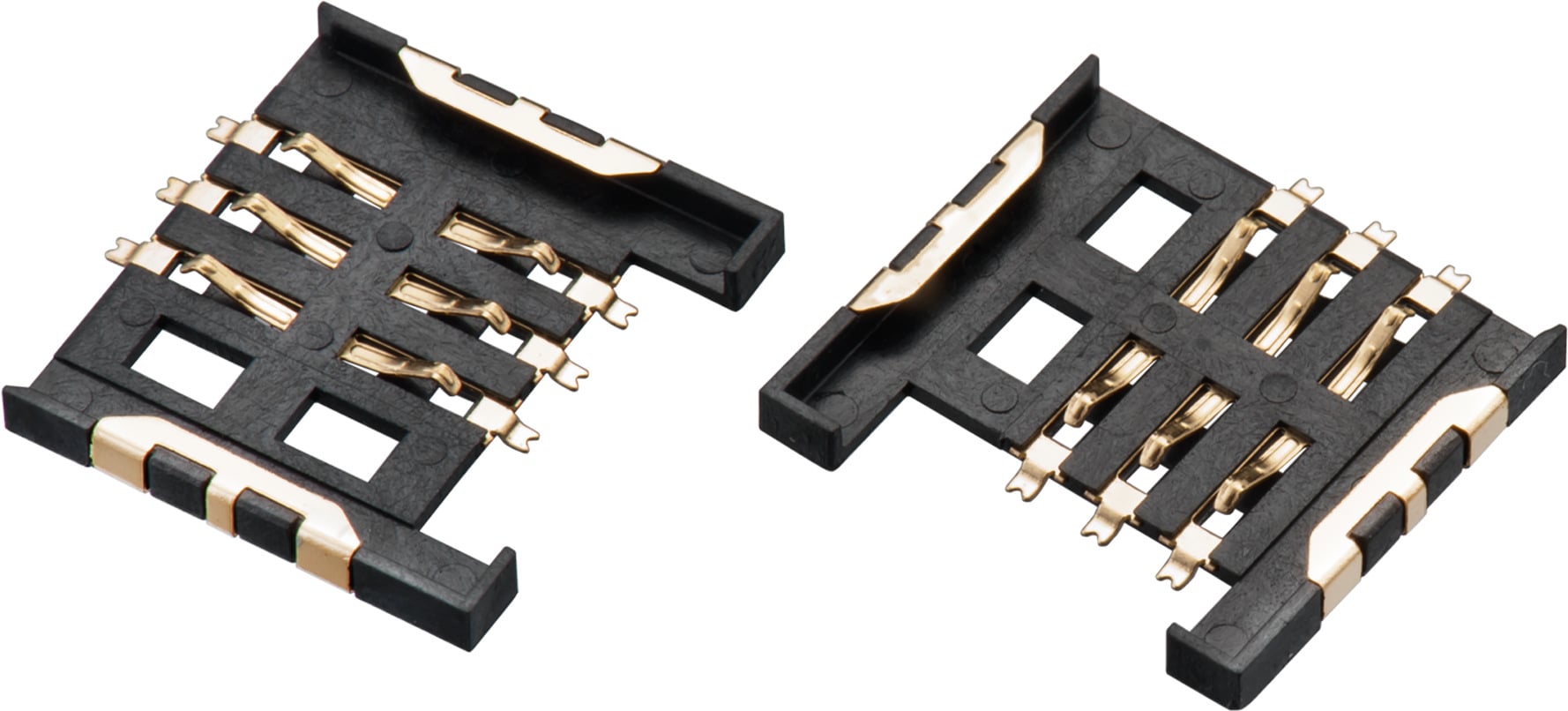

WR-CRD SIM Card Connector (Mini SIM) Header - 6 pins

Kind Properties
Quality Class5 000 Mating cycles
GenderSocket
TypeHeader
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
ColorBlack
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-25 up to +85 °C
ComplianceRoHS
Electrical Properties
IR0.5 A
Working Voltage50 V (AC)
Withstanding Voltage500 V (AC)
Contact Resistance50 mΩ

Products

Order Code Data­sheet DownloadsPins
(mm)
GenderTypeMountDesign Kit Samples
693010010601SPEC
7 files 6 Socket Header SMT612690
Order Code Data­sheet
693010010601SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
GenderTypeMountDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
