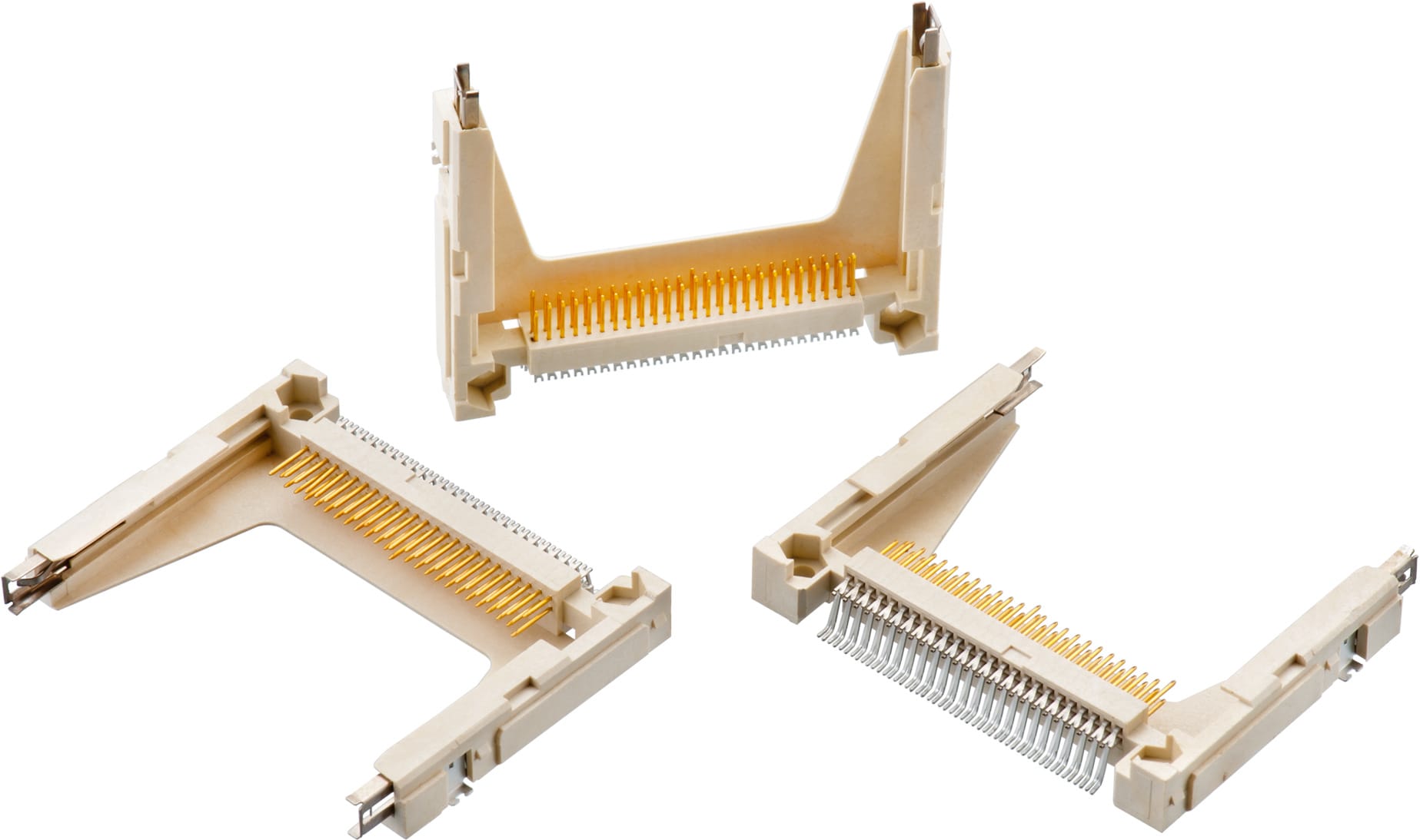

WR-CRD Compact Flash Card Connector Header Reverse type 50 pins

General Information
Operating Temperature	-25 °C up to +85 °C
Compliance	RoHS
Quality Class	10 000 Mating cycles
Gender	Socket
Type	Header

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Color	White
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	Copper Alloy

Electrical Properties
I_R	0.5 A
Working Voltage	100 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	40 mΩ

Products

Order Code	Datasheet	Downloads	Pins	Gender	Type	Mount	Operating Temperature	Working Voltage (V (AC))	Samples
693120025011	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-CRD (rev23b).IntLib \| 5.4 MB CDS Cadence_WR-CRD (rev23a).zip \| 30.3 MB EAG Eagle_WR-CRD (rev23a).lbr \| 160.8 KB CAD files ZIP 3D 693120025011_1 (rev1).pdf \| 69 KB IGS 693120025011 (rev1).igs \| 6.1 MB STP 693120025011 (rev1).stp \| 2.4 MB Download all 7 files as zip archive ZIP	50	Socket	Header	SMT	-25 °C up to +85 °C	100

Order Code	Datasheet
693120025011	SPEC
