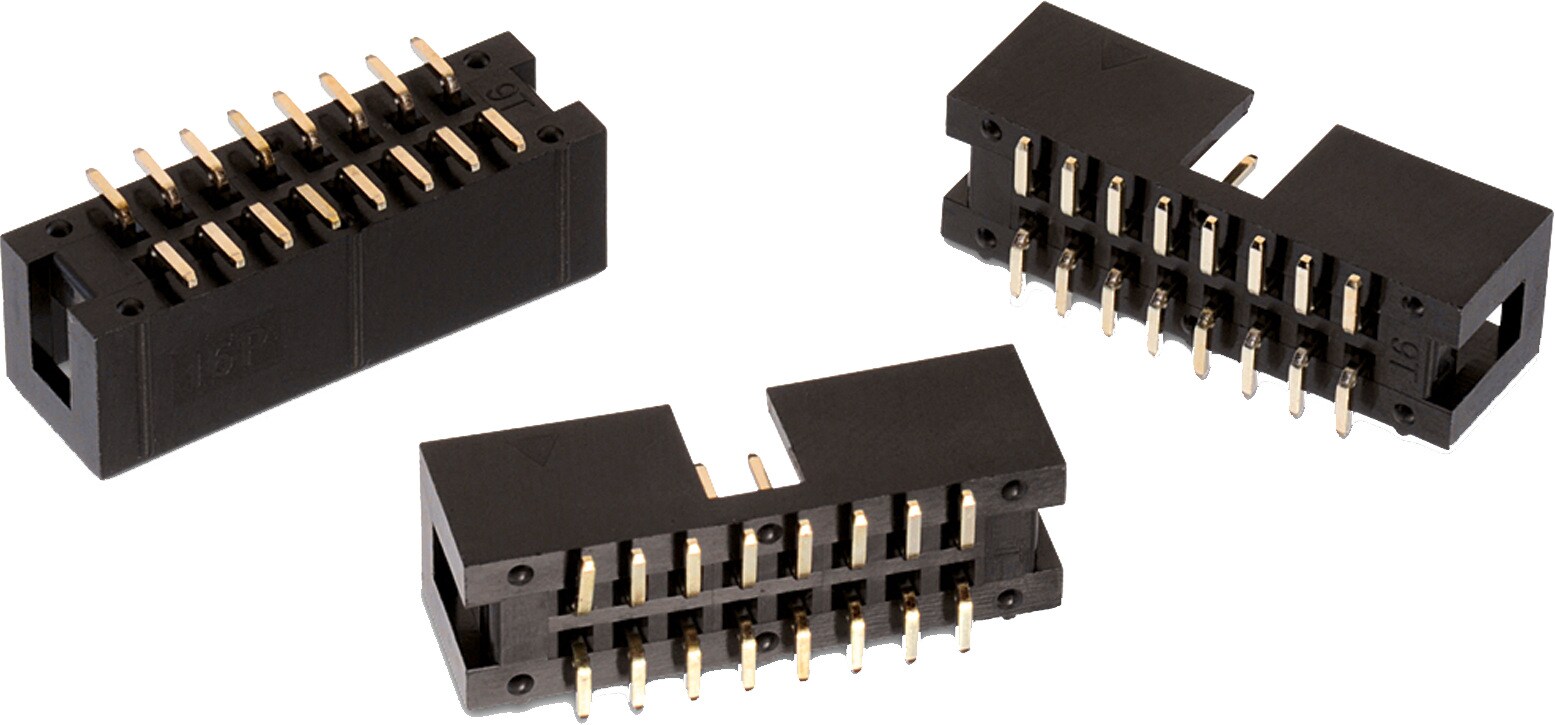

2.54 mm Male SMT Box Header (Reel) | Electromechanical Components | Würth Elektronik Product Catalog

Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.54 mm GenderMale PCB side Product series2.54 mm Male SMT Box Header (Reel)

Kind Properties
Pitch	2.54 mm
Gender	Male

Material Properties
Insulator Material	PA6T
Insulator Flammability Rating	UL94 V-0
Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 up to +125 °C
Compliance	RoHS
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel with Cap

Products

Order Code	Datasheet	Downloads	Pins (mm)	Pitch (mm)	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
61231020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev19a).IntLib \| 14.8 MB CDS Cadence_WR-BHD (rev19a).zip \| 13.4 MB EAG Eagle_WR-BHD (rev19b).lbr \| 1.9 MB CAD files ZIP 3D 61231020621_1 (rev1).pdf \| 68.5 KB IGS Download_IGES_61231020621 (rev1).iges \| 822.8 KB STP 61231020621 (rev1).stp \| 310.2 KB Download all 6 files as zip archive ZIP	10	2.54	Male	Straight	SMT	20.5	3	250	20	max.	Tape and Reel with Cap	612001
61231420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev19a).IntLib \| 14.8 MB CDS Cadence_WR-BHD (rev19a).zip \| 13.4 MB EAG Eagle_WR-BHD (rev19b).lbr \| 1.9 MB CAD files ZIP 3D 61231420621_1 (rev1).pdf \| 78.6 KB IGS Download_IGES_61231420621 (rev1).iges \| 1004.4 KB STP 61231420621 (rev1).stp \| 381.3 KB Download all 6 files as zip archive ZIP	14	2.54	Male	Straight	SMT	25.58	3	250	20	max.	Tape and Reel with Cap	612001 612690
61231620621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev19a).IntLib \| 14.8 MB CDS Cadence_WR-BHD (rev19a).zip \| 13.4 MB EAG Eagle_WR-BHD (rev19b).lbr \| 1.9 MB CAD files ZIP 3D 61231620621_1 (rev1).pdf \| 83.1 KB IGS Download_IGES_61231620621 (rev1).iges \| 1.1 MB STP 61231620621 (rev1).stp \| 416.9 KB Download all 6 files as zip archive ZIP	16	2.54	Male	Straight	SMT	28.12	3	250	20	max.	Tape and Reel with Cap	612001
61232020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev19a).IntLib \| 14.8 MB CDS Cadence_WR-BHD (rev19a).zip \| 13.4 MB EAG Eagle_WR-BHD (rev19b).lbr \| 1.9 MB CAD files ZIP 3D 61232020621_1 (rev1).pdf \| 93.4 KB IGS Download_IGES_61232020621 (rev1).iges \| 1.2 MB STP 61232020621 (rev1).stp \| 488 KB Download all 6 files as zip archive ZIP	20	2.54	Male	Straight	SMT	33.2	3	250	20	max.	Tape and Reel with Cap	612001
61232620621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev19a).IntLib \| 14.8 MB CDS Cadence_WR-BHD (rev19a).zip \| 13.4 MB EAG Eagle_WR-BHD (rev19b).lbr \| 1.9 MB CAD files ZIP 3D 61232620621_1 (rev1).pdf \| 110.3 KB IGS Download_IGES_61232620621 (rev1).iges \| 1.6 MB STP 61232620621 (rev1).stp \| 595.5 KB Download all 6 files as zip archive ZIP	26	2.54	Male	Straight	SMT	40.82	3	250	20	max.	Tape and Reel with Cap	612001
61233420621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev19a).IntLib \| 14.8 MB CDS Cadence_WR-BHD (rev19a).zip \| 13.4 MB EAG Eagle_WR-BHD (rev19b).lbr \| 1.9 MB CAD files ZIP 3D 61233420621_1 (rev1).pdf \| 129.4 KB IGS Download_IGES_61233420621 (rev1).iges \| 1.9 MB STP 61233420621 (rev1).stp \| 742.8 KB Download all 6 files as zip archive ZIP	34	2.54	Male	Straight	SMT	50.98	3	250	20	max.	Tape and Reel with Cap	612001
61234020621	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BHD (rev19a).IntLib \| 14.8 MB CDS Cadence_WR-BHD (rev19a).zip \| 13.4 MB EAG Eagle_WR-BHD (rev19b).lbr \| 1.9 MB CAD files ZIP 3D 61234020621_1 (rev1).pdf \| 142.7 KB IGS Download_IGES_61234020621 (rev1).iges \| 2.2 MB STP 61234020621 (rev1).stp \| 853.5 KB Download all 6 files as zip archive ZIP	40	2.54	Male	Straight	SMT	58.6	3	250	20	max.	Tape and Reel with Cap	–

Order Code	Datasheet
61231020621	SPEC
61231420621	SPEC
61231620621	SPEC
61232020621	SPEC
61232620621	SPEC
61233420621	SPEC
61234020621	SPEC

Samples

Order Code	Datasheet	Downloads	Pins (mm)	Pitch (mm)	Gender	Type	Mount	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples

Mates with

WR-BHD 2.54 mm Female IDC Connector with Strain Relief

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Box Headers and Flat Cable

Design Kit Connector Solutions
