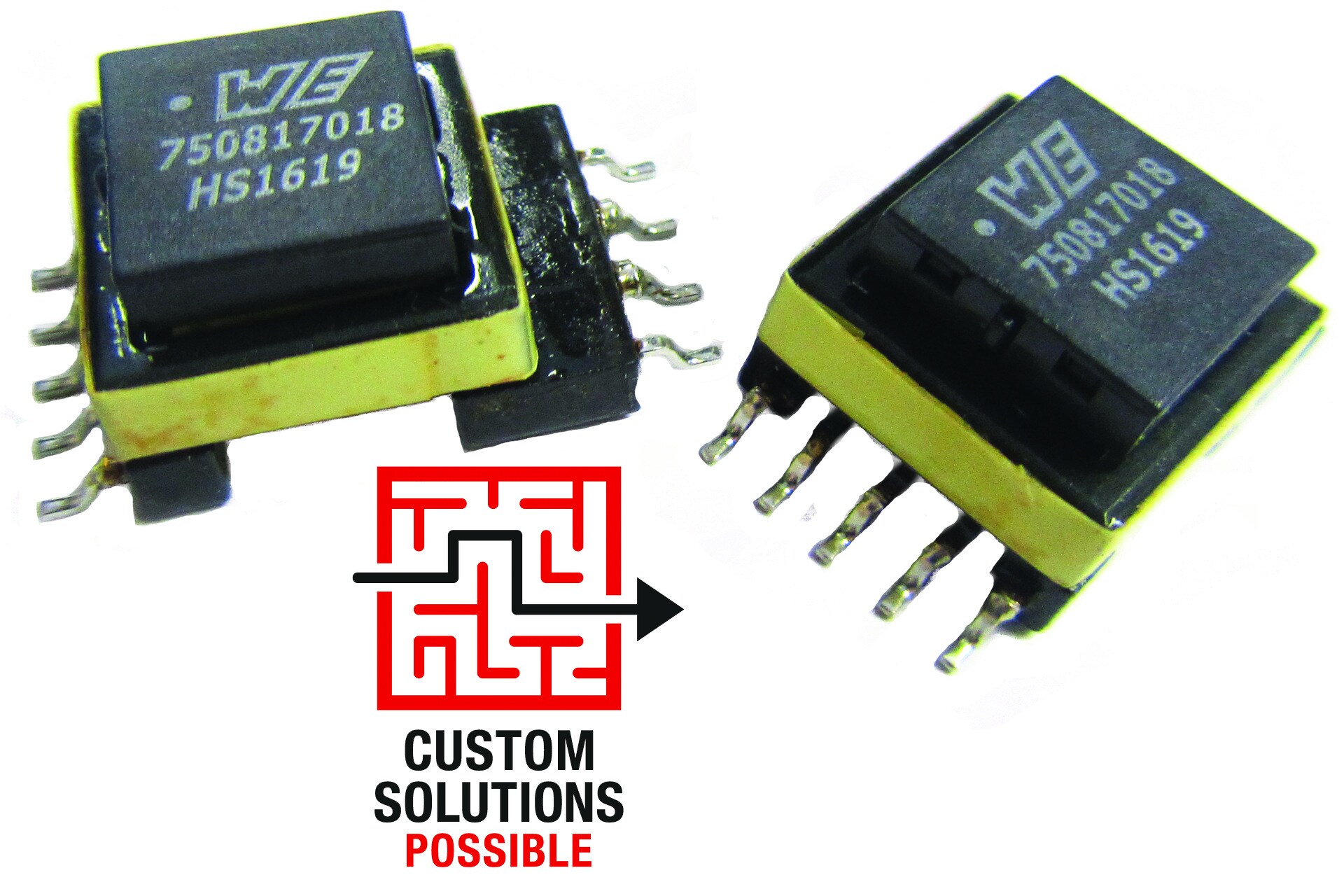

MID-OLIFX Offline Flyback Transformers for Infineon Technologies

Merkmale

  • Low leakage inductance
  • Extended rail
  • Isolation voltage: Up to 5625VAC for 1 second
  • Operating temperature: -40º to +125º C including temp rise

Anwendung

  • Offline switch-mode power supplies
  • Retrofit LED lighting
  • Street and indoor lighting
  • Internet of Things (IoT)
  • Metering

Artikeldaten

Alle
EE13/7/4
EE16/8/5
EE19/8/5
EE20/10/6
EE25/13/7
EE30/15/7
ER28/17
ETD34
PQ2016
PQ2020
RM6
Artikel Nr. Daten­blatt Simu­lation DownloadsVinVOut1
(V)
IOut1
(A)
VOut2
(V)
IOut2
(A)
Vaux
(V)
Vaux 1
(V)
Vaux 2
(V)
fswitch
(kHz)
L
(µH)
NPRI : NSEC : NAUXISAT
(A)
VT
(V (AC))
L
(mm)
W
(mm)
H
(mm)
MontageartBauform Muster
750342411SPEC
4 Dateien 65 - 300 V (AC) 5 2.4 16 100 571 13.5:1:3.25 3750 23 22.86 17.53 THT EE20/10/6
750343074SPEC
4 Dateien 65 - 320 V (AC) 12 1.2 5 0.2 15 55 998 17.6:1.4:1:2.8 3750 22.2 25 16 THT EE20/10/6
750343268SPEC
5 Dateien 67 - 320 V (AC) 12 4.5 5 1 15 55 372 16.3:2.3:1:2.5 4 3000 32 39 26 THT ER28/17
750343050SPEC
4 Dateien 75 - 282 V (AC) 12 1 15 100 467 6:1:1.33 5000 22.2 25.4 16 THT EE20/10/6
750343019SPEC
4 Dateien 75 - 282 V (AC) 12 1.5 15 100 346 6:1:1.33 5000 22.2 26 16 THT EE20/10/6
750343052SPEC
5 Dateien 75 - 282 V (AC) 12 2.33 15 100 188 6.1:1:1.42 5000 27.05 34 22.86 THT EE25/13/7
750316266SPEC
4 Dateien 76 - 93 V (AC) 48 0.6 100 830 2.27:1 1.6 1500 23 22 17.53 THT EE20/10/6
750311798SPEC
4 Dateien 85 - 135 V (AC) 27 0.35 29 100 2400 6:1:1.085 0.7 2000 20.32 24.38 16 THT EE16/8/5
750341900SPEC
4 Dateien 85 - 300 V (AC) 12 2.5 19 100 229 6:1:1.6 3750 27.94 30.23 21.59 THT EE25/13/7
750342158SPEC
4 Dateien 85 - 265 V (AC) 12 2.5 18 65 368 6:1:1.5 5000 27.94 29.21 21.59 THT EE25/13/7
750341844SPEC
4 Dateien 85 - 265 V (AC) 12 1 18 65 382 6:1:1.45 3750 23 23 17.53 THT EE20/10/6
750342230SPEC
5 Dateien 85 - 265 V (AC) 12 0.5 12 0.5 24 12 12 50 4150 7:1:1:1 2000 19 21 15.5 THT EE16/8/5
750342625SPEC
4 Dateien 85 - 265 V (AC) 5 4 20 100 410 13.5:1:2.75 3750 23 22.86 17.53 THT EE20/10/6
750342655SPEC
4 Dateien 85 - 265 V (AC) 12 2.3 20 100 360 6.3:1:1.3 3000 27.95 20.32 28.58 THT EE25/13/7
750342657SPEC
4 Dateien 85 - 265 V (AC) 12 2.83 20 100 250 6:1:1.25 3000 27.95 20.32 28.58 THT EE25/13/7
750342983SPEC
4 Dateien 85 - 265 V (AC) 12 1 15 40 1572 6.32:1:1.26 5000 22.2 26 16.5 THT EE20/10/6
750342992SPEC
4 Dateien 85 - 265 V (AC) 12 0.84 15 65 1300 6.67:1:1.25 5000 23 22 17.53 THT EE20/10/6
750343051SPEC
5 Dateien 85 - 265 V (AC) 12 2.33 15 40 639 6.55:1:1.27 5000 27.05 33 22.86 THT EE25/13/7
750343023SPEC
5 Dateien 85 - 265 V (AC) 12 2.5 15 65 368 6:1:1.38 5000 27.05 32.25 22.86 THT EE25/13/7
750343053SPEC
4 Dateien 85 - 265 V (AC) 12 1.67 15 65 516 5.83:1:1.25 5000 22.2 25.4 16 THT EE20/10/6
750343534SPEC
7 Dateien 85 - 300 V (AC) 5 0.2 12 2.67 12 65 356 16.7:2.3:1:2.7 2.5 3750 34.16 35.2 24 THT EE30/15/7
750343101SPEC
5 Dateien 85 - 300 V (AC) 7 2 5 0.2 15 55 400 16:1.3:1:9 2 3750 28 33 22.86 THT EE25/13/7
750343401SPEC
5 Dateien 85 - 300 V (AC) 12 3.41 5 0.2 15 65 315 16.7:2.3:1:2.7 2.5 3000 34.16 35.2 24 THT EE30/15/7
750343389SPEC
5 Dateien 85 - 300 V (AC) 7 2 5 0.2 15 55 400 16:1.3:1:9 2 3750 28 33 22.86 THT EE25/13/7
750343506SPEC
5 Dateien 85 - 320 V (AC) 12 3.5 5 0.2 12 65 315 16.7:2.3:1:2.7 3 3750 35 35.2 24 THT EE30/15/7
750343773SPEC
5 Dateien 85 - 300 V (AC) 12 4.58 5 1 14 40 266 14.67 : 1.33 : 1 : 3 5000 32 39 26 THT ER28/17
750817018SPEC
4 Dateien 88 - 270 V (AC) 6 0.5 14.4 65 2190 12.6:1:2.4 0.25 3750 13.8 23.9 11 SMT EE13/7/4
750341723SPEC
5 Dateien 90 - 264 V (AC) 5 2.1 20 40 1600 15:1:3 1500 21.5 18 18.5 THT EE19/8/5
750342063SPEC
4 Dateien 90 - 265 V (AC) 26 0.33 65 1750 4.72:1 1500 17.96 20.3 14.3 THT EE16/8/5
750314100SPEC
5 Dateien 90 - 305 V (AC) 15 0.88 15 70 540 3.88:1:1 3 1616 23.36 23.88 24.14 THT PQ2020
750342294SPEC
4 Dateien 90 - 305 V (AC) 48 0.4 160 1600 3.88:1:1.65:1.65 3750 27.05 32.25 22.86 THT EE25/13/7
750342295SPEC
4 Dateien 90 - 305 V (AC) 48 1.6 160 310 3.86:1:1.64:1.64 3000 39.6 43.18 30.48 THT ETD34
750315967SPEC
5 Dateien 90 - 305 V (AC) 15 0.88 15 0.02 15 53 - 126 540 3.86:1:1:1 2.4 2020 23.36 23.88 24.14 THT PQ2020
750841291SPEC
4 Dateien 90 - 264 V (AC) 60 0.4 15 0.1 18 60 2000 15.6:1:3.6:1.2 3750 24 24 18.67 THT PQ2016
750343265SPEC
5 Dateien 90 - 300 V (AC) 45 0.88 16 55 544 3.87:1:1:1 2.4 2300 23.36 23.88 24.14 THT PQ2020
750341570SPEC
7 Dateien 180 - 260 V (AC) 36 0.3 18 100 2300 5.29:1:0.5 3000 17.65 20 13.21 THT RM6
750815141SPEC
4 Dateien 195 - 265 V (AC) 27 0.35 19 100 6300 19:1:1.4 0.2 4500 20.32 24.38 16 THT EE16/8/5
750845240SPEC
5 Dateien 195 - 265 V (AC) 24 2 15 47 2600 17.778:1.555:1.555:1 3600 31.5 35.2 24 THT EE30/15/7
