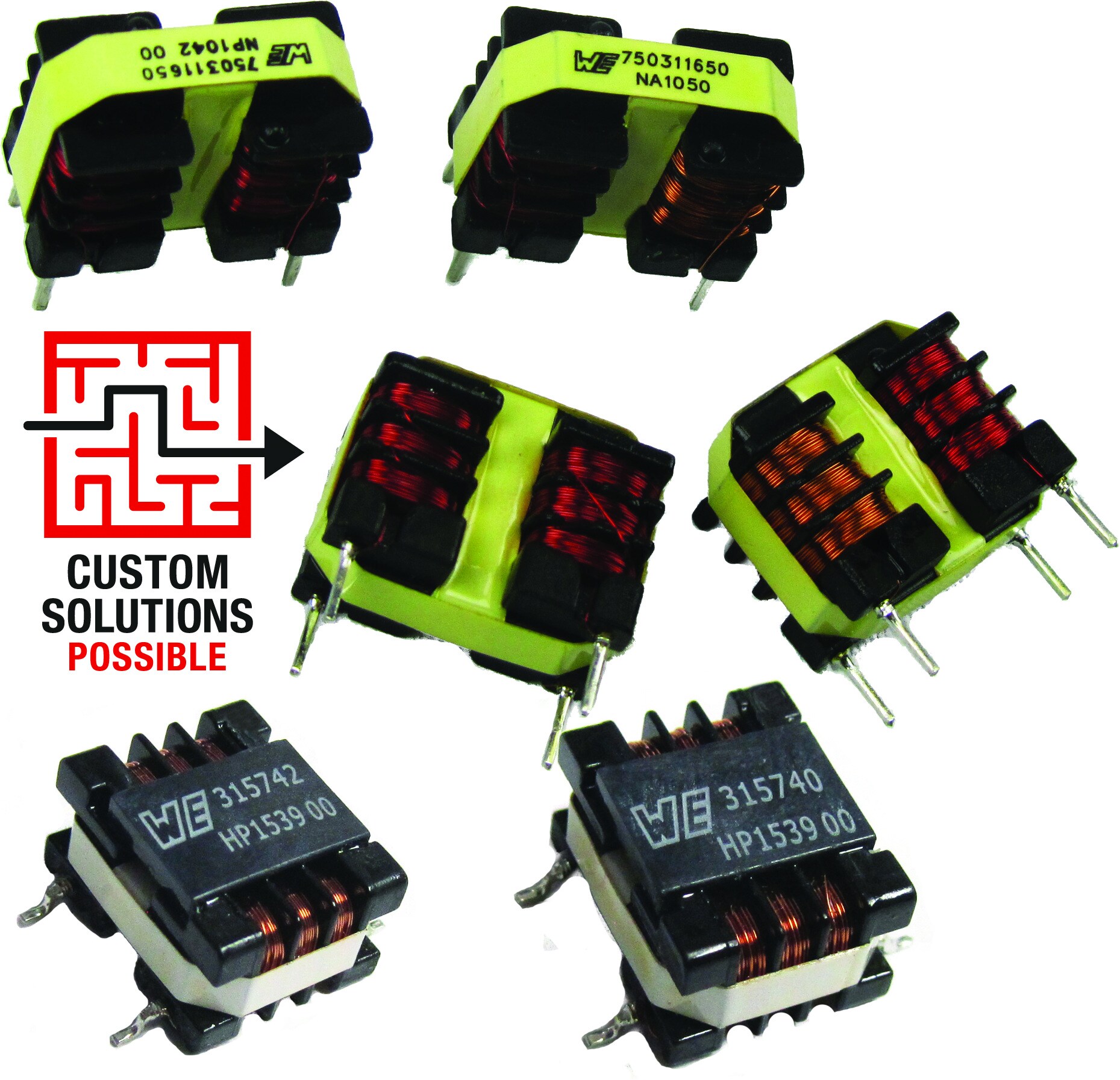

MID-D11 Dual Coil - Common Mode Choke | Custom Magnetics | Würth Elektronik Produktkatalog

ProduktbereichCustom Magnetics ProduktgruppeFinished Magnetic Components ProduktfamilieEMC Components ProduktunterfamiliePower Common Mode Chokes ProduktserieMID-D11 Dual Coil - Common Mode Choke

Merkmale

Dielectric rating: 1500VAC
High differential inductance
Extremely compact design
Reduces number of components
Operating temp: -40°C to 125°C
Package size: EE11/6/3
Designed to meet UL1993 for 177VAC (250V peak) at less than 50W

Anwendung

LED lighting
CCFL lighting
Offline switching power
Suppression of both common and differential mode noise
Filtering on device with unstable ground
Power line input and output filters
Power electronics
Electronic ballasts
White goods
Power tools

Artikeldaten

Alle

EE11/6/3 THT

EE11/6/3 SMT

	Artikel Nr.	Datenblatt	Downloads	L₁ (mH)	n	I_SAT1 (A)	R_{DC 1} (Ω)	L_{S 1} (µH)	V_T (V (AC))	f_{res 1} (MHz)	I_{R 1} (mA)	L (mm)	W (mm)	H (mm)	Muster
	750311861	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-5627 (rev1).IGS \| 2.6 MB STP Download_STP_070-5627 (rev1).STEP \| 1.1 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-5627 (rev1).wrl \| 687.5 KB Alle 4 Dateien als ZIP herunterladen ZIP	2.5	1:1	0.8	0.7	300	1500	1.5	760	15.75	8.71	13.6
	750315739	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-6443 (rev1).IGS \| 2.7 MB STP Download_STP_070-6443 (rev1).STEP \| 1.2 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-6443 (rev1).wrl \| 1 MB Alle 4 Dateien als ZIP herunterladen ZIP	2.5	1:1	0.8	0.62	300	1500	1.5	760	15.75	18.08	9.45
	750311895	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-5627 (rev1).IGS \| 2.6 MB STP Download_STP_070-5627 (rev1).STEP \| 1.1 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-5627 (rev1).wrl \| 687.5 KB Alle 4 Dateien als ZIP herunterladen ZIP	6	1:1	0.5	1.6	700	1500	0.85	450	15.75	8.71	13.6
	750315740	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-6443 (rev1).IGS \| 2.7 MB STP Download_STP_070-6443 (rev1).STEP \| 1.2 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-6443 (rev1).wrl \| 1 MB Alle 4 Dateien als ZIP herunterladen ZIP	6	1:1	0.5	1.6	700	1500	0.85	450	15.75	18.08	9.45
	750311896	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-5627 (rev1).IGS \| 2.6 MB STP Download_STP_070-5627 (rev1).STEP \| 1.1 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-5627 (rev1).wrl \| 687.5 KB Alle 4 Dateien als ZIP herunterladen ZIP	10	1:1	0.35	2.5	1100	1500	0.8	370	15.75	8.71	13.6
	750315741	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-6443 (rev1).IGS \| 2.7 MB STP Download_STP_070-6443 (rev1).STEP \| 1.2 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-6443 (rev1).wrl \| 1 MB Alle 4 Dateien als ZIP herunterladen ZIP	10	1:1	0.35	2.5	1100	1500	0.8	370	15.75	18.08	9.45
	750311897	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-5627 (rev1).IGS \| 2.6 MB STP Download_STP_070-5627 (rev1).STEP \| 1.1 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-5627 (rev1).wrl \| 687.5 KB Alle 4 Dateien als ZIP herunterladen ZIP	24	1:1	0.25	6.3	2500	1500	0.44	240	15.75	8.71	13
	750315742	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-6443 (rev1).IGS \| 2.7 MB STP Download_STP_070-6443 (rev1).STEP \| 1.2 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-6443 (rev1).wrl \| 1 MB Alle 4 Dateien als ZIP herunterladen ZIP	24	1:1	0.25	6.3	2500	1500	0.44	240	15.75	18.08	9.45
	750311650	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-5627 (rev1).IGS \| 2.6 MB STP Download_STP_070-5627 (rev1).STEP \| 1.1 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-5627 (rev1).wrl \| 687.5 KB Alle 4 Dateien als ZIP herunterladen ZIP	45	1:1	0.2	10.05	4000	1500	0.3	180	15.75	8.71	13
	750315743	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-6443 (rev1).IGS \| 2.7 MB STP Download_STP_070-6443 (rev1).STEP \| 1.2 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-6443 (rev1).wrl \| 1 MB Alle 4 Dateien als ZIP herunterladen ZIP	45	1:1	0.2	10.05	4000	1500	0.3	180	15.75	18.08	9.45
	750311898	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-5627 (rev1).IGS \| 2.6 MB STP Download_STP_070-5627 (rev1).STEP \| 1.1 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-5627 (rev1).wrl \| 687.5 KB Alle 4 Dateien als ZIP herunterladen ZIP	57	1:1	0.15	15.7	6500	1500	0.28	160	15.75	8.71	13
	750315744	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-6443 (rev1).IGS \| 2.7 MB STP Download_STP_070-6443 (rev1).STEP \| 1.2 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-6443 (rev1).wrl \| 1 MB Alle 4 Dateien als ZIP herunterladen ZIP	57	1:1	0.15	15.7	6500	1500	0.28	160	15.75	18.08	9.45
	750311899	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-5627 (rev1).IGS \| 2.6 MB STP Download_STP_070-5627 (rev1).STEP \| 1.1 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-5627 (rev1).wrl \| 687.5 KB Alle 4 Dateien als ZIP herunterladen ZIP	140	1:1	0.1	39	18500	1500	0.19	90	15.75	8.71	13
	750315745	SPEC	4 Dateien CAD-Dateien ZIP IGS Download_IGS_070-6443 (rev1).IGS \| 2.7 MB STP Download_STP_070-6443 (rev1).STEP \| 1.2 MB catalog.downloads.group_labels.other ZIP CHT Downloads_Chart_MID-D11 (rev1).pdf \| 123.8 KB catalog.downloads.group_labels. ZIP WRL Download_WRL_070-6443 (rev1).wrl \| 1 MB Alle 4 Dateien als ZIP herunterladen ZIP	140	1:1	0.1	39	18500	1500	0.19	90	15.75	18.08	9.45

	Artikel Nr.	Datenblatt
	750311861	SPEC
	750315739	SPEC
	750311895	SPEC
	750315740	SPEC
	750311896	SPEC
	750315741	SPEC
	750311897	SPEC
	750315742	SPEC
	750311650	SPEC
	750315743	SPEC
	750311898	SPEC
	750315744	SPEC
	750311899	SPEC
	750315745	SPEC

Muster

	Artikel Nr.	Datenblatt	Downloads	L₁ (mH)	n	I_SAT1 (A)	R_{DC 1} (Ω)	L_{S 1} (µH)	V_T (V (AC))	f_{res 1} (MHz)	I_{R 1} (mA)	L (mm)	W (mm)	H (mm)	Muster
