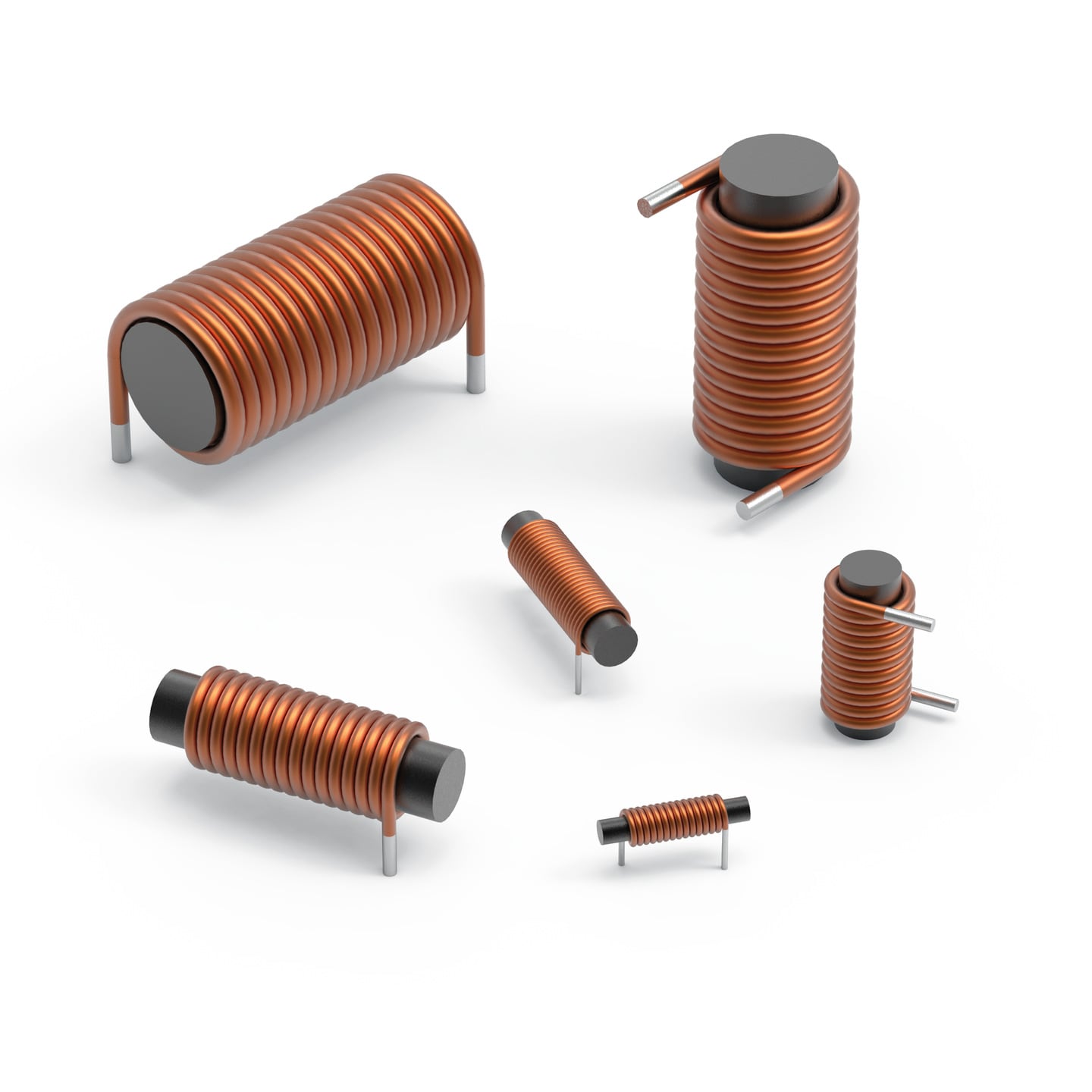

WE-SD Rod Core Choke

LTSpice files

LT
LTSpice_WE-SD (rev22a).zip
|
1.9 KB

Characteristics

Rated current up to 15 A
Inductance is independent from rated DC current
High mechanical stability
High saturation currents
Operating temperature: –40 ºC to +150 ºC
Custom designs on request

Applications

Switching regulators
Motors
Power amplifiers
Power supplies
Broadband filtering
Typical in VHF

Application Notes

ANP015 Line filter – The last barrier in the switch mode power supply
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Simulation	Downloads	Status	L(µH)	I_R(A)	R_DC(mΩ)	L(mm)	W(mm)	H(mm)	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	744710203	SPEC2 µH, 2.5 A, 11 mΩ	Simulation	Availability –	Downloads9 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB ANS ANSYS_744710203 (rev22a).a3dcomp \| 581.5 KB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744710203 (rev1).igs \| 427.7 KB STP 744710203 (rev1).stp \| 173.3 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance2 µH	Rated Current2.5 A	DC Resistance11 mΩ	Length12.3 mm	–	–	Design Kit 744713	–Check availability
	744710205	SPEC2 µH, 5 A, 6.5 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744710205 (rev1).igs \| 376.8 KB STP 744710205 (rev1).stp \| 142.5 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance2 µH	Rated Current5 A	DC Resistance6.5 mΩ	Length14 mm	–	–	Design Kit 744713	–Check availability
	744710210	SPEC2 µH, 10 A, 3.8 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744710210 (rev1).igs \| 365.4 KB STP 744710210 (rev1).stp \| 132.7 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance2 µH	Rated Current10 A	DC Resistance3.8 mΩ	Length15.4 mm	–	–	Design Kit 744713	–Check availability
	744710215	SPEC2 µH, 15 A, 1.7 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744710215 (rev1).igs \| 353.6 KB STP 744710215 (rev1).stp \| 122.7 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance2 µH	Rated Current15 A	DC Resistance1.7 mΩ	Length25.7 mm	–	–	Design Kit 744713	–Check availability
	744710603	SPEC6 µH, 3.5 A, 22 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744710603 (rev1).igs \| 565.1 KB STP 744710603 (rev1).stp \| 241.9 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance6 µH	Rated Current3.5 A	DC Resistance22 mΩ	Length15.4 mm	–	–	Design Kit 744713	–Check availability
	744710605	SPEC6 µH, 5 A, 11.7 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744710605 (rev1).igs \| 496.4 KB STP 744710605 (rev1).stp \| 201.6 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance6 µH	Rated Current5 A	DC Resistance11.7 mΩ	Length20.5 mm	–	–	Design Kit 744713	–Check availability
	744710610	SPEC6 µH, 10 A, 6.5 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744710610 (rev1).igs \| 458.4 KB STP 744710610 (rev1).stp \| 181.9 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance6 µH	Rated Current10 A	DC Resistance6.5 mΩ	Length25.7 mm	–	–	Design Kit 744713	–Check availability
	744710615	SPEC6 µH, 15 A, 3.5 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744710615 (rev1).igs \| 430.4 KB STP 744710615 (rev1).stp \| 162.1 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance6 µH	Rated Current15 A	DC Resistance3.5 mΩ	Length30 mm	–	–	Design Kit 744713	–Check availability
	744711003	SPEC10 µH, 2.5 A, 33 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744711003 (rev1).igs \| 612 KB STP 744711003 (rev1).stp \| 280.6 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance10 µH	Rated Current2.5 A	DC Resistance33 mΩ	Length18.5 mm	–	–	Design Kit 744713	–Check availability
	744711005	SPEC10 µH, 5 A, 15.1 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744711005 (rev1).igs \| 586.1 KB STP 744711005 (rev1).stp \| 250.9 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance10 µH	Rated Current5 A	DC Resistance15.1 mΩ	Length22.5 mm	–	–	Design Kit 744713	–Check availability
	744711010	SPEC10 µH, 10 A, 8.8 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744711010 (rev1).igs \| 567.5 KB STP 744711010 (rev1).stp \| 241 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance10 µH	Rated Current10 A	DC Resistance8.8 mΩ	Length30.9 mm	–	–	Design Kit 744713	–Check availability
	744711015	SPEC10 µH, 15 A, 5.7 mΩ	Simulation	Availability –	Downloads8 files EDA models: Components ZIP ALT WE-SD (rev22b).IntLib \| 1 MB CDS Cadence_WE-SD (rev21a).zip \| 13.8 MB EAG Eagle_WE-SD (rev21a).lbr \| 36.3 KB KIC KiCad_WE-SD (rev26b).zip \| 297.2 KB ZUK Cadstar_WE-SD (rev21a).zip \| 13.5 KB CAD files ZIP IGS 744711015 (rev1).igs \| 471.9 KB STP 744711015 (rev1).stp \| 185.2 KB Electric models ZIP PSP PSpice_WE-SD (rev22a).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance10 µH	Rated Current15 A	DC Resistance5.7 mΩ	Length30.8 mm	Width29.2 mm	Height12 mm	Design Kit 744713	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-SD Rod Core Inductors
