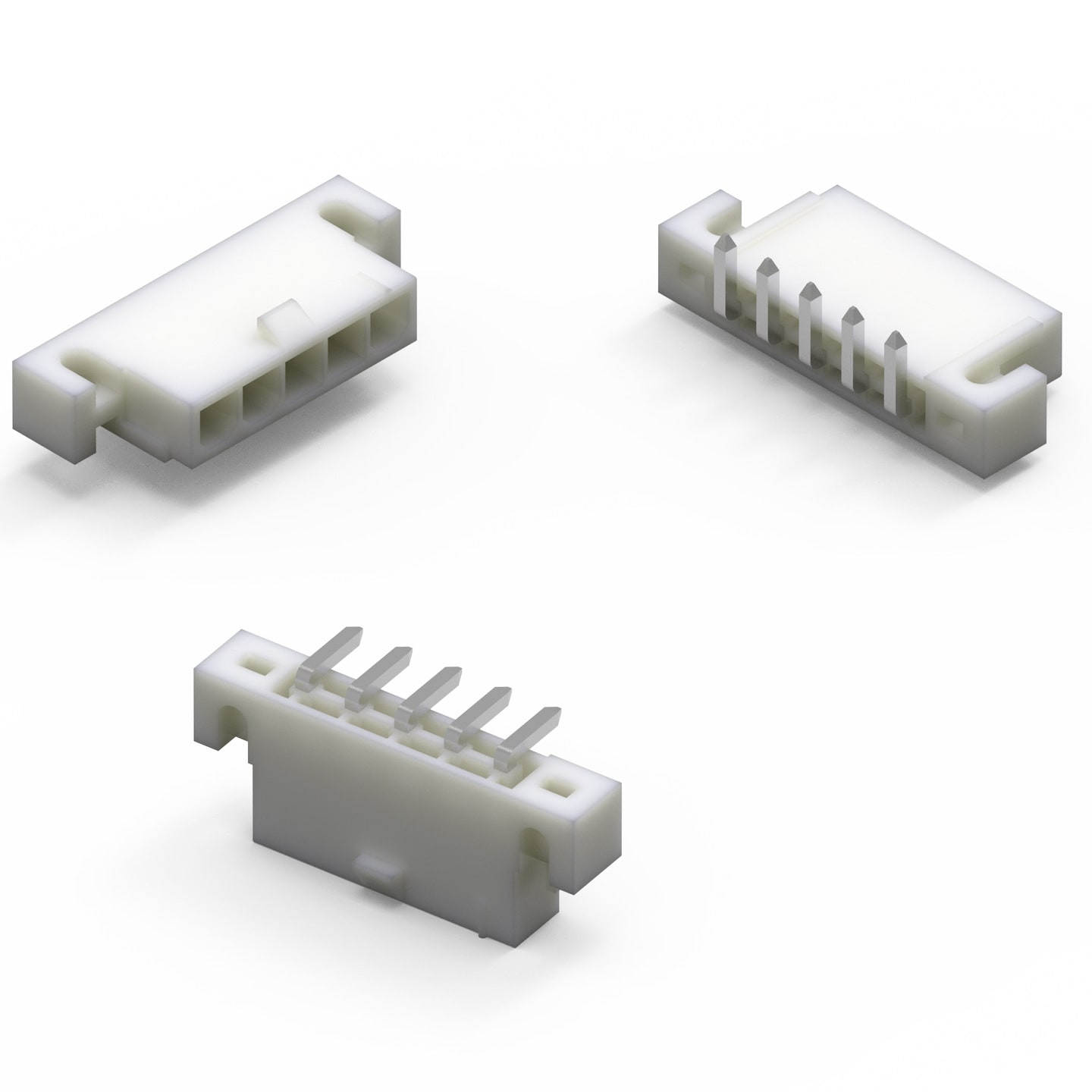

WR-MPC4 4.20 mm Male Single Row Angled Header w. Mounting Flanges for Screw-in Retention

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	White
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
I_R	8 A; 9 A
Working Voltage	600 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ
R_ISO	1000 MΩ
Pitch	4.2 mm
Gender	Male

Certification
UL Approval	E323964

Wire Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	I_R (A)	Gender	Type	Rows	Mount	Working Voltage (V (AC))	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples
64900211022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 64900211022_1 (rev1).pdf \| 58.5 KB IGS 64900211022 (rev1).iges \| 720.3 KB STP 64900211022 (rev1).stp \| 158.9 KB Download all 6 files as zip archive ZIP	2	4.2	9	Male	Right Angled	Single	THT	600	PCB	19.6	Tray	649001
64900311022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 64900311022_1 (rev1).pdf \| 66.4 KB IGS 64900311022 (rev1).iges \| 866.2 KB STP 64900311022 (rev1).stp \| 190.9 KB Download all 6 files as zip archive ZIP	3	4.2	9	Male	Right Angled	Single	THT	600	PCB	23.8	Tray	649001
64900411022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 64900411022_1 (rev1).pdf \| 74.9 KB IGS 64900411022 (rev1).iges \| 1020.3 KB STP 64900411022 (rev1).stp \| 229.1 KB Download all 6 files as zip archive ZIP	4	4.2	8	Male	Right Angled	Single	THT	600	PCB	28	Tray	649001
64900511022	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC4 (rev22a).IntLib \| 5.6 MB CDS Cadence_WR-MPC4 (rev19a).zip \| 5.9 MB EAG Eagle_WR-MPC4 (rev19b).lbr \| 585.4 KB CAD files ZIP 3D 64900511022_1 (rev1).pdf \| 83.6 KB IGS 64900511022 (rev1).iges \| 1.2 MB STP 64900511022 (rev1).stp \| 266.8 KB Download all 6 files as zip archive ZIP	5	4.2	8	Male	Right Angled	Single	THT	600	PCB	32.2	Tray	649001

Order Code	Datasheet
64900211022	SPEC
64900311022	SPEC
64900411022	SPEC
64900511022	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	I_R (A)	Gender	Type	Rows	Mount	Working Voltage (V (AC))	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-MPC4 4.20 mm Female Single Row Plug

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC4 Mini Power Connectors
