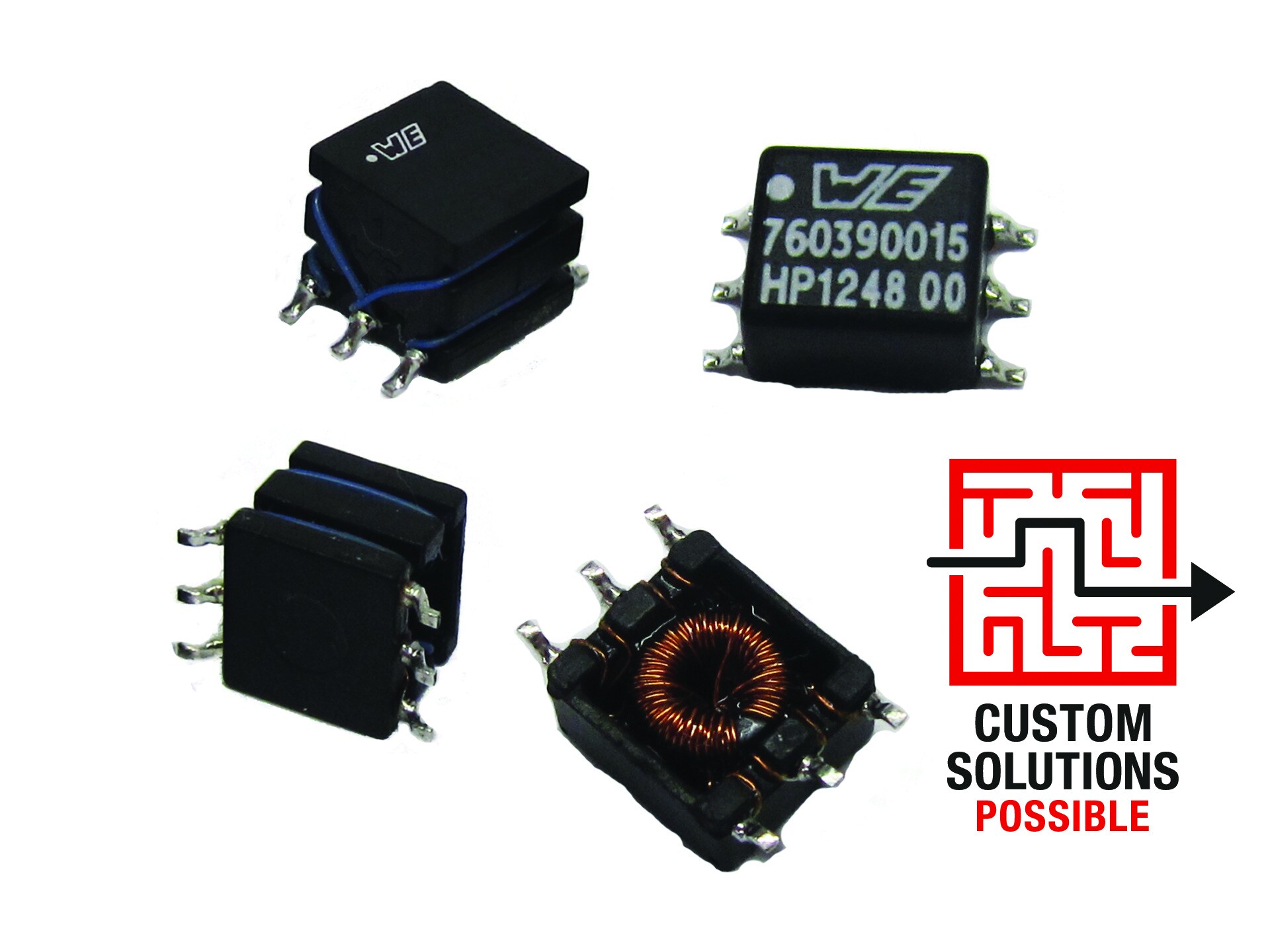

OverviewAll product units Product unitPassive Components Product groupCustom Magnetics Product familyCustom Finished Magnetic Components Product sub-seriesPower Magnetics Product sub-familyDC/DC Push-Pull Transformers Product seriesMID-PPTI Push-Pull Transformers for Texas Instruments

LTSpice files

LT
LTspice_WE-PPTI (rev23a).zip
|
22 KB

Characteristics

Small size
Surface mount
Low profile
Operating temp: -40°C to 125°C
Standards detail: IEC60950-1, EN60950-1/CSA60950-1 and AS/NZS609501.1
Standards detail for high voltage series: IEC60664-1, IEC60950-1 and IEC60601-1
Standards detail for SN6505B supplementary insulation series: IEC61010-1
Functional, supplementary or reinforced insulation
SN6501 Push Pull Driver Training Video

Applications

Isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, lower-power LAN
Industrial automation
Process control
Medical equipment
PLC analog and digital I/O modules
Isolated gate driver power supplies
AC motor drives
Uninterruptible power supplies (UPS)
Solar inverters
Polyphase energy meters
Protection relays and IEDs

Products

All

SN6505B Multi-Output

SN6505B Supplementary Insulation

	Order Code	Datasheet	Downloads	V_IN	f_switch (kHz)	V_Out1 (V)	I_Out1 (mA)	V_Out2 (V)	I_Out2 (mA)	V_Out3 (V)	I_Out3 (mA)	V_Out4 (V)	I_Out4 (mA)	∫Udt (Vµs)	L (µH)	N_PRI : N_SEC	Type of Insulation	V_T (V (AC))	L (mm)	W (mm)	H (mm)	Mount	Samples
	750316855	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT Download_LTSPICE_750316855 (rev1).zip \| 8 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1268 (rev1).wrl \| 332.5 KB Download all 8 files as zip archive ZIP	3.3 V (DC)	200 - 600	23	85	–	–	–	–	–	–	15	200	1:7	Supplementary	2500	8.3	14.75	4.2	SMT
	750316887	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT Download_LTSPICE_750316887 (rev1).zip \| 7.9 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1268 (rev1).wrl \| 332.5 KB Download all 8 files as zip archive ZIP	3.3 V (DC)	200 - 600	5	700	–	–	–	–	–	–	15	200	1:1.67	Supplementary	2500	8.3	14.75	4.2	SMT
	750316853	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT Download_LTSPICE_750316853 (rev1).zip \| 7.9 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1268 (rev1).wrl \| 332.5 KB Download all 8 files as zip archive ZIP	3.3 V (DC)	200 - 600	12	165	–	–	–	–	–	–	15	200	1:4	Supplementary	2500	8.3	14.75	4.2	SMT
	750317072	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT Download_LTSPICE_750317072 (rev1).zip \| 8 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1268 (rev1).wrl \| 332.5 KB Download all 8 files as zip archive ZIP	3.3 V (DC)	200 - 600	20	125	–	–	–	–	–	–	15	200	1:6.17	Supplementary	2500	8.3	14.75	4.2	SMT
	750316016	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1240 (rev1).IGS \| 2.1 MB STP Download_STP_250-1240 (rev1).STEP \| 958.2 KB Electric models ZIP LT Download_LTSPICE_750316016 (rev1).zip \| 8.9 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1240 (rev1).wrl \| 542.7 KB Download all 8 files as zip archive ZIP	5 V (DC)	400	12.85	100	5.7	200	-5.7	200	-12.85	100	8.9	60	1:2.57:1.14	Functional	2500	11.63	12.6	3.68	SMT
	750316017	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1240 (rev1).IGS \| 2.1 MB STP Download_STP_250-1240 (rev1).STEP \| 958.2 KB Electric models ZIP LT Download_LTSPICE_750316017 (rev1).zip \| 8.9 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1240 (rev1).wrl \| 542.7 KB Download all 8 files as zip archive ZIP	5 V (DC)	400	12.85	100	4.27	200	-4.27	200	-12.85	100	8.9	60	1.17:3:1	Functional	2500	11.63	12.6	3.68	SMT
	750316018	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1240 (rev1).IGS \| 2.1 MB STP Download_STP_250-1240 (rev1).STEP \| 958.2 KB Electric models ZIP LT Download_LTSPICE_750316018 (rev1).zip \| 8.8 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1240 (rev1).wrl \| 542.7 KB Download all 8 files as zip archive ZIP	5 V (DC)	400	15.7	85	5.7	200	-5.7	200	-15.7	85	8.9	60	1:3.14:1.14	Functional	2500	11.63	12.6	3.68	SMT
	750316668	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1239 (rev1).IGS \| 2.7 MB STP Download_STP_250-1239 (rev1).STEP \| 1.3 MB Electric models ZIP LT Download_LTSPICE_750316668 (rev1).zip \| 8.9 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1239 (rev1).wrl \| 617.6 KB Download all 8 files as zip archive ZIP	5 V (DC)	400	12.85	100	5.7	200	-5.7	200	-12.85	100	8.9	60	1:2.57:1.14	Functional	2500	11.63	12.6	1.98	SMT
	750316669	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1239 (rev1).IGS \| 2.7 MB STP Download_STP_250-1239 (rev1).STEP \| 1.3 MB Electric models ZIP LT Download_LTSPICE_750316669 (rev1).zip \| 8.9 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1239 (rev1).wrl \| 617.6 KB Download all 8 files as zip archive ZIP	5 V (DC)	400	12.85	100	4.27	200	-4.27	200	-12.85	100	8.9	60	1.17:3:1	Functional	2500	11.63	12.6	1.98	SMT
	750316670	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1239 (rev1).IGS \| 2.7 MB STP Download_STP_250-1239 (rev1).STEP \| 1.3 MB Electric models ZIP LT Download_LTSPICE_750316670 (rev1).zip \| 8.8 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1239 (rev1).wrl \| 617.6 KB Download all 8 files as zip archive ZIP	5 V (DC)	400	15.7	85	5.7	200	-5.7	200	-15.7	85	8.9	60	1:3.14:1.14	Functional	2500	11.63	12.6	1.98	SMT
	750316671	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1239 (rev1).IGS \| 2.7 MB STP Download_STP_250-1239 (rev1).STEP \| 1.3 MB Electric models ZIP LT Download_LTSPICE_750316671 (rev1).zip \| 8.8 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1239 (rev1).wrl \| 617.6 KB Download all 8 files as zip archive ZIP	5 V (DC)	400	15.7	100	4.27	200	-4.27	200	-15.7	100	8.9	60	1.17:3.67:1	Functional	2500	11.63	12.6	1.98	SMT
	750316019	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1240 (rev1).IGS \| 2.1 MB STP Download_STP_250-1240 (rev1).STEP \| 958.2 KB Electric models ZIP LT Download_LTSPICE_750316019 (rev1).zip \| 8.8 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1240 (rev1).wrl \| 542.7 KB Download all 8 files as zip archive ZIP	5 V (DC)	400	15.7	100	4.27	200	-4.27	200	-15.7	100	8.9	60	1.17:3.67:1	Functional	2500	11.63	12.6	3.68	SMT
	750316854	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT Download_LTSPICE_750316854 (rev1).zip \| 7.9 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1268 (rev1).wrl \| 332.5 KB Download all 8 files as zip archive ZIP	5 V (DC)	200 - 600	12	380	–	–	–	–	–	–	15	200	1:2.5	Supplementary	2500	8.3	14.75	4.2	SMT
	750316856	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT Download_LTSPICE_750316856 (rev1).zip \| 8 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1268 (rev1).wrl \| 332.5 KB Download all 8 files as zip archive ZIP	5 V (DC)	200 - 600	23	180	–	–	–	–	–	–	15	200	1:4.67	Supplementary	2500	8.3	14.75	4.2	SMT
	750316886	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT Download_LTSPICE_750316886 (rev1).zip \| 7.9 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1268 (rev1).wrl \| 332.5 KB Download all 8 files as zip archive ZIP	5 V (DC)	200 - 400	5	950	–	–	–	–	–	–	15	200	1:1.17	Supplementary	2500	8.3	14.75	4.2	SMT
	750316888	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-PPTI (rev23b).IntLib \| 1.4 MB CDS Cadence_WE-PPTI (rev23b).zip \| 5.6 MB EAG Eagle_WE-PPTI (rev23b).lbr \| 134.1 KB CAD files ZIP IGS Download_IGS_250-1268 (rev1).IGS \| 1.3 MB STP Download_STP_250-1268 (rev1).STEP \| 581.8 KB Electric models ZIP LT Download_LTSPICE_750316888 (rev1).zip \| 7.9 KB PSP Pspice_WE-PPTI (rev23a).zip \| 20.4 KB Others ZIP WRL Download_WRL_250-1268 (rev1).wrl \| 332.5 KB Download all 8 files as zip archive ZIP	5 V (DC)	200 - 600	3.3	1100	–	–	–	–	–	–	15	200	1.2:1	Supplementary	2500	8.3	14.75	4.2	SMT
