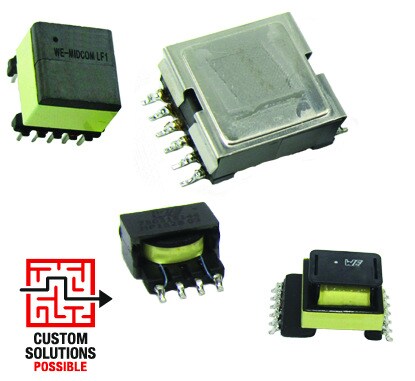

MID-FLYTI Flyback Transformers for Texas Instruments

Characteristics

Low leakage inductance
Low profile
Isolation voltage: up to 3600VAC at 1 second
Lead free and RoHS compliant
Operating temp: -40°C to 125°C

Applications

Industrial and medical power supplies
Auxiliary power supplies
Home automation
Isolated DC/DC power supplies

Products

All

EFD15

EFD20

EFD25

EP7

EP10

EP13

EPQ13

Order Code	Datasheet	Downloads	V_IN (V)	V_Out1 (V)	I_Out1 (mA)	V_Out2 (V)	I_Out2 (mA)	V_Out3 (V)	I_Out3 (mA)	V_aux (V)	f_switch (kHz)	L (µH)	N_PRI : N_SEC : N_AUX	I_SAT (A)	V_T (V (AC))	L (mm)	W (mm)	H (mm)	Mount	Size
750314189	SPEC	4 files CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT 750314189_LTspice (rev1).zip \| 6.6 KB Others ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 4 files as zip archive ZIP	3 - 6 V (DC)	5	200	–	–	–	–	–	200 - 600	2.5	1:1.67	–	2500	9.78	9.5	10.54	SMT	EP7
750313527	SPEC	5 files CAD files ZIP 3D 3D_070-4265 (rev1).PDF \| 58.9 KB IGS 070-4265 (rev1).IGS \| 3 MB STP Download_STP_070-4265_0173 (rev1).STEP \| 1.4 MB Electric models ZIP LT 750313527_LTspice (rev1).zip \| 7.2 KB Others ZIP WRL 070-4265 (rev1).wrl \| 200.8 KB Download all 5 files as zip archive ZIP	4.5 - 16 V (DC)	3.3	60	5	60	18	60	–	1.2	10	1.88:1:1.5:3.76	5.8	2500	17.15	22.23	8.89	SMT	EFD15
750342354	SPEC	4 files CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT 750342354_LTspice (rev1).zip \| 8.3 KB Others ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 4 files as zip archive ZIP	8 - 30 V (DC)	6	2000	–	–	–	–	–	400	12	1.2:1	4.5	1500	13.46	17.75	12.7	SMT	EP13
750317595	SPEC	3 files CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Others ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 3 files as zip archive ZIP	8 - 65 V (DC)	15	200	8	200	–	–	–	300	30	1:1:0.55	2.4	1500	9.76	9.5	10.54	SMT	EP7
760372002	SPEC	5 files CAD files ZIP 3D 3D_070-4476_clip (rev1).PDF \| 57.3 KB IGS 070-4476 (rev1).IGS \| 3.3 MB STP Download_STP_070-4476_0178_clip (rev1).STEP \| 1.5 MB Electric models ZIP LT 760372002_LTspice (rev1).zip \| 7.3 KB Others ZIP WRL 070-4476 (rev1).wrl \| 201 KB Download all 5 files as zip archive ZIP	9 - 36 V (DC)	5	2500	5	2500	5	100	–	200	25	2:1:1:1	7.5	1500	27.03	32.31	13.97	SMT	EFD25
750342984	SPEC	4 files CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT 750342984_LTspice (rev1).zip \| 7.3 KB Others ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 4 files as zip archive ZIP	9 - 16 V (DC)	15	100	-15	100	–	–	15	600	30	1.5:1:1:1	1	1500	9.75	9.5	10.54	SMT	EP7
750312791	SPEC	3 files CAD files ZIP 3D 3D_070-5899 (rev1).PDF \| 51 KB STP Download_STP_070-5899 (rev1).STEP \| 1.3 MB Electric models ZIP LT Download_LTSPICE_750312791 (rev1).zip \| 7.1 KB Download all 3 files as zip archive ZIP	9 - 57 V (DC)	56	350	–	–	–	–	12	200	10	1:5:1.13	8.75	1500	23.11	29.65	11.43	SMT	EFD20
750313102	SPEC	5 files CAD files ZIP 3D 3D_070-4275 (rev1).PDF \| 51.9 KB IGS Download_IGS_070-4275 (rev1).IGS \| 2.7 MB STP Download_STP_070-4275-0169 (rev1).STEP \| 1.3 MB Electric models ZIP LT Download_LTSPICE_750313102 (rev1).zip \| 7.2 KB Others ZIP WRL Download_WRL_070-4275 (rev1).WRL \| 159.7 KB Download all 5 files as zip archive ZIP	10 - 32 V (DC)	48	500	–	–	–	–	–	200	12	1:1:1:1	11.5	1500	23.11	29.08	11.43	SMT	EFD20
750316708	SPEC	4 files CAD files ZIP 3D 3D_070-2710_MP2-8 (rev1).PDF \| 40.2 KB IGS Download_IGS_070-2710_MP2-8 (rev1).IGS \| 1.8 MB STP Download_STP_070-2710_MP2-8 (rev1).STEP \| 841.7 KB Electric models ZIP LT Download_LTSPICE_750316708 (rev1).zip \| 6.4 KB Download all 4 files as zip archive ZIP	12 - 60 V (DC)	12	3000	–	–	–	–	12	100	42	3:1:1	7	1000	26.04	26.67	14.5	THT	EFD25
750317605	SPEC	4 files CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Electric models ZIP LT Download_LTspice_750317605 (rev1).zip \| 6 KB Others ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 4 files as zip archive ZIP	12 - 70 V (DC)	5	1000	–	–	–	–	–	350	30	3 : 1	2.6	625	9.78	9.5	10.54	SMT	EP7
750318701	SPEC	3 files CAD files ZIP 3D 3D_070-4390 (rev1).PDF \| 49 KB IGS Download_IGS_070-4390 (rev1).IGS \| 2 MB STP Download_STP_070-4390 (rev1).STEP \| 1 MB Download all 3 files as zip archive ZIP	12 - 42 V (DC)	12	1000	–	–	–	–	–	350	8.6	1:1	6.25	1500	10.8	13.35	9.14	SMT	EP7
750342985	SPEC	5 files CAD files ZIP 3D 3D_070-4482 (rev1).PDF \| 77 KB IGS 070-4482 (rev1).IGS \| 3.7 MB STP Download_STP_070-4482 (rev1).STEP \| 1.8 MB Electric models ZIP LT Download_LTSPICE_750342985 (rev1).zip \| 7.9 KB Others ZIP WRL 070-4482 (rev1).wrl \| 297 KB Download all 5 files as zip archive ZIP	15 - 36 V (DC)	24	500	6	100	6	100	24	300	30	7.33:4:1:1:4	2.6	1500	13.97	17.17	12.7	SMT	EP13
750318704	SPEC	3 files CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Others ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 3 files as zip archive ZIP	15 - 42 V (DC)	15	400	8	400	–	–	–	350	7	0.67:1:0.53	5.7	500	9.78	9.5	10.54	SMT	EP7
750317933	SPEC	5 files CAD files ZIP IGS Download_IGS_070-6389_MP4-8 (rev1).IGS \| 3.3 MB STP Download_STP_070-6389_MP4-8 (rev1).STEP \| 1.5 MB Others ZIP WRL Download_WRL_070-6389 (rev1).wrl \| 752.1 KB Download all 5 files as zip archive ZIP	15 - 36 V (DC)	5	4000	–	–	–	–	10	250	21	2:1:2	6.2	1500	13.97	18.25	14.5	SMT	EPQ13
750319029	SPEC	3 files CAD files ZIP IGS 070-4436 (rev1).IGS \| 1.6 MB STP 070-4436 (rev1).STEP \| 793 KB Others ZIP WRL 070-4436 (rev1).wrl \| 125.5 KB Download all 3 files as zip archive ZIP	15 - 42 V (DC)	12	1000	–	–	–	–	–	350	7	1:1	6.4	1500	9.78	9.5	10.54	SMT	EP7
750317594	SPEC	3 files CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Others ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 3 files as zip archive ZIP	18 - 30 V (DC)	24	350	–	–	–	–	12	300	20	1:1:0.5	6	1875	13.46	17.75	12.7	SMT	EP13
750318517	SPEC	2 files CAD files ZIP IGS 070-6052 (rev1).IGS \| 1.7 MB STP 070-6052 (rev1).STEP \| 845.9 KB Download all 2 files as zip archive ZIP	18 - 57 V (DC)	4	1600	5	10	–	–	10	250	200	5.09:1.27:1:2.55	1	2125	13.34	15.24	11.43	SMT	EP10
750344600	SPEC	4 files CAD files ZIP 3D 3D_070-5801 (rev1).PDF \| 69.7 KB IGS 070-5801 (rev1).IGS \| 2.3 MB STP 070-5801 (rev1).STEP \| 1 MB Others ZIP WRL 070-5801 (rev1).wrl \| 201.8 KB Download all 4 files as zip archive ZIP	20 - 28 V (DC)	19	250	6	250	–	–	–	350	35	1:1:0.33	1.5	1500	10.16	13.36	9.14	SMT	EP7
750315252	SPEC	5 files CAD files ZIP 3D 3D_070-2609 (rev1).PDF \| 33.3 KB IGS Download_IGS_070-2609 (rev1).IGS \| 1.4 MB STP Download_STP_070-2609 (rev1).STEP \| 622.3 KB Electric models ZIP LT Download_LTSPICE_750315252 (rev1).zip \| 6 KB Others ZIP WRL Download_WRL_070-2609 (rev1).wrl \| 96 KB Download all 5 files as zip archive ZIP	24 - 48 V (DC)	24	1000	–	–	–	–	–	130	60	1:1.33	3.8	3000	21.08	21.08	11.05	THT	EFD20
750315623	SPEC	5 files CAD files ZIP 3D 3D_070-4476_clip (rev1).PDF \| 57.3 KB IGS 070-4476 (rev1).IGS \| 3.3 MB STP Download_STP_070-4476_0178_clip (rev1).STEP \| 1.5 MB Electric models ZIP LT 750315623_LTspice (rev1).zip \| 8.1 KB Others ZIP WRL 070-4476 (rev1).wrl \| 201 KB Download all 5 files as zip archive ZIP	25 - 520 V (DC)	24	1250	–	–	–	–	24	100	100	2:1:1	4.8	1772	27.03	32.45	13.97	SMT	EFD25
750311805	SPEC	4 files CAD files ZIP 3D 3D_070-4265 (rev1).PDF \| 58.9 KB IGS 070-4265 (rev1).IGS \| 3 MB STP Download_STP_070-4265_0173 (rev1).STEP \| 1.4 MB Others ZIP WRL 070-4265 (rev1).wrl \| 200.8 KB Download all 4 files as zip archive ZIP	36 - 57	12	830	6	–	–	–	10	150	166.5	4:2:1:2	1.4	1500	17.78	22.35	8.89	SMT	EFD15
750318525	SPEC	3 files CAD files ZIP IGS Download_IGS_070-6389 (rev1).IGS \| 3.5 MB STP Download_STP_070-6389 (rev1).STEP \| 1.6 MB Others ZIP WRL Download_WRL_070-6389 (rev1).wrl \| 752.1 KB Download all 3 files as zip archive ZIP	36 - 57 V (DC)	5	2400	–	–	–	–	10.5	250	150	6:1:1:2.25	1.5	1500	13.97	18.25	14.5	SMT	EPQ13
750319214	SPEC	3 files CAD files ZIP IGS Download_IGS_070-6389 (rev1).IGS \| 3.5 MB STP Download_STP_070-6389 (rev1).STEP \| 1.6 MB Others ZIP WRL Download_WRL_070-6389 (rev1).wrl \| 752.1 KB Download all 3 files as zip archive ZIP	36 - 57 V (DC)	24	1000	–	–	–	–	10.5	250	65	6:1:5:2.33	2.6	1500	13.97	18.25	14.5	SMT	EPQ13
750344050	SPEC	3 files CAD files ZIP IGS 070-4476 (rev1).IGS \| 3.3 MB STP 070-4476 (rev1).STEP \| 1.5 MB Others ZIP WRL 070-4476 (rev1).wrl \| 201 KB Download all 3 files as zip archive ZIP	40 - 180 V (DC)	24	2000	–	–	–	–	13	50	65	1.85:1:0.54	7.95	2000	27.03	32.45	13.69	SMT	EFD25
750315778	SPEC	5 files CAD files ZIP 3D 3D_070-4476_clip (rev1).PDF \| 57.3 KB IGS 070-4476 (rev1).IGS \| 3.3 MB STP Download_STP_070-4476_0178_clip (rev1).STEP \| 1.5 MB Electric models ZIP LT 750315778_LTspice (rev1).zip \| 8.1 KB Others ZIP WRL 070-4476 (rev1).wrl \| 201 KB Download all 5 files as zip archive ZIP	42.5 - 57 V (DC)	12	4300	–	–	–	–	12	225 - 270	62	3.19:1:1	5.2	1500	27.03	32.45	13.97	SMT	EFD25
