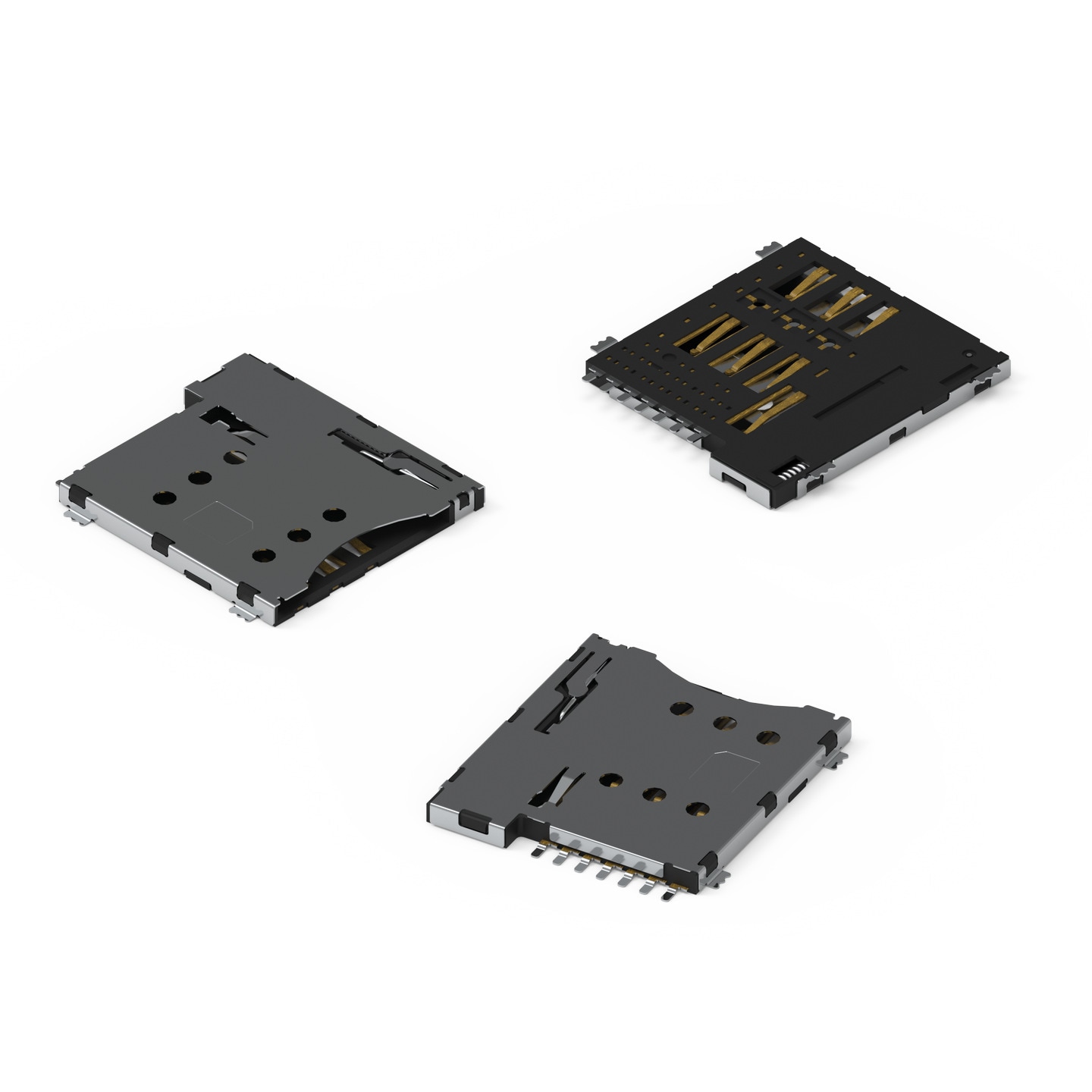

WR-CRD Micro SIM Card Connector Push & Push with Card Detection

General Information
Operating Temperature	-20 °C up to +70 °C
Gender	Receptacle
Type	Push & Push

Material Properties
Insulator Material	LCP
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Brass
Contact Plating	Gold over Nickel
Shielding Material	Steel
Shielding Plating	Tin

Electrical Properties
Working Voltage	50 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	100 mΩ

Products

Order Code	Datasheet	Downloads	Gender	Type	Operating Temperature	Working Voltage (V (AC))	Design Kit	Samples
693021020811	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-CRD (rev23b).IntLib \| 5.4 MB CDS Cadence_WR-CRD (rev23a).zip \| 30.3 MB EAG Eagle_WR-CRD (rev23a).lbr \| 160.8 KB CAD files ZIP 3D 3D_WR-UMRF_693021020811 (rev1).pdf \| 1.5 MB IGS IGS_WR-UMRF_693021020811 (rev1).igs \| 9.3 MB STP STP_WR-UMPRF_693021020811 (rev1).stp \| 2.3 MB Download all 6 files as zip archive ZIP	Receptacle	Push & Push	-20 °C up to +70 °C	50	612690

Order Code	Datasheet
693021020811	SPEC

Samples

Order Code	Datasheet	Downloads	Gender	Type	Operating Temperature	Working Voltage (V (AC))	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions
