Elara-II

GNSS Module

Elara-II

Characteristics

  • Smallest GNSS module on the market
  • Fully-featured GNSS module with external antenna connector
  • Concurrent tracking of multiple constellations

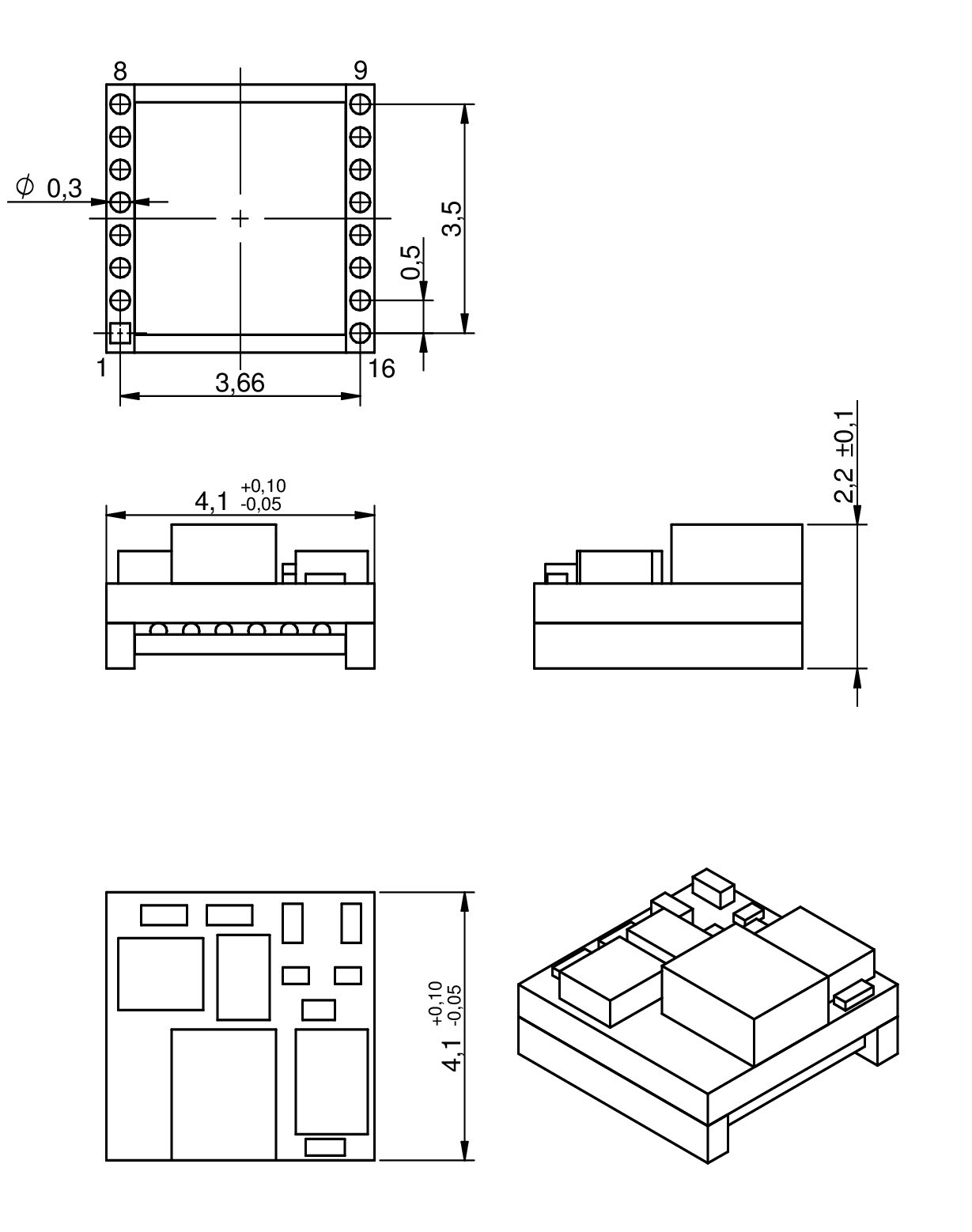

  • Ultra small size: 4.1 x 4.1 x 2.2 mm
  • Integrated LNA, SAW filter, TCXO and RTC
  • 1.5 m position accuracy (GPS-GLONASS)
  • Fast acquisition time: 1 s (hot start), 28 s (cold start)
  • High sensitivity
  • UART, I²C and SPI interfaces
  • Based on Qualcomm SirfStar V 5e chipset
  • Standard NMEA + chipset-specific communication protocol
  • Low power operation to support battery-operated applications
  • Industrial temperature range: -40 °C up to +85 °C
  • CE conformity
  • WENSS - Würth Elektronik Navigation Satellite Software

Due to external factors, this component is subject to a PTN, orders are no longer possible.

Applications

  • Tracking and navigation devices
  • Container localization
  • Fleet management
  • Location support for rescue
  • Cartography
  • Autonomous agricultural machines
  • Geotagging for digital cameras
  • Animal tracking
  • Time reference for worldwide events/machine synchronization

Products

Order Code Data­sheet Simu­lation DownloadsDescriptionAntenna Offer
2613021137000
2 files Elara-IIHalimede-I
7488920157
Order Code Data­sheet Simu­lation
2613021137000
Offer
Order Code Data­sheet Simu­lation DownloadsDescriptionAntenna Offer

Software Downloads

WENSS - Würth Elektronik Navigation Satellite Software

The Würth Elektronik Navigation and Satellite Software, WENSS for short, is a simple PC tool to interact with the EV-Boards of the Würth Elektronik eiSos positioning modules using the UART interface. It allows:

  • Taking into operation of the EV-board
  • Bidirectional communication with the GNSS module
  • Evaluation of module capabilities and features
  • Getting familiar with module protocols, sentences and commands
  • Configuration of the module without knowledge of the protocols
  • Parsing of sentences and commands
    Experienced users have the opportunity to use WENSS for more advanced configurations.
    Therefore it allows an easy evaluation of positioning application.

    Download now

Areas of Application

  • Tracking and navigation devices
  • Container localization
  • Fleet management
  • Location support for rescue
  • Cartography
  • Autonomous agricultural machines
  • Geotagging for digital cameras
  • Animal tracking
  • Time reference for worldwide events/ machine synchronization

GNSS

GNSS (Global Navigation Satellite System) is a system, which provides positioning and time synchronizationcapabilities to an unlimited number of users worldwide. The system is based on signals from the following four satellite constellations.
Signals from the different constellations can coexist on the same frequency bands. Each GNSS providesdifferent signals and services over these frequency bands with different access policies. For example, opensignals on the L1 frequency band are mostly used for civil commercial applications.

GNSS Frequency Bands
