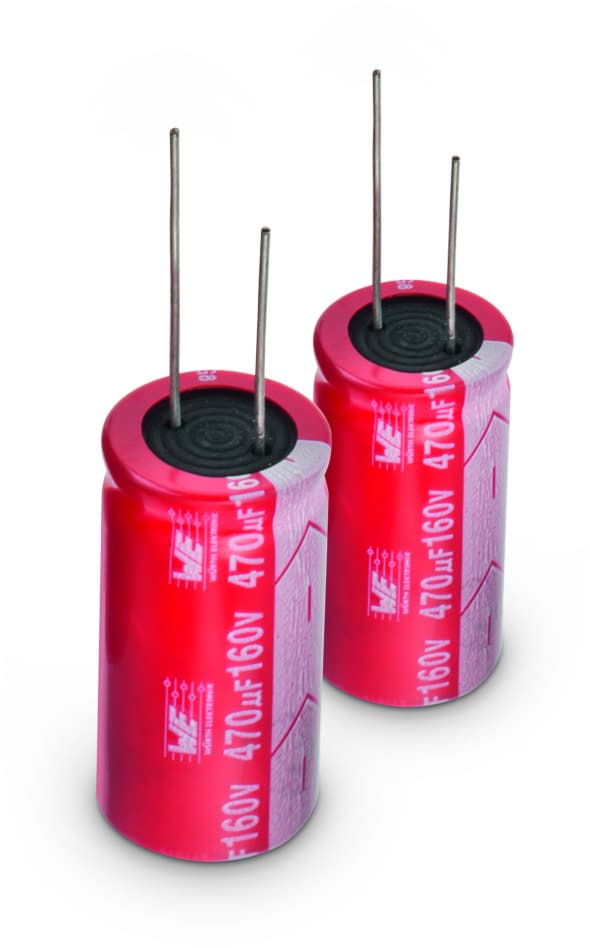

Characteristics
- General purpose product series with max. operating temperature of +85 °C
- Wide range of capacitance value
- Mounting style: THT Radial
- Capacitance range: 0.1 µF ‒ 33000 µF
- Capacitance tolerance: ±20 %
- Voltage range (UR): 10 ‒ 400 V(DC)
-
Operating temperature:
-40 °C up to +85 °C for UR < 400 V(DC)
-25 °C up to +85 °C for UR ≥ 400 V(DC) - Endurance: 2000 h @ +85 °C
- Dimensions (DxL) in mm: 5.0 x 11.0 up to 22.0 x 51.0
- Recommended soldering: Wave soldering
Applications
- Filtering
- Smoothing
- Energy storage
- Coupling
- e.g. Switched-mode power supply, AC/DC converter, adapter, charger, digital camera
Products
| Order Code | SPEC | Simulation | Downloads | C | VR
(V (DC)) |
ILeak
(µA) |
DF
(%) |
IRIPPLE
(mA) |
Operating Temperature | Pitch
(mm) |
Ø D
(mm) |
L
(mm) |
Technical Reference | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860010672001 |
|
ALT EAG CAD LTS PSP CAD CAD | 0.1 µF | 50 | 3 | 10 | 3.3 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110R10M050DSPA3B000 | – | ||
| 860010772001 |
|
ALT EAG CAD LTS PSP CAD CAD | 0.1 µF | 63 | 3 | 9 | 4 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110R10M063DSPA3B000 |
860012
|
||
| 860010672002 |
|
ALT EAG CAD LTS PSP CAD CAD | 0.22 µF | 50 | 3 | 10 | 3.3 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110R22M050DSPA3B000 | – | ||
| 860010772002 |
|
ALT EAG CAD LTS PSP CAD CAD | 0.22 µF | 63 | 3 | 9 | 4 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110R22M063DSPA3B000 |
860012
|
||
| 860010672003 |
|
ALT EAG CAD LTS PSP CAD CAD | 0.33 µF | 50 | 3 | 10 | 5.5 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110R33M050DSPA3B000 | – | ||
| 860010772003 |
|
ALT EAG CAD LTS PSP CAD CAD | 0.33 µF | 63 | 3 | 9 | 6 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110R33M063DSPA3B000 |
860012
|
||
| 860010672004 |
|
ALT EAG CAD LTS PSP CAD CAD | 0.47 µF | 50 | 3 | 10 | 7.5 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110R47M050DSPA3B000 | – | ||
| 860010772004 |
|
ALT EAG CAD LTS PSP CAD CAD | 0.47 µF | 63 | 3 | 9 | 8 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110R47M063DSPA3B000 |
860012
|
||
| 860011373001 |
|
ALT EAG CAD LTS PSP CAD CAD | 0.47 µF | 400 | 5.64 | 15 | 12 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATAD110R47M400DSPA4B000 |
860013
|
||
| 860010672005 |
|
ALT EAG CAD LTS PSP CAD CAD | 1 µF | 50 | 3 | 10 | 17 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110010M050DSPA3B000 | – | ||
| 860010772005 |
|
ALT EAG CAD LTS PSP CAD CAD | 1 µF | 63 | 3 | 9 | 17 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110010M063DSPA3B000 |
860012
|
||
| 860011373002 |
|
ALT EAG CAD LTS PSP CAD CAD | 1 µF | 400 | 12 | 15 | 20 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATAD110010M400DSPA4B000 |
860013
|
||
| 860010672006 |
|
ALT EAG CAD LTS PSP CAD CAD | 2.2 µF | 50 | 3 | 10 | 28 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC1102R2M050DSPA3B000 | – | ||
| 860010772006 |
|
ALT EAG CAD LTS PSP CAD CAD | 2.2 µF | 63 | 3 | 9 | 31 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC1102R2M063DSPA3B000 |
860012
|
||
| 860011374003 |
|
ALT EAG CAD LTS PSP CAD CAD | 2.2 µF | 400 | 26.4 | 15 | 32 | -40 °C up to +85 °C | 3.5 | 8 | 11.5 | ATAE1152R2M400DSPA7B000 |
860013
|
||
| 860010672007 |
|
ALT EAG CAD LTS PSP CAD CAD | 3.3 µF | 50 | 3 | 10 | 39 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC1103R3M050DSPA3B000 | – | ||
| 860010772007 |
|
ALT EAG CAD LTS PSP CAD CAD | 3.3 µF | 63 | 3 | 9 | 39 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC1103R3M063DSPA3B000 |
860012
|
||
| 860011374004 |
|
ALT EAG CAD LTS PSP CAD CAD | 3.3 µF | 400 | 39.6 | 15 | 45 | -40 °C up to +85 °C | 3.5 | 8 | 11.5 | ATAE1153R3M400DSPA7B000 |
860013
|
||
| 860010472001 |
|
ALT EAG CAD LTS PSP CAD CAD | 4.7 µF | 25 | 3 | 14 | 34 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC1104R7M025DSPA3B000 | – | ||
| 860010672008 |
|
ALT EAG CAD LTS PSP CAD CAD | 4.7 µF | 50 | 3 | 10 | 46 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC1104R7M050DSPA3B000 | – | ||
| 860010572001 |
|
ALT EAG CAD CAD CAD | 4.7 µF | 35 | 3 | 12 | 44 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC1104R7M035DSPA3B000 |
860011
|
||
| 860010772008 |
|
ALT EAG CAD LTS PSP CAD CAD | 4.7 µF | 63 | 3 | 9 | 50 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC1104R7M063DSPA3B000 |
860012
|
||
| 860011374005 |
|
ALT EAG CAD LTS PSP CAD CAD | 4.7 µF | 400 | 56.4 | 15 | 55 | -40 °C up to +85 °C | 3.5 | 8 | 11.5 | ATAE1154R7M400DSPA7B000 |
860013
|
||
| 860010372001 |
|
ALT EAG CAD LTS PSP CAD CAD | 10 µF | 16 | 3 | 16 | 44 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110100M016DSPA3B000 |
860010
|
||
| 860010472002 |
|
ALT EAG CAD LTS PSP CAD CAD | 10 µF | 25 | 3 | 14 | 50 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110100M025DSPA3B000 | – | ||
| 860010672009 |
|
ALT EAG CAD LTS PSP CAD CAD | 10 µF | 50 | 5 | 10 | 72 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110100M050DSPA3B000 | – | ||
| 860010572002 |
|
ALT EAG CAD LTS PSP CAD CAD | 10 µF | 35 | 3.5 | 12 | 66 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110100M035DSPA3B000 |
860011
|
||
| 860010772009 |
|
ALT EAG CAD LTS PSP CAD CAD | 10 µF | 63 | 6.3 | 9 | 77 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110100M063DSPA3B000 |
860012
|
||
| 860011375006 |
|
ALT EAG CAD LTS PSP CAD CAD | 10 µF | 400 | 120 | 15 | 100 | -40 °C up to +85 °C | 5 | 10 | 16 | ATAF160100M400DSPAAB000 |
860013
|
||
| 860010372002 |
|
ALT EAG CAD LTS PSP CAD CAD | 22 µF | 16 | 3.52 | 16 | 83 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110220M016DSPA3B000 |
860010
|
||
| 860010472003 |
|
ALT EAG CAD LTS PSP CAD CAD | 22 µF | 25 | 5.5 | 14 | 94 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110220M025DSPA3B000 | – | ||
| 860010672010 |
|
ALT EAG CAD LTS PSP CAD CAD | 22 µF | 50 | 11 | 10 | 110 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110220M050DSPA3B000 | – | ||
| 860010272001 |
|
ALT EAG CAD LTS PSP CAD CAD | 22 µF | 10 | 3 | 19 | 66 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110220M010DSPA3B000 | – | ||
| 860010572003 |
|
ALT EAG CAD LTS PSP CAD CAD | 22 µF | 35 | 7.7 | 12 | 108 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110220M035DSPA3B000 |
860011
|
||
| 860010773010 |
|
ALT EAG CAD LTS PSP CAD CAD | 22 µF | 63 | 13.86 | 9 | 127 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110220M063DSPA4B000 |
860012
|
||
| 860011378007 |
|
ALT EAG CAD LTS PSP CAD CAD | 22 µF | 400 | 264 | 15 | 190 | -40 °C up to +85 °C | 5 | 13 | 20 | ATAI200220M400DSPACB000 |
860013
|
||
| 860010372003 |
|
ALT EAG CAD LTS PSP CAD CAD | 33 µF | 16 | 5.28 | 16 | 84 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110330M016DSPA3B000 |
860010
|
||
| 860010472004 |
|
ALT EAG CAD LTS PSP CAD CAD | 33 µF | 25 | 8.25 | 14 | 105 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110330M025DSPA3B000 | – | ||
| 860010672011 |
|
ALT EAG CAD LTS PSP CAD CAD | 33 µF | 50 | 16.5 | 10 | 132 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110330M050DSPA3B000 | – | ||
| 860010272002 |
|
ALT EAG CAD LTS PSP CAD CAD | 33 µF | 10 | 3.3 | 19 | 88 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110330M010DSPA3B000 | – | ||
| 860010572004 |
|
ALT EAG CAD LTS PSP CAD CAD | 33 µF | 35 | 11.55 | 12 | 121 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110330M035DSPA3B000 |
860011
|
||
| 860010773011 |
|
ALT EAG CAD LTS PSP CAD CAD | 33 µF | 63 | 20.79 | 9 | 149 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110330M063DSPA4B000 |
860012
|
||
| 860011378008 |
|
ALT EAG CAD LTS PSP CAD CAD | 33 µF | 400 | 396 | 15 | 230 | -40 °C up to +85 °C | 5 | 13 | 25 | ATAI250330M400DSPACB000 |
860013
|
||
| 860010372004 |
|
ALT EAG CAD LTS PSP CAD CAD | 47 µF | 16 | 7.52 | 16 | 132 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110470M016DSPA3B000 |
860010
|
||
| 860010472005 |
|
ALT EAG CAD LTS PSP CAD CAD | 47 µF | 25 | 11.75 | 14 | 132 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110470M025DSPA3B000 | – | ||
| 860010272003 |
|
ALT EAG CAD LTS PSP CAD CAD | 47 µF | 10 | 4.7 | 19 | 105 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110470M010DSPA3B000 | – | ||
| 860010572005 |
|
ALT EAG CAD LTS PSP CAD CAD | 47 µF | 35 | 16.45 | 12 | 143 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110470M035DSPA3B000 |
860011
|
||
| 860010673012 |
|
ALT EAG CAD LTS PSP CAD CAD | 47 µF | 50 | 23.5 | 10 | 165 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110470M050DSPA4B000 | – | ||
| 860010773012 |
|
ALT EAG CAD LTS PSP CAD CAD | 47 µF | 63 | 29.61 | 9 | 198 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110470M063DSPA4B000 |
860012
|
||
| 860011380009 |
|
ALT EAG CAD LTS PSP CAD CAD | 47 µF | 400 | 564 | 15 | 270 | -40 °C up to +85 °C | 7.5 | 16 | 25 | ATAK250470M400DSPAEB000 |
860013
|
||
| 860010372005 |
|
ALT EAG CAD LTS PSP CAD CAD | 68 µF | 16 | 10.88 | 16 | 149 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110680M016DSPA3B000 |
860010
|
||
| 860010272004 |
|
ALT EAG CAD LTS PSP CAD CAD | 68 µF | 10 | 6.8 | 19 | 132 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110680M010DSPA3B000 | – | ||
| 860010473006 |
|
ALT EAG CAD LTS PSP CAD CAD | 68 µF | 25 | 17 | 14 | 176 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110680M025DSPA4B000 | – | ||
| 860010573006 |
|
ALT EAG CAD LTS PSP CAD CAD | 68 µF | 35 | 23.8 | 12 | 198 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110680M035DSPA4B000 |
860011
|
||
| 860010674013 |
|
ALT EAG CAD LTS PSP CAD CAD | 68 µF | 50 | 34 | 10 | 220 | -40 °C up to +85 °C | 3.5 | 8 | 11.5 | ATBE115680M050DSPA7B000 | – | ||
| 860010774013 |
|
ALT EAG CAD LTS PSP CAD CAD | 68 µF | 63 | 42.84 | 9 | 253 | -40 °C up to +85 °C | 3.5 | 8 | 11.5 | ATBE115680M063DSPA7B000 |
860012
|
||
| 860011380010 |
|
ALT EAG CAD LTS PSP CAD CAD | 68 µF | 400 | 816 | 15 | 410 | -40 °C up to +85 °C | 7.5 | 16 | 35.5 | ATAK355680M400DSPADB000 |
860013
|
||
| 860011381011 |
|
ALT EAG CAD LTS PSP CAD CAD | 68 µF | 400 | 816 | 15 | 380 | -40 °C up to +85 °C | 7.5 | 18 | 25 | ATAL250680M400DSPAEB000 |
860013
|
||
| 860010372006 |
|
ALT EAG CAD LTS PSP CAD CAD | 100 µF | 16 | 16 | 16 | 176 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110101M016DSPA3B000 |
860010
|
||
| 860010272005 |
|
ALT EAG CAD LTS PSP CAD CAD | 100 µF | 10 | 10 | 19 | 198 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110101M010DSPA3B000 | – | ||
| 860010473007 |
|
ALT EAG CAD LTS PSP CAD CAD | 100 µF | 25 | 25 | 14 | 209 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110101M025DSPA4B000 | – | ||
| 860010573007 |
|
ALT EAG CAD LTS PSP CAD CAD | 100 µF | 35 | 35 | 12 | 231 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110101M035DSPA4B000 |
860011
|
||
| 860010674014 |
|
ALT EAG CAD LTS PSP CAD CAD | 100 µF | 50 | 50 | 10 | 286 | -40 °C up to +85 °C | 3.5 | 8 | 11.5 | ATBE115101M050DSPA7B000 | – | ||
| 860010775014 |
|
ALT EAG CAD LTS PSP CAD CAD | 100 µF | 63 | 63 | 9 | 330 | -40 °C up to +85 °C | 5 | 10 | 12.5 | ATBF125101M063DSPA9B000 |
860012
|
||
| 860011381012 |
|
ALT EAG CAD LTS PSP CAD CAD | 100 µF | 400 | 1200 | 15 | 440 | -40 °C up to +85 °C | 7.5 | 18 | 31.5 | ATAL315101M400DSPAEB000 |
860013
|
||
| 860010272006 |
|
ALT EAG CAD LTS PSP CAD CAD | 120 µF | 10 | 12 | 19 | 209 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110121M010DSPA3B000 | – | ||
| 860010373007 |
|
ALT EAG CAD LTS PSP CAD CAD | 120 µF | 16 | 19.2 | 16 | 231 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110121M016DSPA4B000 |
860010
|
||
| 860010473008 |
|
ALT EAG CAD LTS PSP CAD CAD | 120 µF | 25 | 30 | 14 | 253 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110121M025DSPA4B000 | – | ||
| 860010674015 |
|
ALT EAG CAD LTS PSP CAD CAD | 120 µF | 50 | 60 | 10 | 319 | -40 °C up to +85 °C | 3.5 | 8 | 11.5 | ATBE115121M050DSPA7B000 | – | ||
| 860010574008 |
|
ALT EAG CAD LTS PSP CAD CAD | 120 µF | 35 | 42 | 12 | 275 | -40 °C up to +85 °C | 3.5 | 8 | 11.5 | ATBE115121M035DSPA7B000 |
860011
|
||
| 860010775015 |
|
ALT EAG CAD LTS PSP CAD CAD | 120 µF | 63 | 75.6 | 9 | 396 | -40 °C up to +85 °C | 5 | 10 | 16 | ATBF160121M063DSPAAB000 |
860012
|
||
| 860011381013 |
|
ALT EAG CAD LTS PSP CAD CAD | 120 µF | 400 | 1440 | 15 | 520 | -40 °C up to +85 °C | 7.5 | 18 | 41 | ATAL410121M400DSPS1B000 |
860013
|
||
| 860010272007 |
|
ALT EAG CAD LTS PSP CAD CAD | 150 µF | 10 | 15 | 19 | 231 | -40 °C up to +85 °C | 2 | 5 | 11 | ATBC110151M010DSPA3B000 | – | ||
| 860010373008 |
|
ALT EAG CAD CAD CAD | 150 µF | 16 | 24 | 16 | 253 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110151M016DSPA4B000 |
860010
|
||
| 860010473009 |
|
ALT EAG CAD LTS PSP CAD CAD | 150 µF | 25 | 37.5 | 14 | 275 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110151M025DSPA4B000 | – | ||
| 860010574009 |
|
ALT EAG CAD LTS PSP CAD CAD | 150 µF | 35 | 52.5 | 12 | 308 | -40 °C up to +85 °C | 3.5 | 8 | 11.5 | ATBE115151M035DSPA7B000 |
860011
|
||
| 860010675016 |
|
ALT EAG CAD LTS PSP CAD CAD | 150 µF | 50 | 75 | 10 | 363 | -40 °C up to +85 °C | 5 | 10 | 12.5 | ATBF125151M050DSPA9B000 | – | ||
| 860010775016 |
|
ALT EAG CAD LTS PSP CAD CAD | 150 µF | 63 | 94.5 | 9 | 462 | -40 °C up to +85 °C | 5 | 10 | 16 | ATBF160151M063DSPAAB000 |
860012
|
||
| 860010373009 |
|
ALT EAG CAD LTS PSP CAD CAD | 180 µF | 16 | 28.8 | 16 | 275 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110181M016DSPA4B000 |
860010
|
||
| 860010473010 |
|
ALT EAG CAD LTS PSP CAD CAD | 180 µF | 25 | 45 | 14 | 280 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110181M025DSPA4B000 | – | ||
| 860010273008 |
|
ALT EAG CAD LTS PSP CAD CAD | 180 µF | 10 | 18 | 19 | 253 | -40 °C up to +85 °C | 2.5 | 6.3 | 11 | ATBD110181M010DSPA4B000 | – | ||
| 860010574010 |
|
ALT EAG CAD LTS PSP CAD CAD | 180 µF | 35 | 63 | 12 | 352 | -40 °C up to +85 °C | 3.5 | 8 | 11.5 | ATBE115181M035DSPA7B000 |
860011
|
||
| 860010675017 |
|
ALT EAG CAD LTS PSP CAD CAD | 180 µF | 50 | 90 | 10 | 418 | -40 °C up to +85 °C | 5 |
