Product unit Electromechanical Components Product group REDCUBE Terminals Product family REDCUBE SMT Product sub-family SMT with internal thread Product series REDCUBE SMT with internal through-hole thread WP-SMBU
Product unit Electromechanical Components Product group REDCUBE Terminals Product family REDCUBE SMT Product sub-family SMT with internal thread Product series REDCUBE SMT with internal through-hole thread WP-SMBU

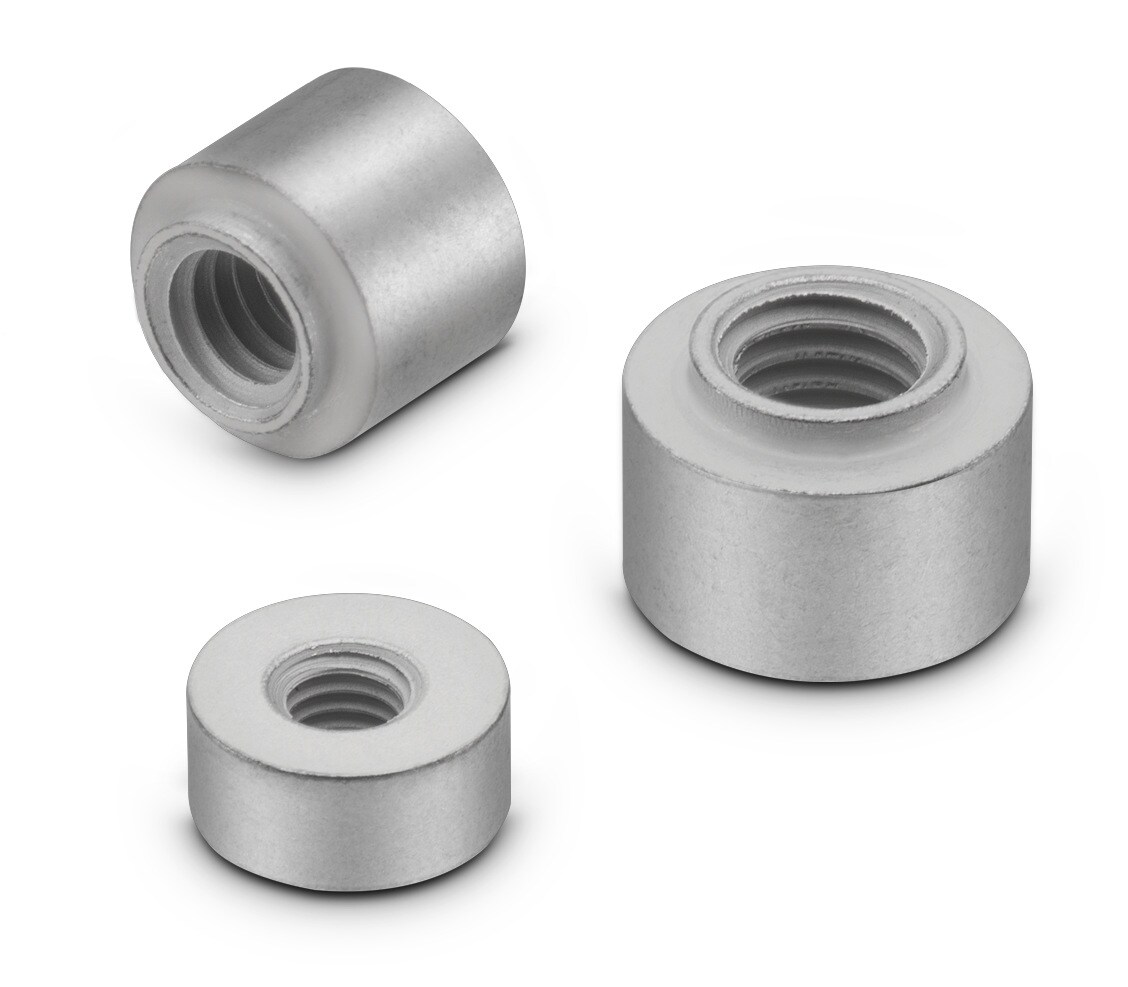

REDCUBE SMT with internal through-hole thread WP-SMBU

Applications

  • Solderable high current Wire-to-Board & Board-to-Board connections with a focus on automated assembly
  • IMS boards or one layer applications
Properties
Material Brass
Surface Tin
Operating Temperature -55 up to +150 °C
Qty. 500; 600; 950
Electrical Properties
IR 1 50 A; 70 A
Packaging Properties
Packaging Bulk; Tape and Reel

4power!

REDCUBE Terminals are the most reliable high-power contact on PCB level. Low contact resistance guarantees minimum self-heating.

Product video, applications and more

Products

Order Code SPEC Downloads H
(mm) 		Ø OD
(mm) 		IR 1
(A) 		Ti Tl
(mm) 		Design Kit Samples
746600330
STE 3D ALT EAG IGS CAD 3 7 50 M3 4 –
746600330R
STE 3D ALT EAG IGS CAD 3 7 50 M3 4 –
746600430
STE 3D ALT EAG IGS CAD 3 7 50 M4 4 746701
746600430R
STE 3D ALT EAG IGS CAD 3 7 50 M4 4 –
7466003
STE ALT EAG IGS CAD 5 7 50 M3 6 –
7466004
STE ALT EAG IGS CAD 5 7 50 M4 6 –
7466003R
STE ALT EAG IGS CAD 5 7 50 M3 6 –
7466004R
STE ALT EAG IGS CAD 5 7 50 M4 6 –
7466005
STE 3D ALT EAG IGS CAD 5 9 70 M5 6 –
7466005R
STE 3D ALT EAG IGS CAD 5 9 70 M5 6 –
Order Code SPEC
746600330
746600330R
746600430
746600430R
7466003
7466004
7466003R
7466004R
7466005
7466005R
Samples
Order Code SPEC Downloads H
(mm) 		Ø OD
(mm) 		IR 1
(A) 		Ti Tl
(mm) 		Design Kit Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit REDCUBE
