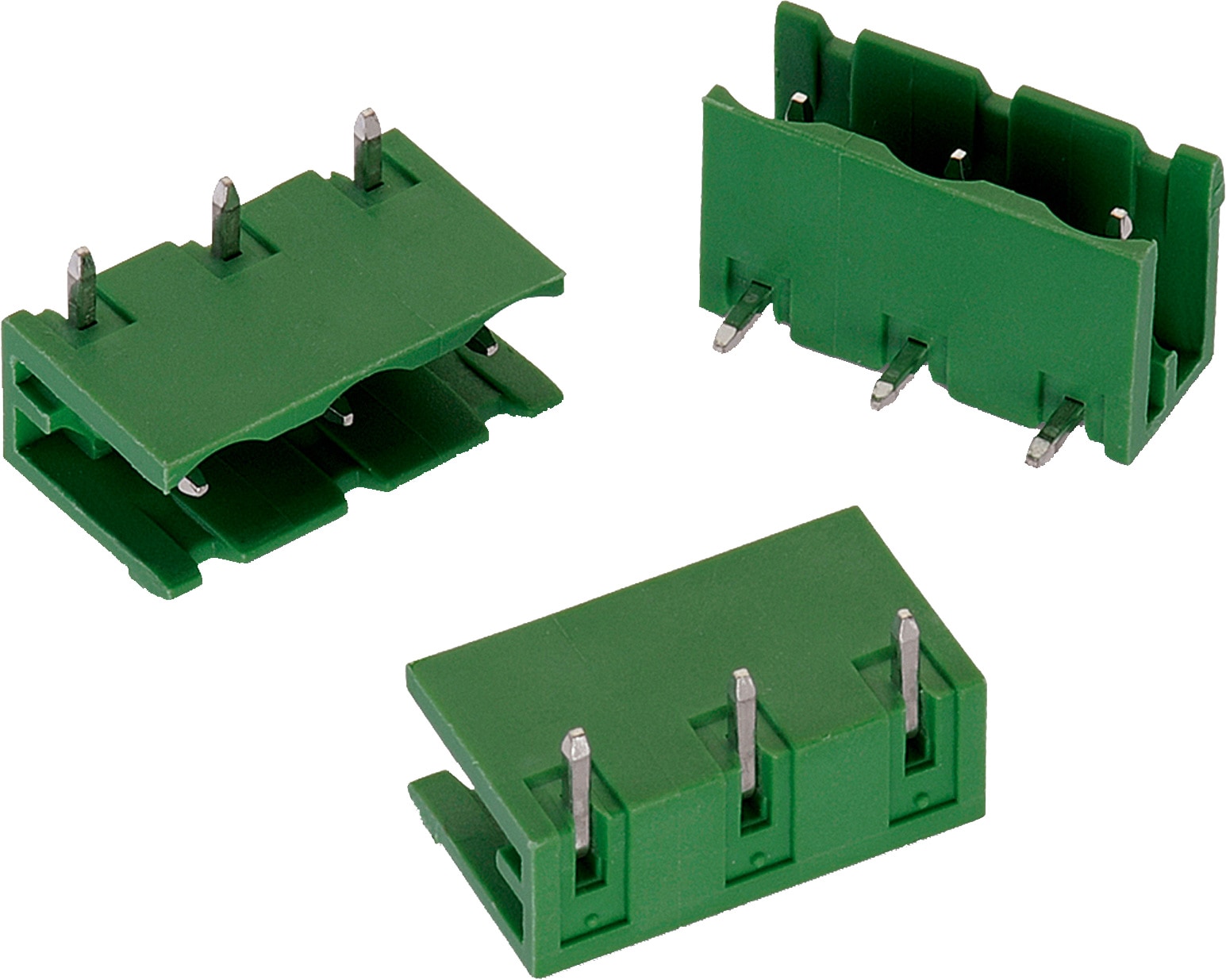

WR-TBL Serie 3124 - 7.62 mm Open Horizontal PCB Header

Kind Properties
Pitch 7.62 mm
Material Properties
Insulator Material PBT
Insulator Flammability Rating UL94 V-0
Contact Material Brass
Contact Plating Tin
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Electrical Properties
IR cULus 20 A
Working Voltage [cULus] 300 V (AC)
Withstanding Voltage [cULus] 1600 V (AC)
Contact Resistance [cULus] 20 mΩ
Certification
cULus Approval E315414

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Design Kit Samples
691312410002
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 2 691001
691312410003
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 3
691312410004
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 4
691312410005
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 5
691312410006
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 6
691312410008
STE 3D ALT EAG IGS CAD Pluggable PCB No Horizontal 8
691312410007
IGE STE 3D ALT EAG CAD Pluggable PCB No Horizontal 7
691312410012
IGE STE 3D ALT EAG CAD Pluggable PCB No Horizontal 12
Order Code SPEC
691312410002
691312410003
691312410004
691312410005
691312410006
691312410008
691312410007
691312410012
Samples
Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Design Kit Samples
