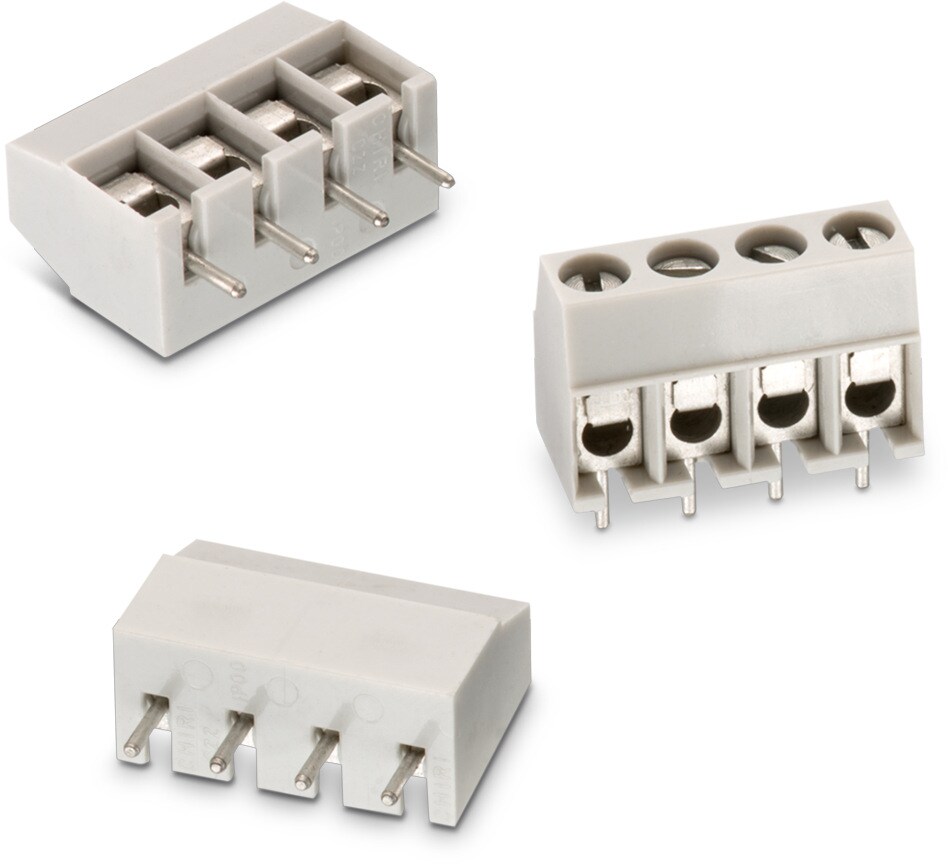

| Kind Properties | |
|---|---|
| Pitch | 5 mm |
| Material Properties | |
|---|---|
| Insulator Material | PC |
| Insulator Flammability Rating | UL94 V-0 |
| Insulator Color | Grey |
| Contact Material | Copper Alloy |
| Contact Plating | Nickel over Tin |
| Terminal Screw Material | Steel |
| Terminal Screw Plating | Zinc |
| Wire Guard Material | Copper Alloy |
| General Information | |
|---|---|
| Operating Temperature | -30 up to +120 °C |
| Compliance | Lead free / RoHS |
| Electrical Properties | |
|---|---|
| IR UL | 16 A |
| IR VDE | 24 A |
| Working Voltage [UL] | 300 V (AC) |
| Working Voltage [VDE] | 450 V (AC) |
| Withstanding Voltage [UL] | 1600 V (AC) |
| Withstanding Voltage [cULus] | 1600 V (AC) |
| Withstanding Voltage [VDE] | 2500 V (AC) |
| Contact Resistance [UL] | 20 mΩ |
| Contact Resistance [cULus] | 20 mΩ |
| Contact Resistance [VDE] | 20 mΩ |
| Mechanical Properties | |
|---|---|
| Wire Strip Length | 7 (mm) |
| Screw | M3 |
| Certification | |
|---|---|
| cULus Approval | E150931 |
| UL Approval | E150931 CAT N: CZZ (1) |
| VDE Approval | 40021362 |
| VDE Approval | 40021377 TYPE: CZZ |
| Packaging Properties | |
|---|---|
| Packaging | Box |
Products
| Order Code | SPEC | Downloads | Application | PCB/Cable/Panel | Modularity | Type | Pins | Wire Section | Samples |
|---|---|---|---|---|---|---|---|---|---|
| 691136710004 |
|
IGE STE 3D ALT EAG | Pressure Clamp | PCB | No | Horizontal | 4 | 30 to 14 (AWG) 0.05 to 2.08 (mm²) | |
| 691136710005 |
|
IGE STE 3D ALT EAG | Pressure Clamp | PCB | No | Horizontal | 5 | 30 to 14 (AWG) 0.05 to 2.08 (mm²) | |
| 691136710006 |
|
IGE STE 3D ALT EAG | Pressure Clamp | PCB | No | Horizontal | 6 | 30 to 14 (AWG) 0.05 to 2.08 (mm²) | |
| 691136710007 |
|
IGE STE 3D ALT EAG | Pressure Clamp | PCB | No | Horizontal | 7 | 30 to 14 (AWG) 0.05 to 2.08 (mm²) | |
| 691136710008 |
|
IGE STE 3D ALT EAG | Pressure Clamp | PCB | No | Horizontal | 8 | 30 to 14 (AWG) 0.05 to 2.08 (mm²) | |
| 691136710009 |
|
IGE STE 3D ALT EAG | Pressure Clamp | PCB | No | Horizontal | 9 | 30 to 14 (AWG) 0.05 to 2.08 (mm²) | |
| 691136710010 |
|
IGE STE 3D ALT EAG | Pressure Clamp | PCB | No | Horizontal | 10 | 30 to 14 (AWG) 0.05 to 2.08 (mm²) |
| Order Code | SPEC |
|---|---|
| 691136710004 |
|
| 691136710005 |
|
| 691136710006 |
|
| 691136710007 |
|
| 691136710008 |
|
| 691136710009 |
|
| 691136710010 |
|
| Samples |
|---|
| Order Code | SPEC | Downloads | Application | PCB/Cable/Panel | Modularity | Type | Pins | Wire Section | Samples |
|---|
