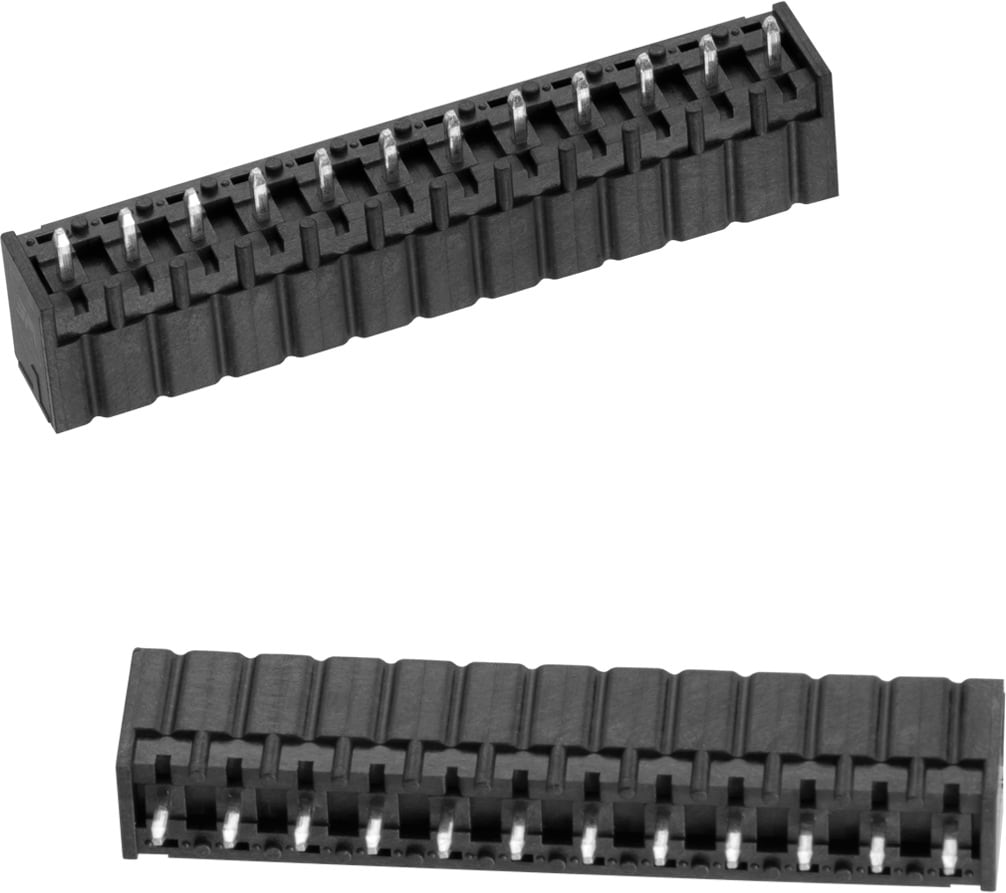

WR-TBL Serie 7013B - 3.81 mm Vertical PCB Header THR Type

Kind Properties
Pitch 3.81 mm
Material Properties
Insulator Material LCP
Insulator Flammability Rating UL94 V-0
Contact Material Brass
Contact Plating Tin
General Information
Operating Temperature -40 up to +105 °C
Compliance RoHS
Electrical Properties
IR cULus 10 A
Working Voltage [cULus] 300 V (AC)
Withstanding Voltage [cULus] 2500 V (AC)
Contact Resistance [cULus] 20 mΩ
Certification
cULus Approval E315414

Products

Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Design Kit Samples
691701310002B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 2 691001
691701310003B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 3 612690
691701310004B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 4
691701310005B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 5
691701310006B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 6
691701310007B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 7
691701310008B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 8
691701310009B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 9
691701310010B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 10
691701310011B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 11
691701310012B
STE 3D ALT EAG IGS CAD Pluggable PCB No Vertical 12
Order Code SPEC
691701310002B
691701310003B
691701310004B
691701310005B
691701310006B
691701310007B
691701310008B
691701310009B
691701310010B
691701310011B
691701310012B
Samples
Order Code SPEC Downloads Application PCB/Cable/Panel Modularity Type Pins Design Kit Samples
